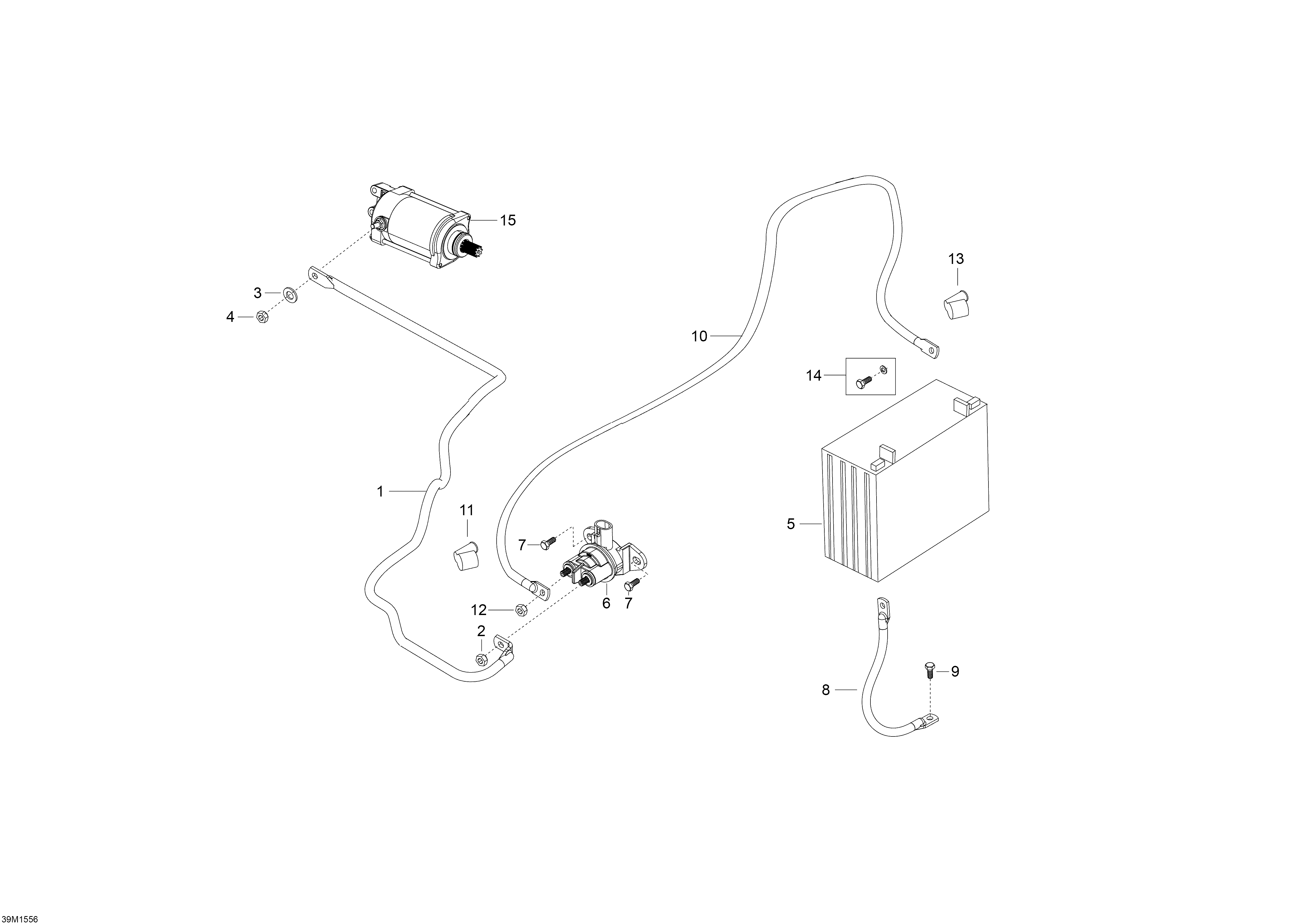

10- Battery And Starter _39M1556 для BRP Ski-Doo Expedition LE 900 ACE - 2015
-
№АртикулНазвание
-
1515176945 Battery WireBattery Wire
-
2232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
3234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5415129898 Lead Battery 18 AmperesLead Battery 18 Amperes
-
6278003012 Starter RelayStarter Relay
-
7207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8515176777 Ground WireGround Wire
-
9207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10515176778 Battery WireBattery Wire
-
11570151000 Protection CapProtection Cap
-
12232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
13710000495 Protector CapProtector Cap
-
14250000282 Battery Bolt KitBattery Bolt Kit
-
15420892429 Starter Ass'yStarter Ass'y
