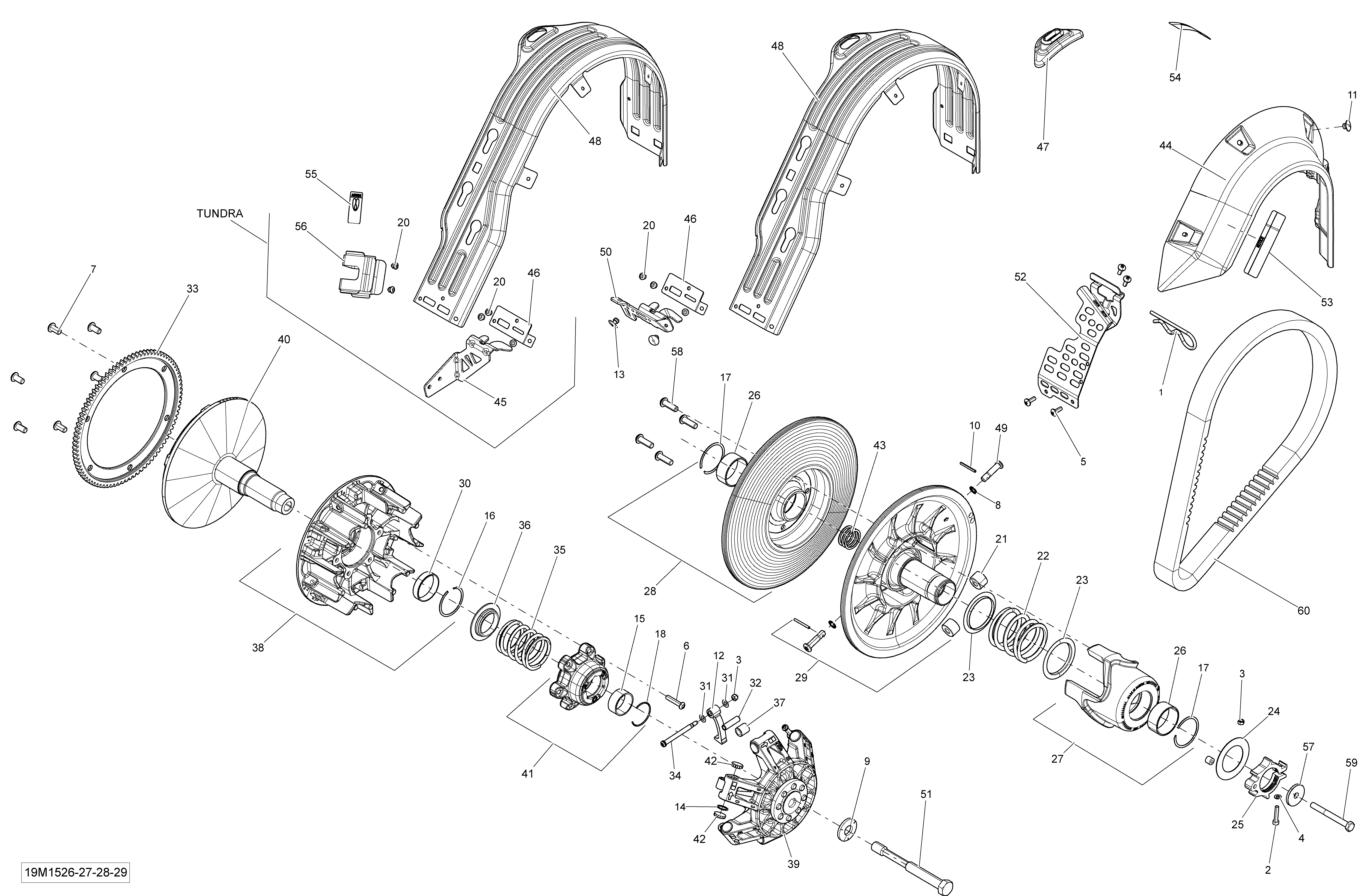

05- Pulley System _19M1526 для BRP Ski-Doo Expedition Sport 550F XP154 - 2015
-
№АртикулНазвание
-
1114045200 Hair PinHair Pin
-
2205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
3232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
4234051410 Flat Washer M5Flat Washer M5
-
5250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
6250000580 Torx Screw M6 X 30Torx Screw M6 X 30
-
7250000706 Torx Button Head Screw M8 X 16Torx Button Head Screw M8 X 16
-
8250200009 Lock Washer 8 mmLock Washer 8 mm
-
9250200144 Conical Spring Washer M14Conical Spring Washer M14
-
10250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
11293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
12417223604 Ramp 700 Ass'yRamp 700 Ass'y
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14293300169 O RingO Ring
-
15293350079 Journal BearingJournal Bearing
-
16293370037 CirclipCirclip
-
17293370049 CirclipCirclip
-
18293370065 CirclipCirclip
-
20390909200 Avex RivetAvex Rivet
-
21417127016 RollerRoller
-
22417127061 SpringSpring
-
23417127116 Swivel AbutmentSwivel Abutment
-
24417127155 WasherWasher
-
25415129604 Calibration Ass'yCalibration Ass'y
-
26417127318 BushingBushing
-
27417127367 Cam Ass'yCam Ass'y
-
28417127366 Slider Flange Ass'ySlider Flange Ass'y
-
29417127392 Fixe Flange Ass'yFixe Flange Ass'y
-
30417222758 BushingBushing
-
31417223255 Thrust WasherThrust Washer
-
32417223257 Roller AxleRoller Axle
-
33417223476 Crown Gear LaunchCrown Gear Launch
-
34417223694 Ramp AxleRamp Axle
-
35417223748 Spring ClutchSpring Clutch
-
36417223752 Seat SpringSeat Spring
-
37417223767 RollerRoller
-
38417223855 Mobile Flange Ass'yMobile Flange Ass'y
-
39417223865 Governor Cup Ass'yGovernor Cup Ass'y
-
40417223870 Fix Flange Ass'yFix Flange Ass'y
-
41417223907 Spring Cover Ass'ySpring Cover Ass'y
-
42417223919 Slider ShoeSlider Shoe
-
43417300265 SpacerSpacer
-
44417300356 Side ProtectorSide Protector
-
46417300380 ReinforcementReinforcement
-
47417300381 GuideGuide
-
48417300382 Belt GuardBelt Guard
-
49417127294 Pivot StudPivot Stud
-
50417300386 Front Belt Guard BracketFront Belt Guard Bracket
-
51417300432 Pulley Drive BoltPulley Drive Bolt
-
52417300448 Belt Guard BracketBelt Guard Bracket
-
53516005503 Decal, EnglishDecal, English
-
54516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
57517302322 Strength WasherStrength Washer
-
58250000707 Hex. Button Head Screw M8 X 25Hex. Button Head Screw M8 X 25
-
59207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
60417300127 Drive BeltDrive Belt
