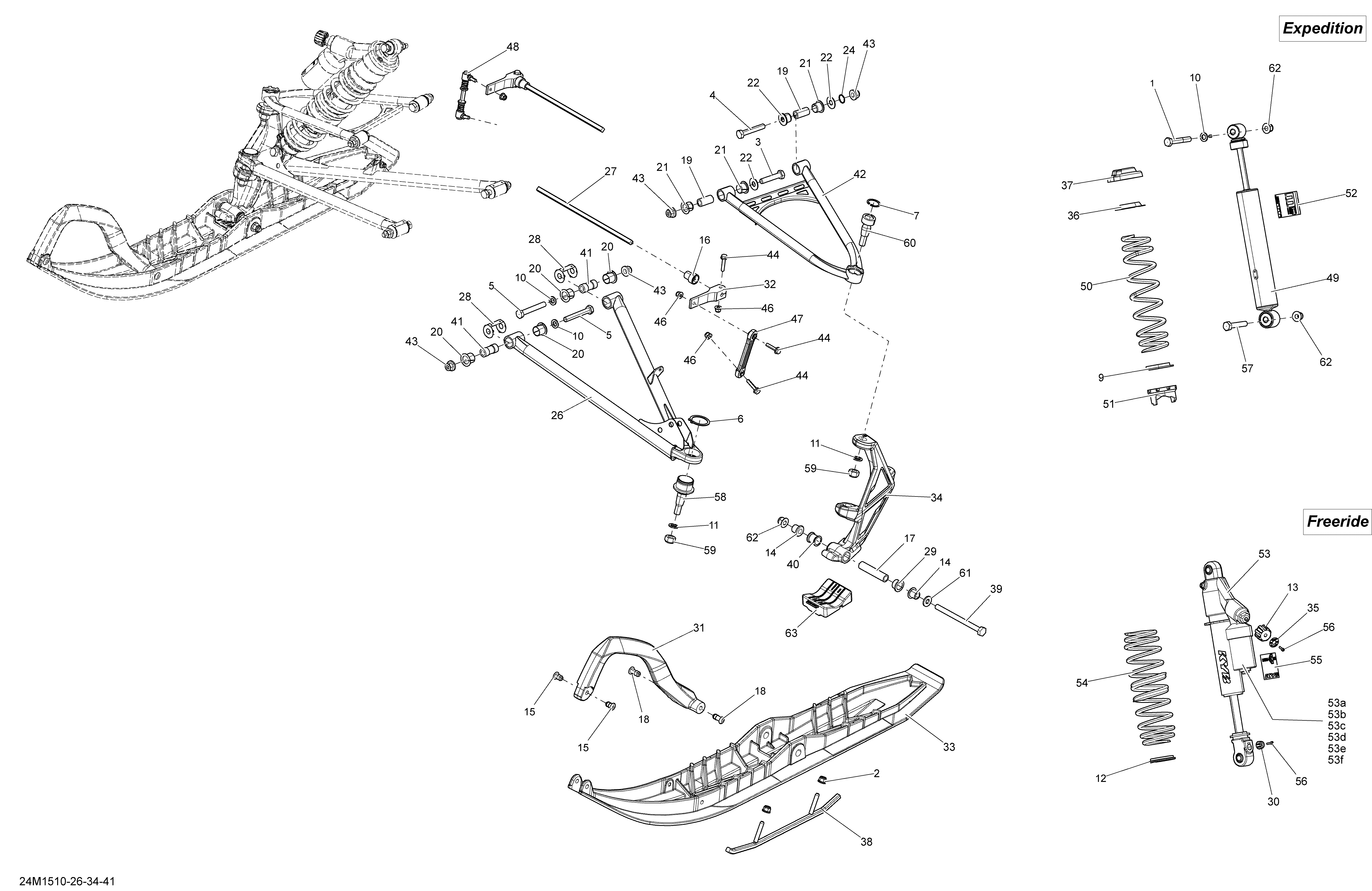

07- Front Suspension And Ski _24M1526 для BRP Ski-Doo Expedition Sport 550F XP154 - 2015
-
№АртикулНазвание
-
1207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
2233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
4250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
5250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
6293370035 CirclipCirclip
-
7293370070 CirclipCirclip
-
9503187500 Spring GuideSpring Guide
-
10503189564 WasherWasher
-
11503192491 WasherWasher
-
14505071781 CushionCushion
-
15505071812 RetainerRetainer
-
16505072064 BushingBushing
-
17506133300 SpacerSpacer
-
18505072133 RetainerRetainer
-
19505072143 BushingBushing
-
20505072208 BushingBushing
-
21505072250 BushingBushing
-
22505072392 WasherWasher
-
24505072448 O-RingO-Ring
-
26505072497 Black RH Lower ArmBlack RH Lower Arm
-
26505072498 Black LH Lower ArmBlack LH Lower Arm
-
27505072602 StabilisatorStabilisator
-
28505072634 Wear PlateWear Plate
-
29505072690 Leg CushionLeg Cushion
-
31505072976 Black HandleBlack Handle
-
32505072394 Stabilisator LeverStabilisator Lever
-
33505073227 Black DS Ski 2Black DS Ski 2
-
34505073559 White LH Ski LegWhite LH Ski Leg
-
34505073560 White RH Ski LegWhite RH Ski Leg
-
37706200881 Spring StopperSpring Stopper
-
38860201044 Carbide Runner KitCarbide Runner Kit
-
39250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
40503193651 SpacerSpacer
-
41505072209 BushingBushing
-
42505073468 LH Upper Arm 39''LH Upper Arm 39''
-
42505073469 RH Upper Arm 39''RH Upper Arm 39''
-
43250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
44207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
46233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
47505072204 Double Ball Joint LinkDouble Ball Joint Link
-
49505073181 Front ShockFront Shock
-
50505072897 Full Moon SpringFull Moon Spring
-
51505073625 Adjustement CamAdjustement Cam
-
52516005535 Shock Decal, McShock Decal, Mc
-
57207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
58505072682 Lower Ball JointLower Ball Joint
-
59232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
60505072913 Upper Ball JointUpper Ball Joint
-
61503192496 WasherWasher
-
62233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
63505072594 Ski StopperSki Stopper
