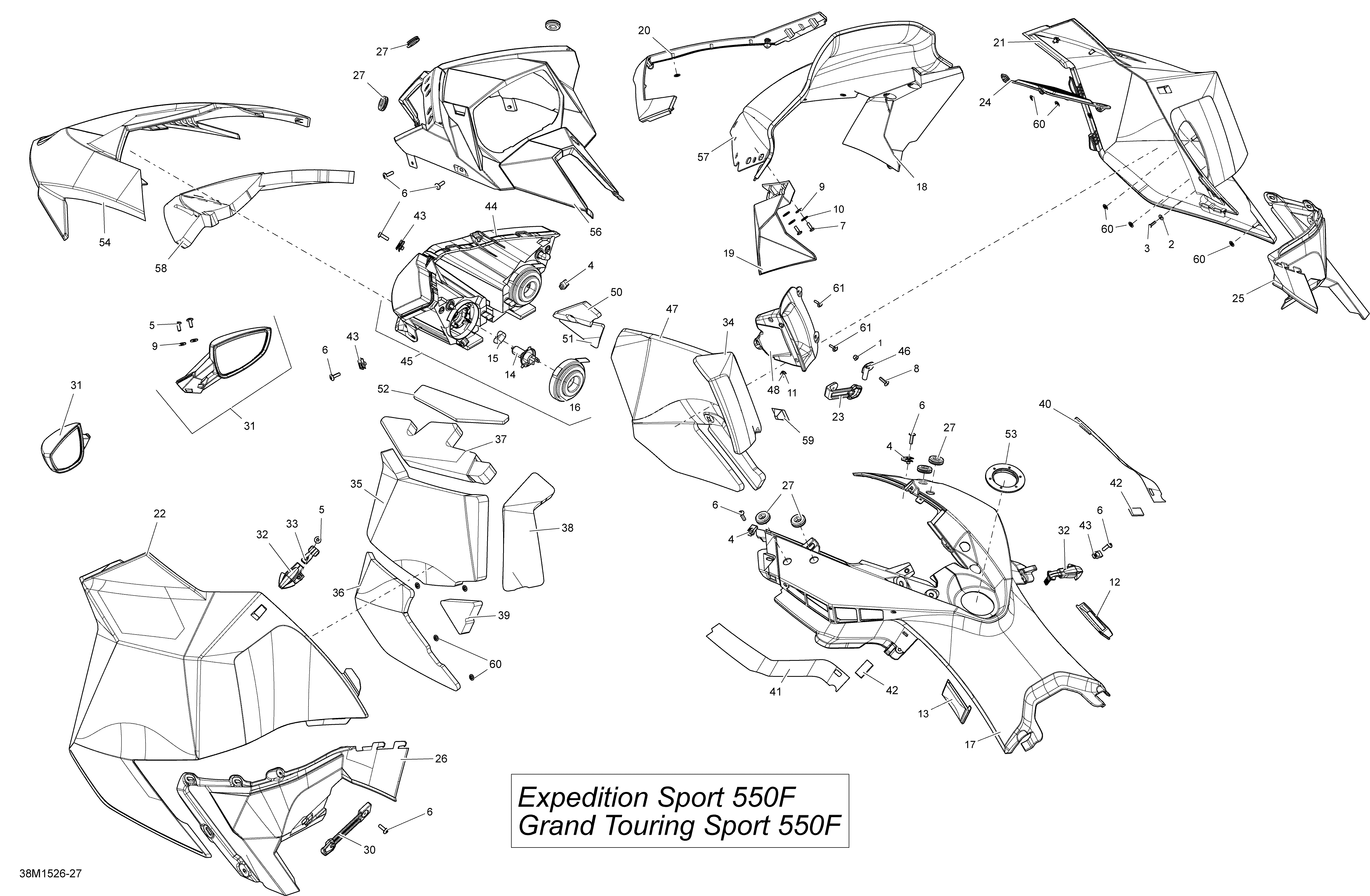

09- Hood _38M1526 для BRP Ski-Doo Expedition Sport 550F XP154 - 2015
-
№АртикулНазвание
-
1233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
2234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
3241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
4250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
5250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
6250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
7250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
8250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
9250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
10250200025 Washer M5Washer M5
-
11275500241 Black CapBlack Cap
-
12513033471 RH Panel ClipRH Panel Clip
-
13513033472 LH Panel ClipLH Panel Clip
-
14515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
15515176498 CapCap
-
16515176499 CoverCover
-
17517305274 White ConsoleWhite Console
-
18517303604 RH Air DeflectorRH Air Deflector
-
19517303605 LH Air DeflectorLH Air Deflector
-
20517303607 Windshield SupportWindshield Support
-
21517304029 Deep Black RH PanelDeep Black RH Panel
-
22517304030 Deep Black LH PanelDeep Black LH Panel
-
23517303612 RH Panel LatchRH Panel Latch
-
24517303622 GrillGrill
-
25517303671 Deep Black RH Moulding PanelDeep Black RH Moulding Panel
-
26517303673 Deep Black LH Moulding PanelDeep Black LH Moulding Panel
-
27517303756 GrommetGrommet
-
30517303808 LH Panel LatchLH Panel Latch
-
32860200239 Black Latch KitBlack Latch Kit
-
33517303981 Panel LatchPanel Latch
-
34517304884 RH Panel Rear FoamRH Panel Rear Foam
-
35517304887 LH Panel Center FoamLH Panel Center Foam
-
36517304888 LH Panel Lower FoamLH Panel Lower Foam
-
37517304889 LH Panel Upper FoamLH Panel Upper Foam
-
38517304890 LH Panel Rear FoamLH Panel Rear Foam
-
39517304891 FoamFoam
-
40517304103 RH DecalRH Decal
-
41517304104 LH DecalLH Decal
-
42517304105 Console DecalConsole Decal
-
43250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
44517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
45517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
46517304221 Latch SupportLatch Support
-
47517304883 RH Center FoamRH Center Foam
-
48517304322 Black RH ConsoleBlack RH Console
-
50517304885 FoamFoam
-
51517304886 FoamFoam
-
52517304882 FoamFoam
-
53517304518 Console NutConsole Nut
-
54517304492 White HoodWhite Hood
-
56517304578 Gauge SupportGauge Support
-
57517304766 Windshield 450Windshield 450
-
58517304913 Hood FoamHood Foam
-
59517305451 Heat ShieldHeat Shield
-
60732610072 Push NutPush Nut
-
61250000725 Screw M4 X 16Screw M4 X 16
