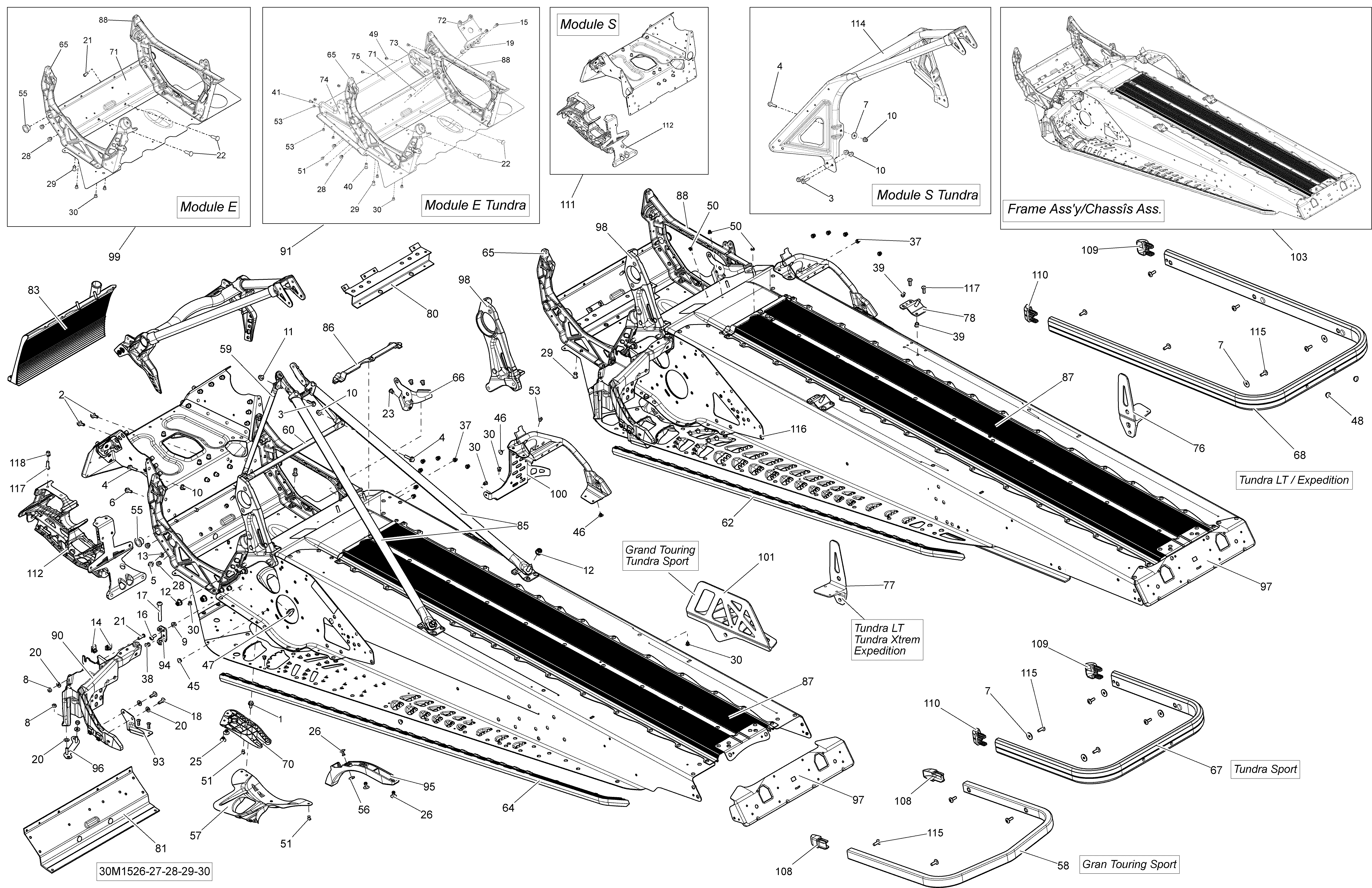

09- Frame _30M1526 для BRP Ski-Doo Expedition Sport 550F XP154 - 2015
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
8232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
9233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
12233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
16250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
17250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
18250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
20250200039 Flat WasherFlat Washer
-
21250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
22250300038 Clinch StudClinch Stud
-
23293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
28293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
29293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
30293150144 Stavex RivetStavex Rivet
-
37293150146 Henrob RivetHenrob Rivet
-
38293150147 Hemlock RivetHemlock Rivet
-
39293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
40293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
41293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
45293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
46293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
47293730052 Black PlugBlack Plug
-
48293730059 Full Moon Dart 10 mmFull Moon Dart 10 mm
-
50390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
51390909100 Avex RivetAvex Rivet
-
53390909200 Avex RivetAvex Rivet
-
55505073317 Leg CushionLeg Cushion
-
57518324874 RH ReinforcementRH Reinforcement
-
57518324875 LH ReinforcementLH Reinforcement
-
59518325114 Upper Column SupportUpper Column Support
-
60518325115 Center Column SupportCenter Column Support
-
62518325159 RH RollerRH Roller
-
62518325160 LH RollerLH Roller
-
65518325558 LH MemberLH Member
-
66518325559 RH Engine SupportRH Engine Support
-
68518325579 Clear Rear BumperClear Rear Bumper
-
70518325782 RH DeflectorRH Deflector
-
70518325783 LH DeflectorLH Deflector
-
71518325818 Front MemberFront Member
-
76518325955 RH Slide BracketRH Slide Bracket
-
77518325956 LH Slide BracketLH Slide Bracket
-
78518325973 RH Rear BaseRH Rear Base
-
78518325974 LH Rear BaseLH Rear Base
-
80518326120 Engine SupportEngine Support
-
85518326559 Rear MemberRear Member
-
86518326656 SealSeal
-
88518326795 RH MemberRH Member
-
90518326820 LH StirupLH Stirup
-
93518326960 SupportSupport
-
94518326961 U-AttachU-Attach
-
96518326986 AttachAttach
-
97518327105 Rear CapRear Cap
-
98518328346 Pulley SupportPulley Support
-
99518327568 E ModuleE Module
-
100518327863 RH StirupRH Stirup
-
103415129878 Frame Ass'yFrame Ass'y
-
109520000711 Full Moon RH CapFull Moon RH Cap
-
110520000712 Full Moon LH CapFull Moon LH Cap
-
111518328327 Cross Member S ModuleCross Member S Module
-
112518327487 Front Suspension Support. Included With 518328320 S ModuleFront Suspension Support. Included With 518328320 S Module
-
115250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
116293150144 Stavex RivetStavex Rivet
-
117207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
118233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
