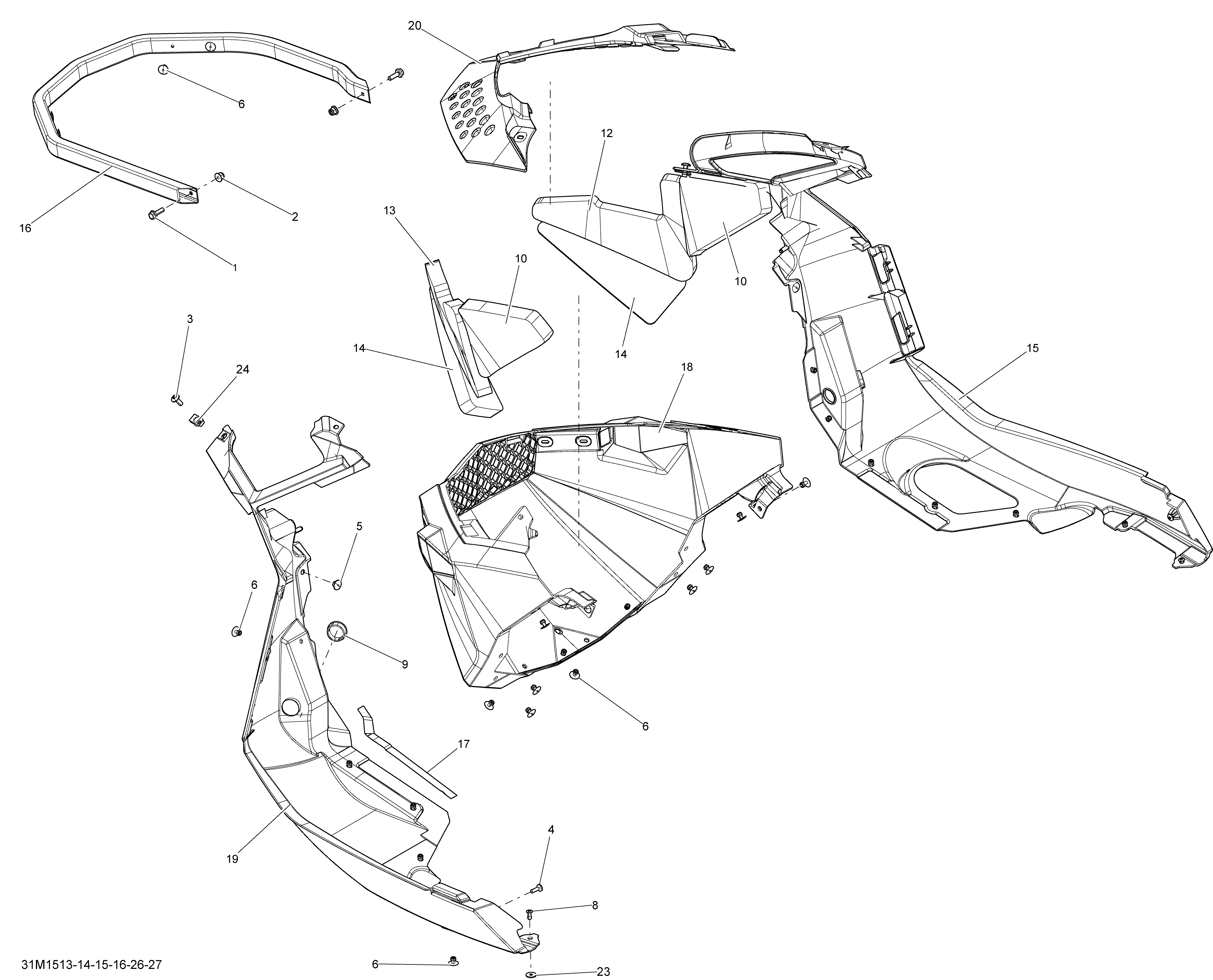

09- Bottom Pan _31M1526 для BRP Ski-Doo Expedition Sport 550F XP154 - 2015
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
4250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
5293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
6293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
8390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
9414916600 Nylon CapNylon Cap
-
10502007210 RH Foam UpperRH Foam Upper
-
10502007211 LH Foam UpperLH Foam Upper
-
12502007212 RH Middle FoamRH Middle Foam
-
13502007213 LH Middle FoamLH Middle Foam
-
14502007214 RH Lower FoamRH Lower Foam
-
14502007215 LH Lower FoamLH Lower Foam
-
15502006914 RH Bottom PanRH Bottom Pan
-
16502006944 Front BumperFront Bumper
-
17293250087 Gasket, NeopreneGasket, Neoprene
-
18502006971 Black Front Bottom PanBlack Front Bottom Pan
-
19502007051 LH Bottom PanLH Bottom Pan
-
20502007068 Deep Black Bottom Pan CapDeep Black Bottom Pan Cap
-
23517124300 WasherWasher
-
24250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
