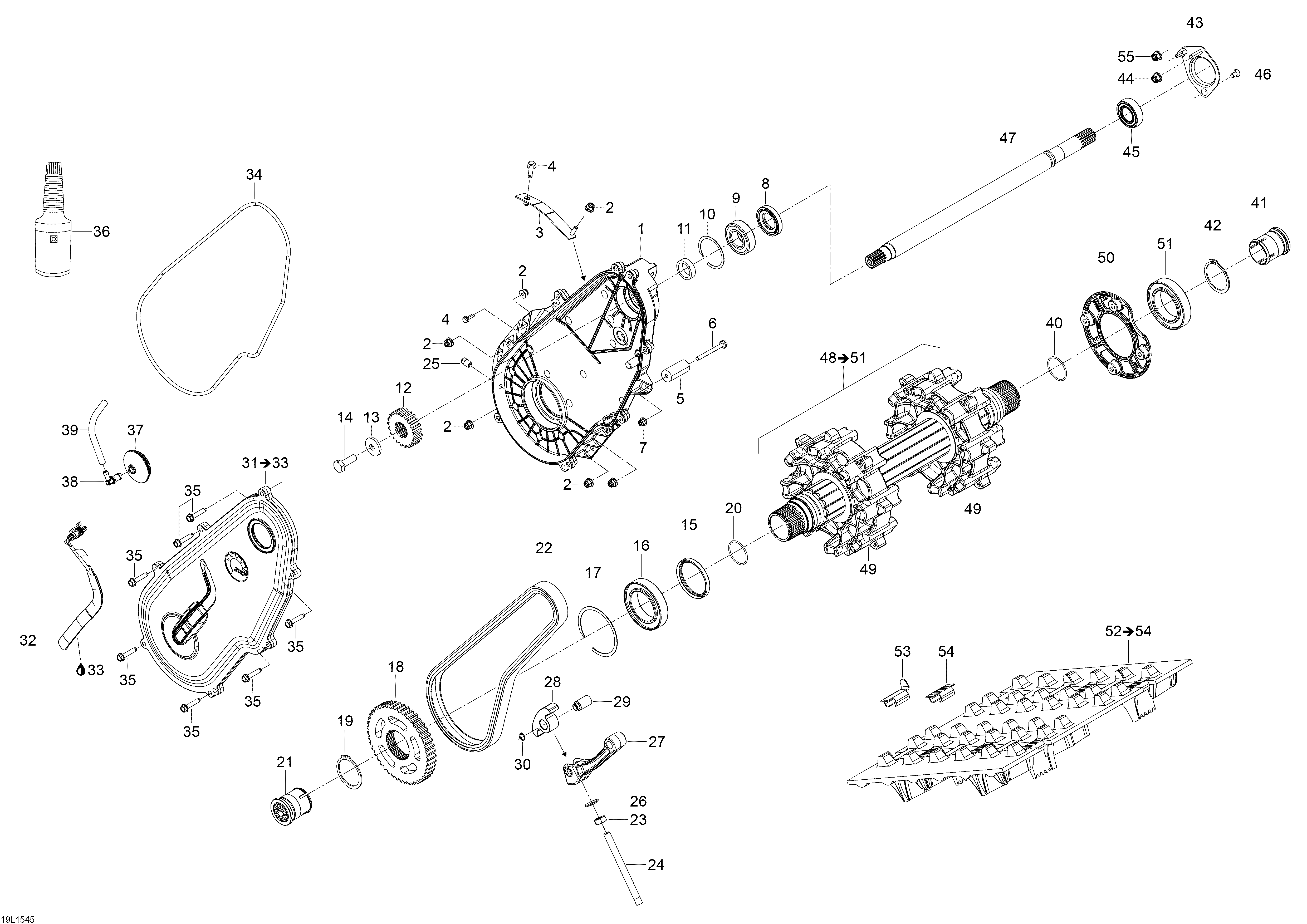

05- Drive System _19M1545 для BRP Ski-Doo Tundra WT 550 RER - 2015
-
№АртикулНазвание
-
1504153181 ChaincaseChaincase
-
2233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3518328101 Chaincase Counter PlateChaincase Counter Plate
-
4207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
5518327966 SleeveSleeve
-
6207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
7233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
8293250175 Oil SealOil Seal
-
9293350055 Ball BearingBall Bearing
-
10504152576 CirclipCirclip
-
11504152628 ShimShim
-
12504152030 Sprocket, 19 TeethSprocket, 19 Teeth
-
13504152784 Spring Washer M10Spring Washer M10
-
14207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
15504152571 SealSeal
-
16293350059 Ball BearingBall Bearing
-
17504152582 CirclipCirclip
-
18504152581 Sprocket, 49 TeethSprocket, 49 Teeth
-
19504152572 CirclipCirclip
-
20293300122 O-RingO-Ring
-
21504152619 Magnetic CapMagnetic Cap
-
22504152629 Drive Chain, 104 LinksDrive Chain, 104 Links
-
23232006414 Hex. Nut M10Hex. Nut M10
-
24504152602 Adjustment ScrewAdjustment Screw
-
25504152636 Magnetic PlugMagnetic Plug
-
26293200128 Seal RingSeal Ring
-
27504152685 Chain TensionerChain Tensioner
-
28504152739 Slider ChainSlider Chain
-
29504152841 Tensionner AxleTensionner Axle
-
30504152282 CirclipCirclip
-
31504153147 Chaincase Cover Ass'y. Includes 31 To 33Chaincase Cover Ass'y. Includes 31 To 33
-
32504152896 SensorSensor
-
34293300130 O-RingO-Ring
-
35250000811 Hex. HD Forming Screw M6 x 30Hex. HD Forming Screw M6 x 30
-
37504152860 CapCap
-
38414580700 Male ConnectorMale Connector
-
39415080200 Hose, PolyurethaneHose, Polyurethane
-
40293300122 O-RingO-Ring
-
41504152619 Magnetic CapMagnetic Cap
-
42504152572 CirclipCirclip
-
43504153187 Bearing HousingBearing Housing
-
44233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
45293350074 Ball BearingBall Bearing
-
46235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
47504153212 Counter ShaftCounter Shaft
-
48504153240 Drive Axle Ass'y. Includes 48 To 51Drive Axle Ass'y. Includes 48 To 51
-
50504152949 Housing BearingHousing Bearing
-
51293350059 Ball BearingBall Bearing
-
52504152817 Track Ass'y. Includes 52 To 54Track Ass'y. Includes 52 To 54
-
55233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
