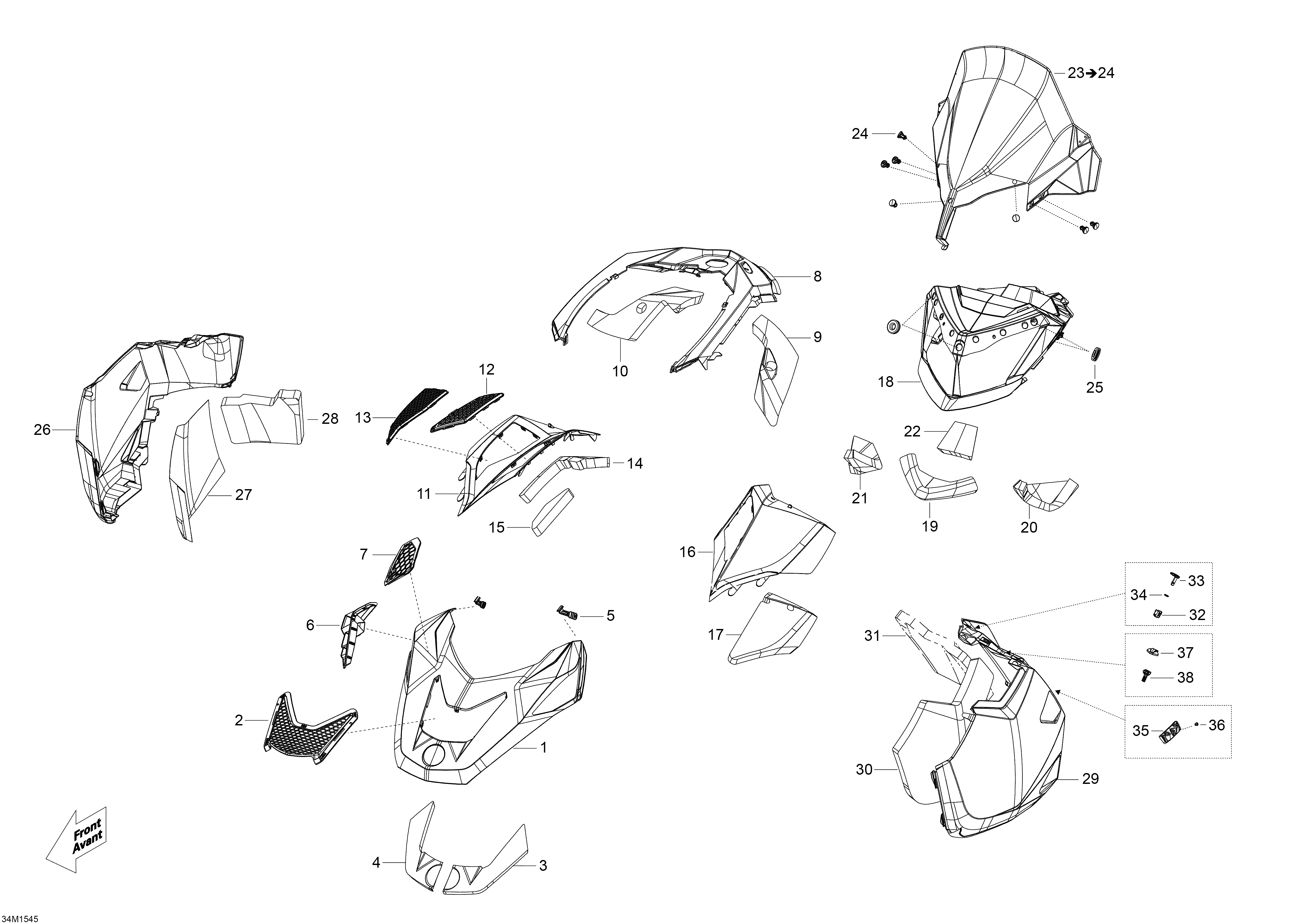

09- Hood _34M1545 для BRP Ski-Doo Tundra WT 550 RER - 2015
-
№АртикулНазвание
-
1517305521 Yellow HoodYellow Hood
-
2517304843 Hood GrillHood Grill
-
3517304330 Insulator LHInsulator LH
-
4517304214 Insulator RHInsulator RH
-
5517304289 Latch PannelLatch Pannel
-
6517304855 Intake GrillIntake Grill
-
7517304584 Intake GrillIntake Grill
-
8517304827 ConsoleConsole
-
9517305644 InsulatorInsulator
-
10517304318 InsulatorInsulator
-
11517305525 Yellow Side Access Panel RHYellow Side Access Panel RH
-
12517304015 RH Access Panel GrillRH Access Panel Grill
-
13517304016 RH Lower Acces GrillRH Lower Acces Grill
-
14517304311 InsulatorInsulator
-
15517304312 InsulatorInsulator
-
16517305527 Yellow Side Access Panel LHYellow Side Access Panel LH
-
17517304313 InsulatorInsulator
-
18517304002 Gauge SupportGauge Support
-
19517304314 InsulatorInsulator
-
20517304315 InsulatorInsulator
-
21517304316 InsulatorInsulator
-
22517304319 InsulatorInsulator
-
23860201000 Windshield Ass'y. Includes 23 To 24Windshield Ass'y. Includes 23 To 24
-
24517304744 ButtonButton
-
25517303756 GrommetGrommet
-
26517304328 Black Side Panel-RhBlack Side Panel-Rh
-
27517304709 Foam RightFoam Right
-
28517304310 RH Rear FoamRH Rear Foam
-
29517304329 Black Side Panel-LHBlack Side Panel-LH
-
30517304707 Foam LHFoam LH
-
31517304309 LH Rear FoamLH Rear Foam
-
32517304297 Handle Fastener Quarter-TurnHandle Fastener Quarter-Turn
-
33517304296 Quarter-Turn HandleQuarter-Turn Handle
-
34517304538 Locking PlateLocking Plate
-
35517304497 Side Panel SupportSide Panel Support
-
36293150211 RivetRivet
-
37860200239 Black Latch KitBlack Latch Kit
-
38517304573 Latch-PanelLatch-Panel
