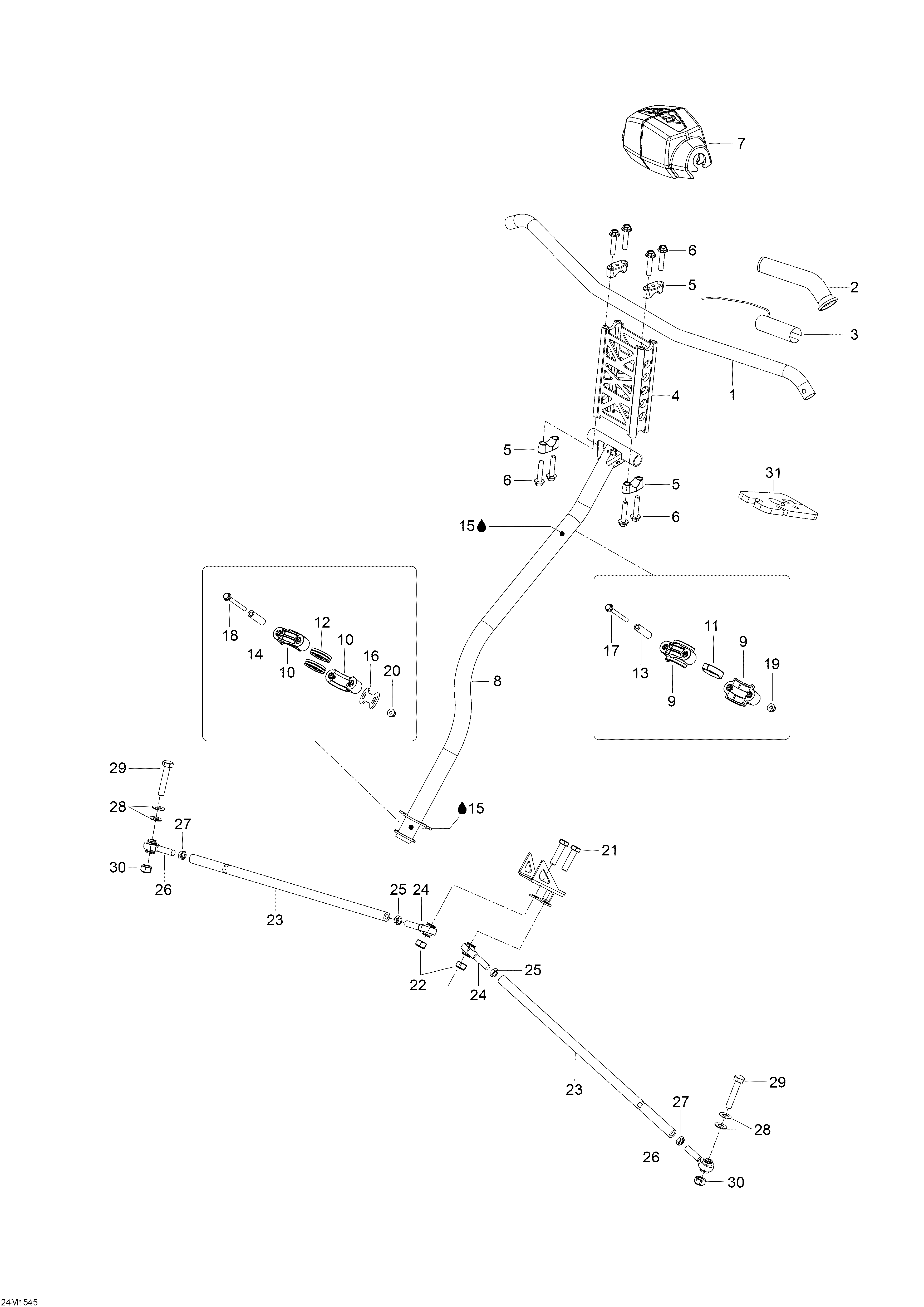

07- Steering _24M1545 для BRP Ski-Doo Tundra WT 550 RER - 2015
-
№АртикулНазвание
-
1506152722 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152467 Heating ElementHeating Element
-
4860200821 Extension KitExtension Kit
-
5506152750 Steering SupportSteering Support
-
6250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
7506152541 Steering PadSteering Pad
-
8506152586 Black Main TubeBlack Main Tube
-
9506152508 Upper Half-HousingUpper Half-Housing
-
10506152217 Lower Half-HousingLower Half-Housing
-
11506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
12506152518 Lower Vibration RingLower Vibration Ring
-
13506152297 Housing BushingHousing Bushing
-
14506152388 Lower Housing BushingLower Housing Bushing
-
16506152389 Stopper PlateStopper Plate
-
17207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
18207686544 Hex. Flanged Screw, M8 X 65Hex. Flanged Screw, M8 X 65
-
19233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
20233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
21207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
22232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
23506152436 Tie RodTie Rod
-
24506152081 LH Thread Ball JointLH Thread Ball Joint
-
25250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
26506152019 RH Thread Ball JointRH Thread Ball Joint
-
27732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
28506152194 WasherWasher
-
29207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
30232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
31506152404 CushionCushion
