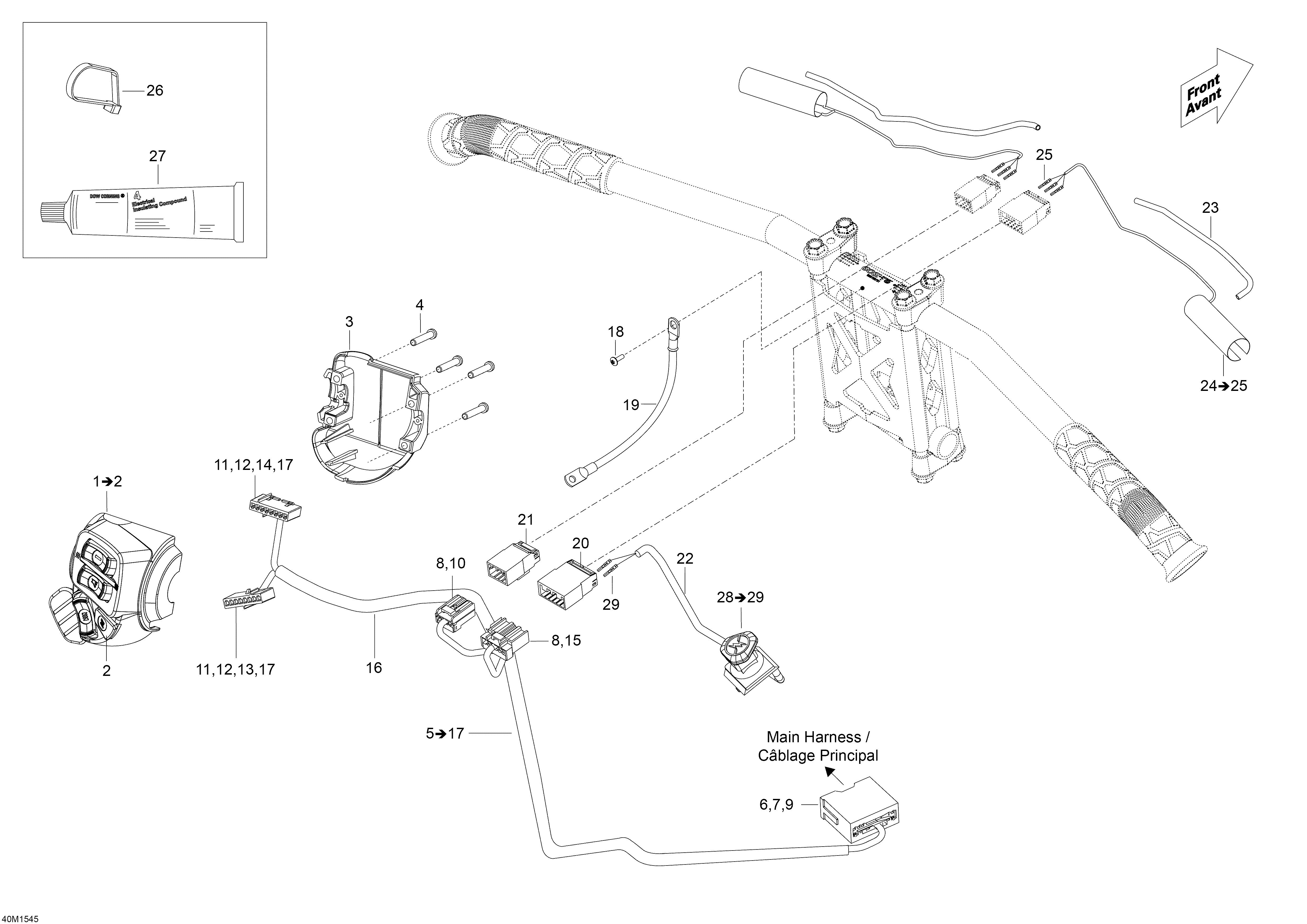

10- Steering Wiring Harness _40M1545 для BRP Ski-Doo Tundra WT 550 RER - 2015
-
№АртикулНазвание
-
1515177021 LH Housing. Includes 1 To 2LH Housing. Includes 1 To 2
-
2515176088 Start/RER ButtonStart/RER Button
-
3515175926 Housing Switch PlateHousing Switch Plate
-
4250000263 Torx Screw #8-18Torx Screw #8-18
-
5515176995 Steering Wiring Harness Ass'y. Includes 5 To 17Steering Wiring Harness Ass'y. Includes 5 To 17
-
6515175232 Male TerminalMale Terminal
-
7515175273 Male TerminalMale Terminal
-
8515175231 Female TerminalFemale Terminal
-
9515175352 Male Terminal Housing, 13 CircuitsMale Terminal Housing, 13 Circuits
-
10515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
11515175808 Female TerminalFemale Terminal
-
12515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
13515175807 Female Terminal Housing 8 Circuits BlackFemale Terminal Housing 8 Circuits Black
-
14515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
15515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
16515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
17515175941 Female TerminalFemale Terminal
-
18250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
19515177668 Ground CableGround Cable
-
20515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
21515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
22515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
23515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
24506152467 Heating Element. Includes 24 To 25Heating Element. Includes 24 To 25
-
25515175232 Male TerminalMale Terminal
-
26414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
28515177362 Kill Switch. Includes 28 To 29Kill Switch. Includes 28 To 29
-
29515175232 Male TerminalMale Terminal
