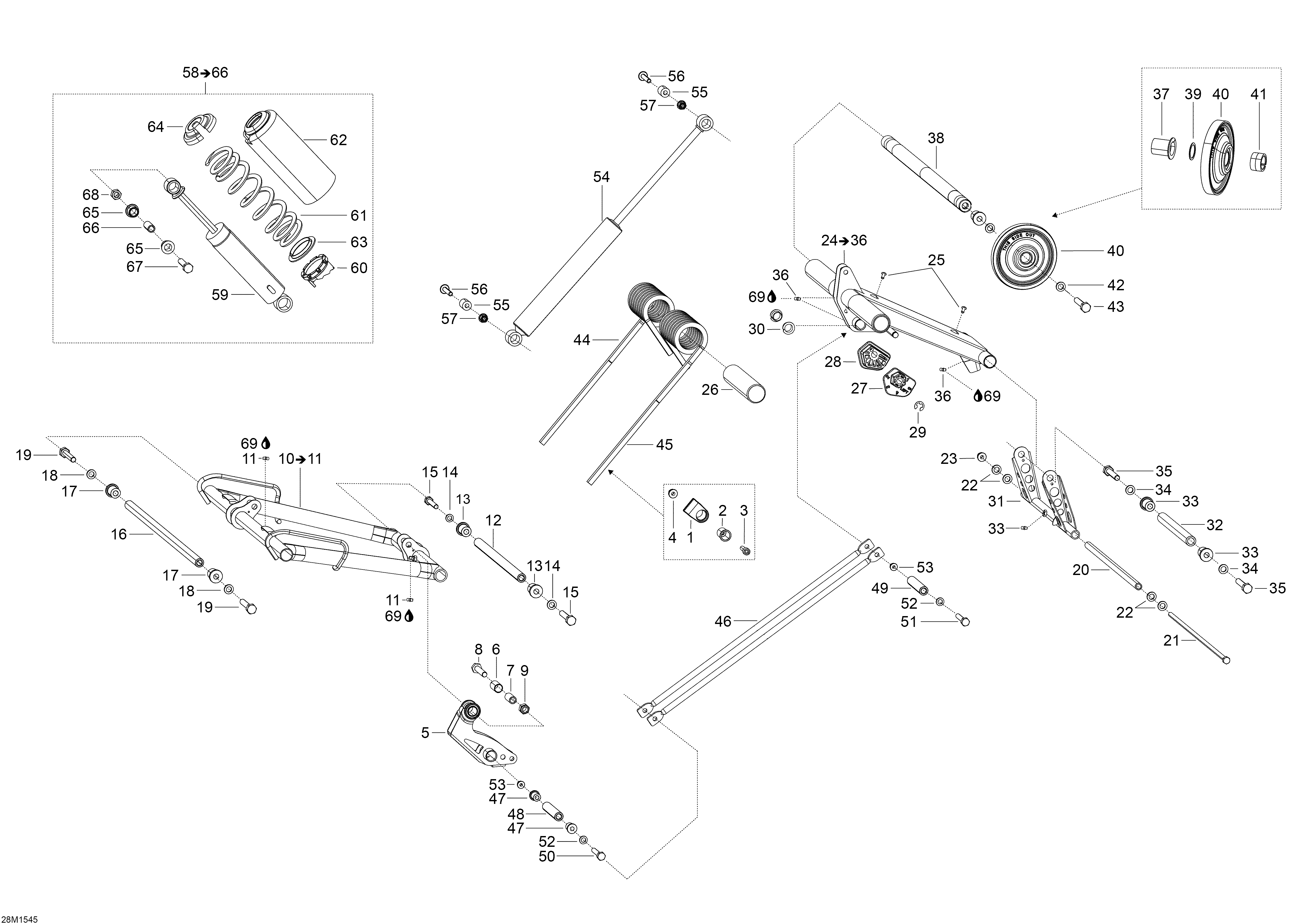

08- Rear Suspension B _28M1545 для BRP Ski-Doo Tundra WT 550 RER - 2015
-
№АртикулНазвание
-
1503191183 Spring SupportSpring Support
-
2503190754 Retainer CushionRetainer Cushion
-
3205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5503192211 RockerRocker
-
6503193037 BushingBushing
-
7503189282 BushingBushing
-
8207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
9233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
10503193274 Front arm assy. Includes 10 To 11Front arm assy. Includes 10 To 11
-
11408200700 Grease FittingGrease Fitting
-
12503191390 Lower ShaftLower Shaft
-
13503189324 CushionCushion
-
14503192496 WasherWasher
-
15250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
16503191391 Upper ShaftUpper Shaft
-
17503189324 CushionCushion
-
18503189564 WasherWasher
-
19250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
20503191396 Axle PivotAxle Pivot
-
21503191397 Bolt 369mmBolt 369mm
-
22503189157 WasherWasher
-
23233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24503191709 Rear Arm Ass'y. Includes 24 To 36Rear Arm Ass'y. Includes 24 To 36
-
25414644300 DartDart
-
27503191565 LH Cam AdjusterLH Cam Adjuster
-
28503191566 RH Cam AdjusterRH Cam Adjuster
-
29293370013 E-CirclipE-Circlip
-
30503191555 Swivel BushingSwivel Bushing
-
31503191393 Welded Arm PivotWelded Arm Pivot
-
32503192330 Lower ShaftLower Shaft
-
33503191640 CushionCushion
-
34503189148 WasherWasher
-
35205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
36408200700 Grease FittingGrease Fitting
-
37503191451 CushionCushion
-
38503191405 Upper ShaftUpper Shaft
-
39503190328 WasherWasher
-
40503191738 Black Wheel Ass'y, 155 mmBlack Wheel Ass'y, 155 mm
-
41503191099 Retaining RingRetaining Ring
-
42503192491 WasherWasher
-
43250000484 Socket Screw M12 X 35Socket Screw M12 X 35
-
44503192377 Black RH Square SpringBlack RH Square Spring
-
45503192378 Black LH Square SpringBlack LH Square Spring
-
46503191765 Link RodLink Rod
-
47503191555 Swivel BushingSwivel Bushing
-
48503190643 Axle Bar (Long)Axle Bar (Long)
-
49503190643 Axle Bar (Long)Axle Bar (Long)
-
50207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
51207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
52503189157 WasherWasher
-
53233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
54503193520 Rear ShockRear Shock
-
55414936000 CushionCushion
-
56207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
57233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
59503192266 Center ShockCenter Shock
-
60505073625 Adjustement CamAdjustement Cam
-
61503191880 Black SpringBlack Spring
-
62503193663 ProtectorProtector
-
63503191872 Spring GuideSpring Guide
-
64706200881 Spring StopperSpring Stopper
-
65503189117 CushionCushion
-
66503189282 BushingBushing
-
67207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
68233601416 Elastic Locking Nut M10Elastic Locking Nut M10
