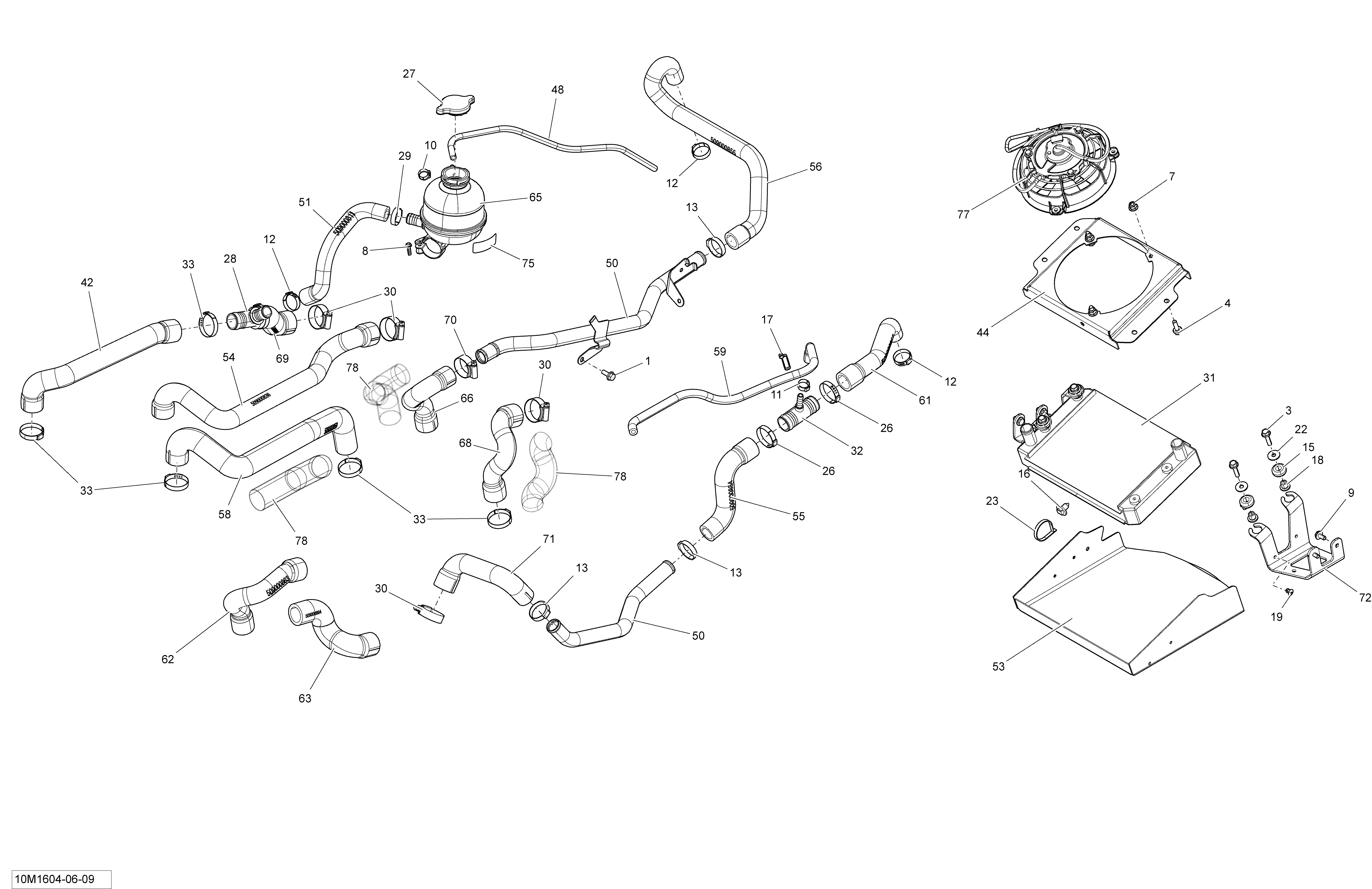

01- Cooling System - 600-900 ACE для BRP Ski-Doo MXZ - 4-STROKE - 2016
-
№АртикулНазвание
-
8241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
12293650099 Crimp ClampCrimp Clamp
-
13293650141 Oetiker Gear ClampOetiker Gear Clamp
-
17293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
19390909100 Avex RivetAvex Rivet
-
23414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
27509000180 Pressure CapPressure Cap
-
28509000372 T-FittingT-Fitting
-
29509000442 Oetiker Gear ClampOetiker Gear Clamp
-
30509000443 Aba Gear ClampAba Gear Clamp
-
33509000529 Oetiker Gear Clamp. Engine 900 ACEOetiker Gear Clamp. Engine 900 ACE
-
33509000529 Oetiker Gear Clamp. Engine 600 ACEOetiker Gear Clamp. Engine 600 ACE
-
42509000697 Radiator Return HoseRadiator Return Hose
-
48509000775 HoseHose
-
51509000811 Filling HoseFilling Hose
-
54509000836 Engine Outlet HoseEngine Outlet Hose
-
58509000859 Radiator Hose. Engine 900 ACERadiator Hose. Engine 900 ACE
-
62509000863 Engine Outlet Hose. Engine 900 ACEEngine Outlet Hose. Engine 900 ACE
-
63509000864 Engine Inlet Hose. Engine 900 ACEEngine Inlet Hose. Engine 900 ACE
-
65509000881 Cooling TankCooling Tank
-
69509000921 Radiator Hose. Engine 600 ACERadiator Hose. Engine 600 ACE
-
75516005904 Warning DecalWarning Decal
-
78509000513 Protector Tube 32 mmProtector Tube 32 mm
