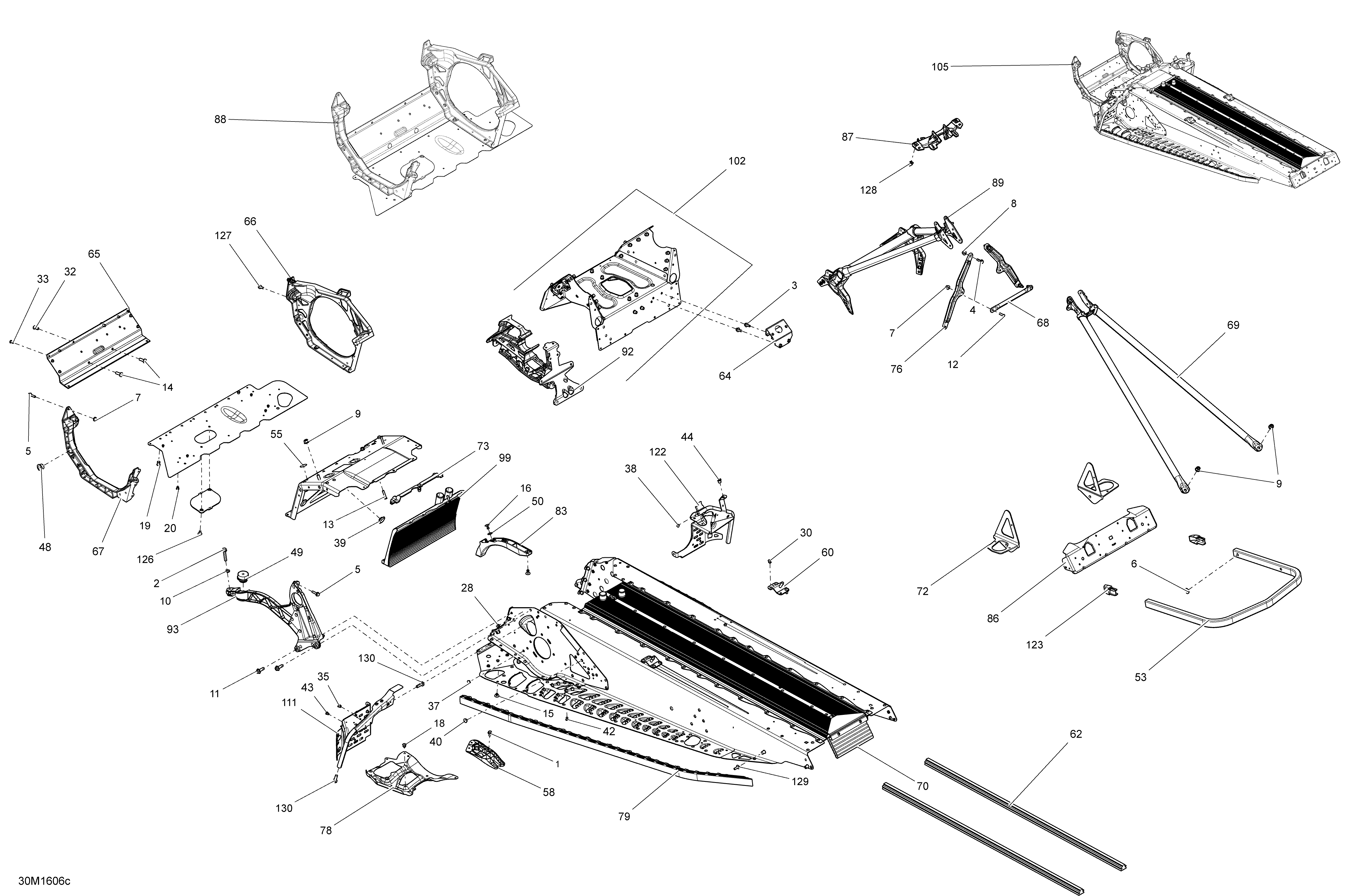

09- Frame - 600-900 ACE для BRP Ski-Doo MXZ - 4-STROKE - 2016
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
3207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6224061201 Flat WasherFlat Washer
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
9233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10234281474 Conical Spring Washer M8Conical Spring Washer M8
-
11250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
12250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
13250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
14250300038 Clinch StudClinch Stud
-
15293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
16293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
18293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
19293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
20293150144 Stavex RivetStavex Rivet
-
28293150146 Henrob RivetHenrob Rivet
-
30293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
32293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
33293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
35293450268 InsertInsert
-
37293730041 Full Moon Dart 8 mm. 600 ACEFull Moon Dart 8 mm. 600 ACE
-
37293730047 Black Dart 8 mm. 900 ACEBlack Dart 8 mm. 900 ACE
-
38293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
39293730052 Black PlugBlack Plug
-
40293730059 Full Moon Dart 10 mm. 600 ACEFull Moon Dart 10 mm. 600 ACE
-
40293730060 Black Dart 10 mm. 900 ACEBlack Dart 10 mm. 900 ACE
-
42390909100 Avex RivetAvex Rivet
-
43390909200 Avex RivetAvex Rivet
-
44293450275 InsertInsert
-
48505073317 Leg CushionLeg Cushion
-
49512060295 Rubber MountRubber Mount
-
50517124300 WasherWasher
-
53518324980 Clear Rear Bumper. 600 ACEClear Rear Bumper. 600 ACE
-
53518325481 Black Rear Bumper. Package-TNTBlack Rear Bumper. Package-TNT
-
53518327637 Black Rear Bumper. Package-BlizzardBlack Rear Bumper. Package-Blizzard
-
55518325560 Adhesive PatchAdhesive Patch
-
58518325782 RH DeflectorRH Deflector
-
58518325783 LH DeflectorLH Deflector
-
60518325973 RH Rear BaseRH Rear Base
-
60518325974 LH Rear BaseLH Rear Base
-
62860200267 Tunnel Protector KitTunnel Protector Kit
-
64518326178 Engine SupportEngine Support
-
65518326198 Front MemberFront Member
-
66518326328 RH Side MemberRH Side Member
-
67518326330 LH Side MemberLH Side Member
-
68518326355 Center Column SupportCenter Column Support
-
69518326559 Rear MemberRear Member
-
70518326666 Rear Radiator Ass'y. Except Package-BlizzardRear Radiator Ass'y. Except Package-Blizzard
-
70518328648 Rear Radiator 128''. Package-BlizzardRear Radiator 128''. Package-Blizzard
-
72518324885 RH Slide Bracket. Package-SportRH Slide Bracket. Package-Sport
-
72518324886 LH Slide Bracket. Package-SportLH Slide Bracket. Package-Sport
-
72518326654 RH Slide Suspension Bracket. Package-TNTRH Slide Suspension Bracket. Package-TNT
-
72518326655 LH Slide Suspension Bracket. Package-TNTLH Slide Suspension Bracket. Package-TNT
-
72518328344 RH Slide Suspension Bracket. Package-BlizzardRH Slide Suspension Bracket. Package-Blizzard
-
72518328345 LH Slide Suspension Bracket. Package-BlizzardLH Slide Suspension Bracket. Package-Blizzard
-
73518326656 SealSeal
-
76518326848 Upper Column SupportUpper Column Support
-
78518326937 RH ReinforcementRH Reinforcement
-
78518326938 LH ReinforcementLH Reinforcement
-
79518328120 RH Roller. Package-SportRH Roller. Package-Sport
-
79518328121 LH Roller. Package-SportLH Roller. Package-Sport
-
79518326942 RH Roller. Package-TNTRH Roller. Package-TNT
-
79518326943 LH Roller. Package-TNTLH Roller. Package-TNT
-
79518327472 RH Roller. Package-BlizzardRH Roller. Package-Blizzard
-
79518327473 LH Roller. Package-BlizzardLH Roller. Package-Blizzard
-
83518326973 Front ProtectorFront Protector
-
86518327105 Rear CapRear Cap
-
87518327145 Sub A SupportSub A Support
-
88518328078 'E'' Module'E'' Module
-
89518327565 Front MemberFront Member
-
92518327487 Front Suspension SupportFront Suspension Support
-
93518327535 Brace Ass'yBrace Ass'y
-
99518327907 Front Radiator Ass'yFront Radiator Ass'y
-
102518328320 Cross Member S ModuleCross Member S Module
-
105415129933 Frame Ass'y 120. Package-SportFrame Ass'y 120. Package-Sport
-
105415129934 Frame Ass'y 120. Package-TNTFrame Ass'y 120. Package-TNT
-
105415130040 Frame Ass'y 128. Package-BlizzardFrame Ass'y 128. Package-Blizzard
-
111518328528 LH StirupLH Stirup
-
122518328942 RH StirupRH Stirup
-
123520000567 Full Moon Cap. 600 ACEFull Moon Cap. 600 ACE
-
123520000840 Black Cap. 900 ACEBlack Cap. 900 ACE
-
126250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
127210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
128250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
129250000779 Torx Screw M6 X 18, Scotch GripTorx Screw M6 X 18, Scotch Grip
-
130250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
