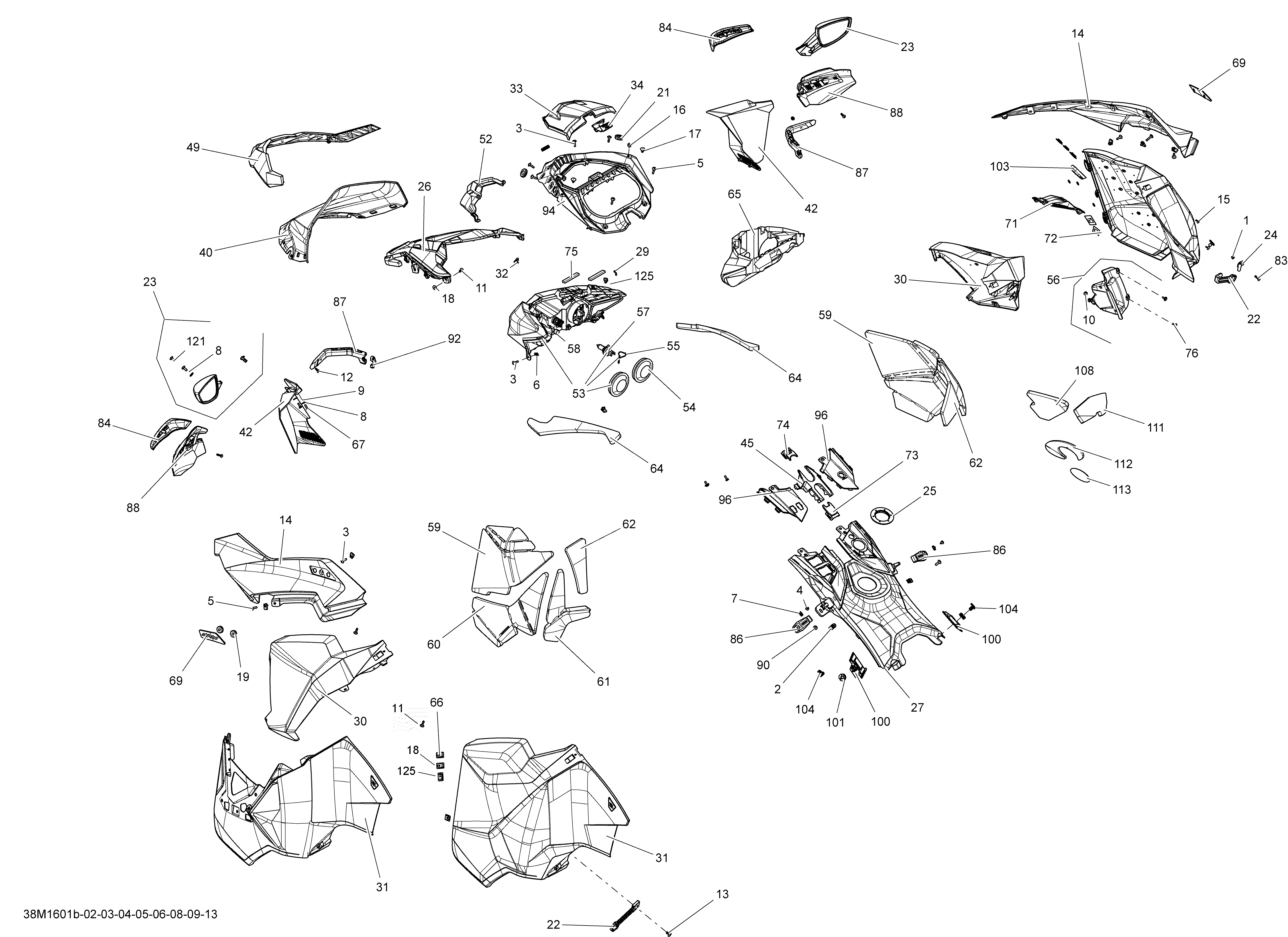

09- Hood - Except Package Sport для BRP Ski-Doo MXZ - 4-STROKE - 2016
-
№АртикулНазвание
-
1233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
2250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
3250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
3250000724 Torx Screw M5 X 20. Model With HandguardsTorx Screw M5 X 20. Model With Handguards
-
4250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
5250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
6250100035 Jack Nut M5Jack Nut M5
-
7250100156 Weld Nut M4Weld Nut M4
-
8250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
9250200025 Washer M5Washer M5
-
10275500241 Black CapBlack Cap
-
11293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
12250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
13293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
14517305239 Deep Black RH HoodDeep Black RH Hood
-
14517305240 Deep Black LH HoodDeep Black LH Hood
-
14517305885 White Hood-LHWhite Hood-LH
-
14517305886 White Hood-RHWhite Hood-RH
-
16293830005 Rubber BumperRubber Bumper
-
17414644300 DartDart
-
18517124300 WasherWasher
-
19517302841 GrommetGrommet
-
21517303756 GrommetGrommet
-
22517303808 LH Panel LatchLH Panel Latch
-
22517304919 RH Panel LatchRH Panel Latch
-
23517305100 RH Mirror Ass'yRH Mirror Ass'y
-
23517305101 LH Mirror Ass'yLH Mirror Ass'y
-
24517304221 Latch Support. E-TEC EngineLatch Support. E-TEC Engine
-
25517304518 Console NutConsole Nut
-
26517304796 Deep Black Center HoodDeep Black Center Hood
-
26517305562 Yellow Sunburst Center HoodYellow Sunburst Center Hood
-
26517305632 White Center HoodWhite Center Hood
-
27517305557 White Rear ConsoleWhite Rear Console
-
27517305641 Black Rear ConsoleBlack Rear Console
-
29250000725 Screw M4 X 16Screw M4 X 16
-
30517304801 Deep Black RH Panel. Black-Black Model - Except Engine 1203 - Panel With Handle OpeningDeep Black RH Panel. Black-Black Model - Except Engine 1203 - Panel With Handle Opening
-
30517304804 Deep Black LH Panel. Black-Black Model - Except Engine 1203 - Panel With Handle OpeningDeep Black LH Panel. Black-Black Model - Except Engine 1203 - Panel With Handle Opening
-
30517305714 Black RH.Panel. Black-Black Model - Engine 1203 - Panel With Handle OpeningBlack RH.Panel. Black-Black Model - Engine 1203 - Panel With Handle Opening
-
30517305717 LH.Panel. Black-Black Model - Engine 1203LH.Panel. Black-Black Model - Engine 1203
-
30517305905 White RH.Panel. Panel With Handle OpeningWhite RH.Panel. Panel With Handle Opening
-
30517305914 LH.Panel. White-White Model - Engine 1203LH.Panel. White-White Model - Engine 1203
-
31517304805 Deep Black LH Flashing PanelDeep Black LH Flashing Panel
-
31517305058 Deep Black RH Panel Trim. Panel With Handle OpeningDeep Black RH Panel Trim. Panel With Handle Opening
-
31517305586 Yellow Sunburst LH Flashing PanelYellow Sunburst LH Flashing Panel
-
31517305646 Yellow Sunburst RH Panel Trim. Panel With Handle OpeningYellow Sunburst RH Panel Trim. Panel With Handle Opening
-
32250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
33517304912 Upper Storage Access CoverUpper Storage Access Cover
-
34517304917 Cover LatchCover Latch
-
40517304921 Windshield 235mm. Package XWindshield 235mm. Package X
-
40517304927 Windshield 345mm. Package Sport, TNTWindshield 345mm. Package Sport, TNT
-
40517304927 Windshield 345mm. Package BlizzardWindshield 345mm. Package Blizzard
-
42517304923 RH Air Deflector ConsoleRH Air Deflector Console
-
42517304924 LH Air Deflector ConsoleLH Air Deflector Console
-
42517304928 RH Air Deflector. Package Sport, TNTRH Air Deflector. Package Sport, TNT
-
42517304928 RH Air Deflector. Package BlizzardRH Air Deflector. Package Blizzard
-
42517304929 LH Air Deflector. Package Sport, TNTLH Air Deflector. Package Sport, TNT
-
42517304929 LH Air Deflector. Package BlizzardLH Air Deflector. Package Blizzard
-
45517304970 Console SupportConsole Support
-
49517304922 Short Windshield Support. Package XShort Windshield Support. Package X
-
49517305411 Support. Package BlizzardSupport. Package Blizzard
-
49860200944 Support. Package Sport, TNTSupport. Package Sport, TNT
-
52517305010 Deep Black Headlight Trim CapDeep Black Headlight Trim Cap
-
53517305762 HeadlampHeadlamp
-
54219400070 CapCap
-
57515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
55219800282 Holder BracketHolder Bracket
-
58219800281 SpringSpring
-
56517305061 Deep Black RH ConsoleDeep Black RH Console
-
59517305196 RH Upper Panel Foam. Except Engine 1203RH Upper Panel Foam. Except Engine 1203
-
59517305200 LH Upper Panel Foam. Except Engine 1203LH Upper Panel Foam. Except Engine 1203
-
59517305790 Foam Upper RH. Engine 1203Foam Upper RH. Engine 1203
-
59517305798 Foam. Engine 1203Foam. Engine 1203
-
60517305197 RH Center Panel Foam. Except Engine 1203RH Center Panel Foam. Except Engine 1203
-
60517305201 LH Center Panel Foam. Except Engine 1203LH Center Panel Foam. Except Engine 1203
-
60517305793 Foam Central RH. Engine 1203Foam Central RH. Engine 1203
-
60517305802 Foam. Engine 1203Foam. Engine 1203
-
61517305198 RH Lower Panel Foam. Except Engine 1203RH Lower Panel Foam. Except Engine 1203
-
61517305202 LH Lower Panel Foam. Except Engine 1203LH Lower Panel Foam. Except Engine 1203
-
61517305792 Foam Lower RH. Engine 1203Foam Lower RH. Engine 1203
-
61517305797 Foam. Engine 1203Foam. Engine 1203
-
62517305199 RH Rear Panel Foam. Except Engine 1203RH Rear Panel Foam. Except Engine 1203
-
62517305203 LH Rear Panel Foam. Except Engine 1203LH Rear Panel Foam. Except Engine 1203
-
62517305801 Foam Rear RH. Engine 1203Foam Rear RH. Engine 1203
-
62517305803 Foam. Engine 1203Foam. Engine 1203
-
64517305090 RH Rear Hood FoamRH Rear Hood Foam
-
64517305091 LH Rear Hood FoamLH Rear Hood Foam
-
65517305095 TrunkTrunk
-
66517305109 Rivet PlateRivet Plate
-
67250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
69517305137 RH Hood Filler PlateRH Hood Filler Plate
-
69517305138 LH Hood Filler PlateLH Hood Filler Plate
-
71517304935 RH Panel Vent GridRH Panel Vent Grid
-
71517305715 GrillGrill
-
72517305451 Heat ShieldHeat Shield
-
73517305180 Deep Black Support Console CapDeep Black Support Console Cap
-
74517305148 Support Console CapSupport Console Cap
-
75517305157 Seal JointSeal Joint
-
76250000725 Screw M4 X 16Screw M4 X 16
-
83250000792 Torx Screw M5 X 20. E-TEC EngineTorx Screw M5 X 20. E-TEC Engine
-
84517305588 Yellow RH Cap. Model With HandguardsYellow RH Cap. Model With Handguards
-
84517305589 Yellow LH Cap. Model With HandguardsYellow LH Cap. Model With Handguards
-
84517305601 Black LH Cap. Model With HandguardsBlack LH Cap. Model With Handguards
-
84517305602 Black RH Cap. Model With HandguardsBlack RH Cap. Model With Handguards
-
86517305279 Panel LatchPanel Latch
-
87517305290 LH ArmLH Arm
-
87517305293 RH ArmRH Arm
-
88517305291 LH DeflectorLH Deflector
-
88517305294 RH DeflectorRH Deflector
-
90250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
92517305296 Bride. Model With HandguardsBride. Model With Handguards
-
94517305511 Deep Black Indicator SupportDeep Black Indicator Support
-
96517305513 Deep Black LH Front ConsoleDeep Black LH Front Console
-
96517305549 RH Front ConsoleRH Front Console
-
100517305722 LH Panel Clip Ass'yLH Panel Clip Ass'y
-
100517305724 RH Panel Clip Ass'yRH Panel Clip Ass'y
-
101517305723 RingRing
-
103517305731 Bumper. Black PanelBumper. Black Panel
-
104517305504 PinPin
-
108517305791 Foam. Engine 1203Foam. Engine 1203
-
108517305799 Foam. Engine 1203Foam. Engine 1203
-
111517305794 Foam. Engine 1203Foam. Engine 1203
-
111517305800 Foam. Engine 1203Foam. Engine 1203
-
112517305795 Foam. Engine 1203Foam. Engine 1203
-
113517305796 Rubber Sheet. Engine 1203Rubber Sheet. Engine 1203
-
121250000721 Torx ScrewTorx Screw
-
125250100158 Push NutPush Nut
-
125732610072 Push Nut. For WindshieldPush Nut. For Windshield
