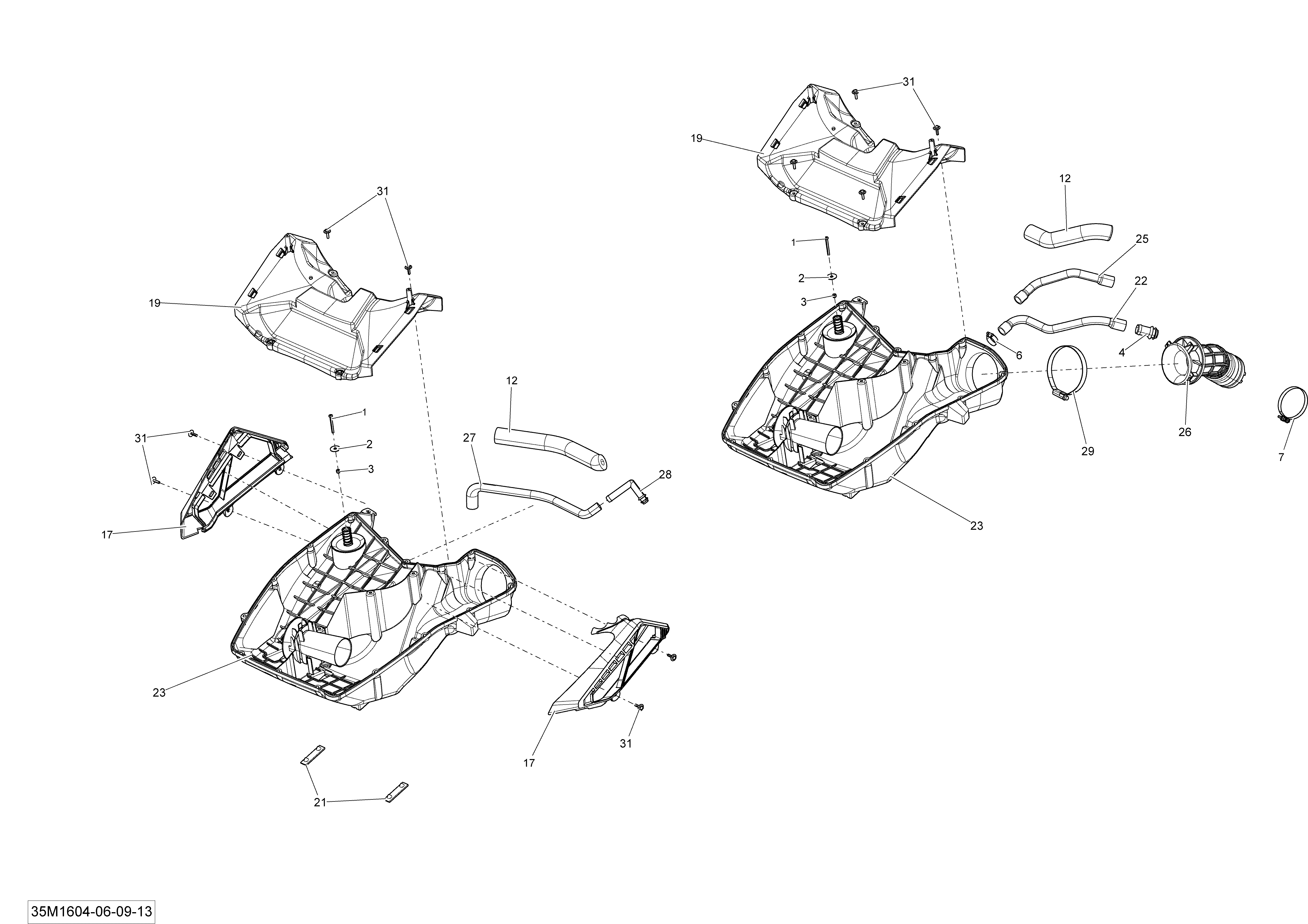

02- Air Intake System - All Models для BRP Ski-Doo MXZ - 4-STROKE - 2016
-
№АртикулНазвание
-
1205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
2224060201 Flat WasherFlat Washer
-
3232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
4273000234 BreatherBreather
-
6293650172 Tridon Gear ClampTridon Gear Clamp
-
7293650229 Gemi ClampGemi Clamp
-
12508000582 Insulating Tube. 1200 4-TECInsulating Tube. 1200 4-TEC
-
12508000648 Tube Isolator. 600 ACE, 900 ACETube Isolator. 600 ACE, 900 ACE
-
17508000730 RH Air FilterRH Air Filter
-
17508000731 LH Air FilterLH Air Filter
-
19508000732 Air DuctAir Duct
-
21508000744 StopperStopper
-
22508000746 Hose VentHose Vent
-
23508000747 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
25508000774 Formed Vent HoseFormed Vent Hose
-
26508000791 Intake Hose. 1200 4-TECIntake Hose. 1200 4-TEC
-
26508000827 Intake Hose. 600 ACE, 900 ACEIntake Hose. 600 ACE, 900 ACE
-
27508000792 Fan HoseFan Hose
-
28508000811 BreatherBreather
-
29514052924 Norma ClampNorma Clamp
-
31250000725 Screw M4 X 16Screw M4 X 16
