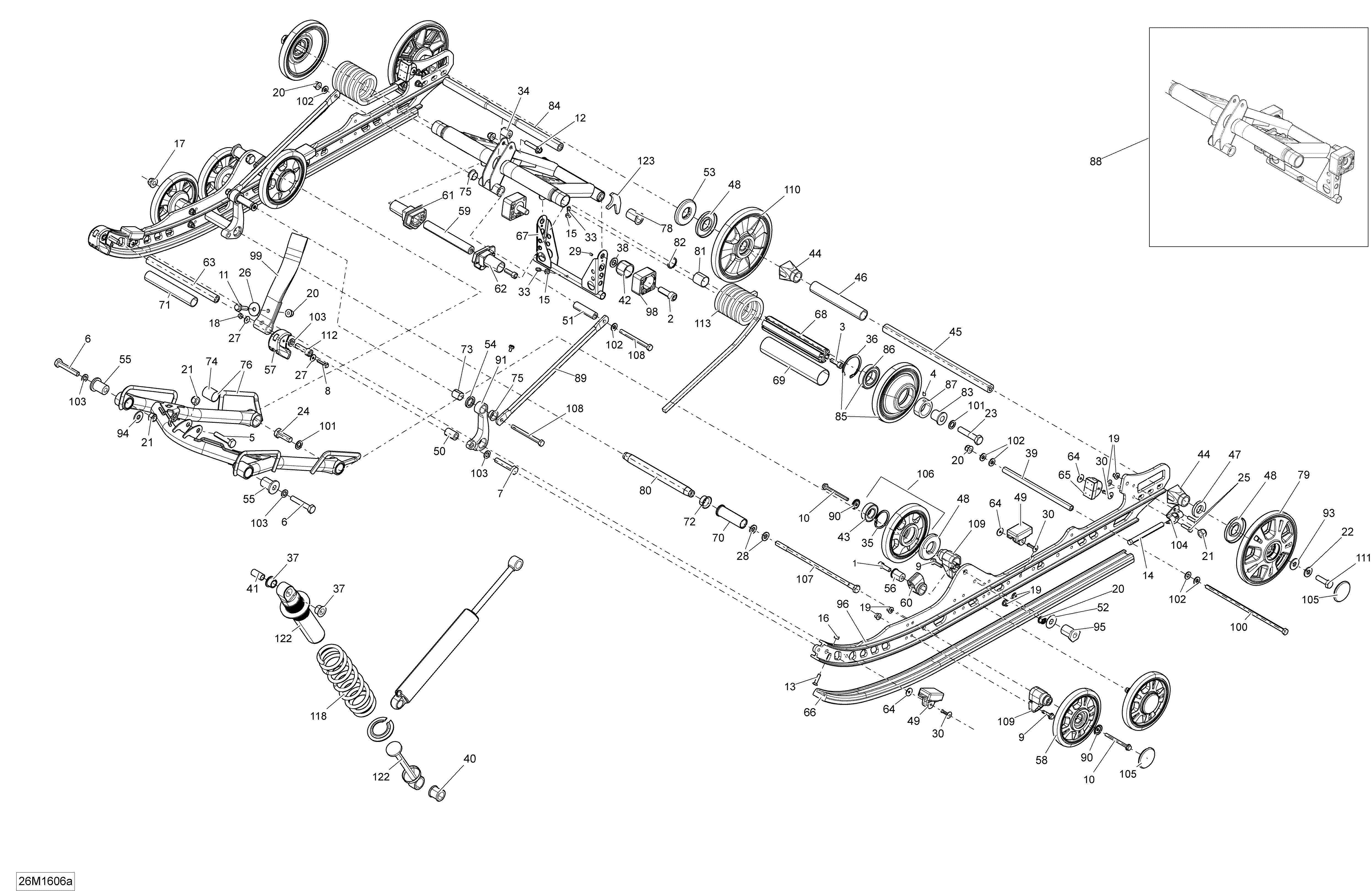

08- Rear Suspension - Package Sport для BRP Ski-Doo MXZ - 4-STROKE - 2016
-
№АртикулНазвание
-
1205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
2205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
3205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
4206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
5207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
6207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
7207205544 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
8207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
9207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
10207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
11207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
12207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
13208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
14230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
15232061404 Hexagonal Nut M6Hexagonal Nut M6
-
16232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
17233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
18233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
19233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
21233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
22234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
23250000485 Hex. Cap Screw M12 X 60, Scotch GripHex. Cap Screw M12 X 60, Scotch Grip
-
24250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
25250000619 Hex Screw M6 X 25Hex Screw M6 X 25
-
26250200128 Flat Washer 8 mmFlat Washer 8 mm
-
27250200140 WasherWasher
-
28250200143 Flat WasherFlat Washer
-
29250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
30293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
33408200700 Grease FittingGrease Fitting
-
34414936000 CushionCushion
-
35415129371 Retaining RingRetaining Ring
-
36415129598 Retaining RingRetaining Ring
-
37503189117 CushionCushion
-
38503189148 WasherWasher
-
39503189156 Pivot Arm AxlePivot Arm Axle
-
40503189271 CushionCushion
-
41503189282 BushingBushing
-
42503189488 Block GuideBlock Guide
-
43503190396 Ball BearingBall Bearing
-
44503190428 Rear Wheel SpacerRear Wheel Spacer
-
45503190429 Rear AxleRear Axle
-
46503190430 SpacerSpacer
-
47503190432 WasherWasher
-
48503190434 Labyrinth SealLabyrinth Seal
-
49503190576 Rubber StopperRubber Stopper
-
50503190604 Central Shock AxleCentral Shock Axle
-
51503190643 Axle Bar (Long)Axle Bar (Long)
-
52503190656 WasherWasher
-
53503190682 Labyrinth SealLabyrinth Seal
-
54503190694 Plastic SpacerPlastic Spacer
-
55503190698 AxleAxle
-
56503190754 Retainer CushionRetainer Cushion
-
57503191137 Runner ProtectorRunner Protector
-
58503192794 Deep Black Wheel Ass'y, 141 mmDeep Black Wheel Ass'y, 141 mm
-
59503191178 Spring Cam AxeSpring Cam Axe
-
60503191183 Spring SupportSpring Support
-
61503191190 RH Spring CamRH Spring Cam
-
62503191191 LH Spring CamLH Spring Cam
-
63503191260 Axle StrapAxle Strap
-
64503191273 WasherWasher
-
65503191291 Rubber StopperRubber Stopper
-
66503191301 Black Slider Shoe 120''Black Slider Shoe 120''
-
67503191302 Pivot ArmPivot Arm
-
68503191344 Spring AxleSpring Axle
-
69503191345 Plastic BushingPlastic Bushing
-
70503191351 Center BushingCenter Bushing
-
71503192678 SpacerSpacer
-
72503191552 CushionCushion
-
73503191553 BushingBushing
-
74503191554 BushingBushing
-
75503191555 Swivel BushingSwivel Bushing
-
76503191579 Front Arm Ass'yFront Arm Ass'y
-
77503191582 Rear ShockRear Shock
-
78503191640 CushionCushion
-
79503191742 Black Wheel Ass'y, 180 mmBlack Wheel Ass'y, 180 mm
-
80503191764 Center ShaftCenter Shaft
-
81503191773 BushingBushing
-
82503191774 WasherWasher
-
83503191775 BushingBushing
-
84503191776 Upper ShaftUpper Shaft
-
85503191777 Black Wheel Ass'y, 144 mmBlack Wheel Ass'y, 144 mm
-
86503191778 Ball BearingBall Bearing
-
87503191782 Retaining RingRetaining Ring
-
88503191785 Rear Arm Ass'yRear Arm Ass'y
-
89503191802 Link RodLink Rod
-
90503191820 Wheel Cup M6Wheel Cup M6
-
91503191890 LH Rocker ArmLH Rocker Arm
-
91503191894 RH Rocker ArmRH Rocker Arm
-
93503191910 WasherWasher
-
94503191926 WasherWasher
-
95503191966 Lower AxleLower Axle
-
96503192152 Runner 120''Runner 120''
-
98503192300 RH Block, 4 PositionsRH Block, 4 Positions
-
98503192301 LH Block, 4 PositionsLH Block, 4 Positions
-
99503192360 Stopper StrapStopper Strap
-
100503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
101503192491 WasherWasher
-
102503192494 WasherWasher
-
103503192496 WasherWasher
-
104503192583 TensionerTensioner
-
105503192771 Black Wheel CapBlack Wheel Cap
-
106503192794 Deep Black Wheel Ass'y, 141 mmDeep Black Wheel Ass'y, 141 mm
-
107503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
108503193372 Screw M8 X 90Screw M8 X 90
-
109503193894 Casted SupportCasted Support
-
110503194050 Deep Black Wheel Ass'y, 180 mmDeep Black Wheel Ass'y, 180 mm
-
111250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
112205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
113503191613 Black LH Spring, SquareBlack LH Spring, Square
-
113503191612 Black RH Spring, SquareBlack RH Spring, Square
-
116503191590 Center ShockCenter Shock
-
117505073625 Adjustment CamAdjustment Cam
-
118503191879 Black SpringBlack Spring
-
119503193663 ProtectorProtector
-
120503191872 Spring GuideSpring Guide
-
121706200881 Spring StopperSpring Stopper
-
123503192330 Lower ShaftLower Shaft
