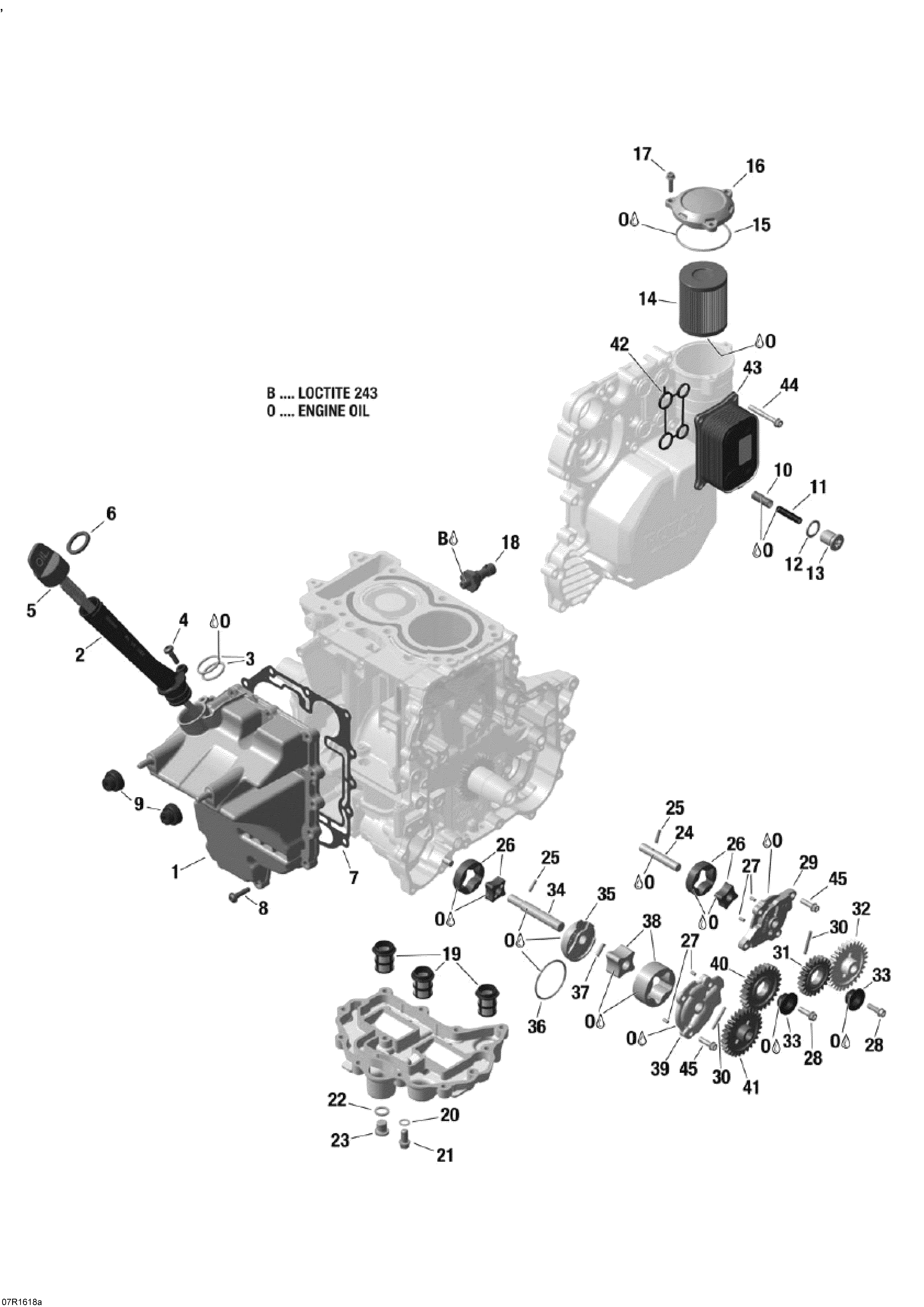

02- Engine Lubrication - 600 ACE для BRP Ski-Doo SKANDIC - 4-STROKE - 2016
-
№АртикулНазвание
-
1420956210 Oil Sump CoverOil Sump Cover
-
2420656900 Oil Filler TubeOil Filler Tube
-
3420430440 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
4420441386 Torx TR Screw M6 x 20. Tightening Torque 9 Nm +/- 12%Torx TR Screw M6 x 20. Tightening Torque 9 Nm +/- 12%
-
5420856665 Oil Dipstick. Includes 5 To 6Oil Dipstick. Includes 5 To 6
-
6420431790 Gasket Ring. Included In Gasket KitGasket Ring. Included In Gasket Kit
-
7420431770 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
8420841549 Torx TR Screw M6 x 25. Tightening Torque 9 Nm +/- 12%. RETRY TORQUE 11NM +/- 12%Torx TR Screw M6 x 25. Tightening Torque 9 Nm +/- 12%. RETRY TORQUE 11NM +/- 12%
-
9420860150 Rubber GrommetRubber Grommet
-
10420256517 Pressure Regulating PistonPressure Regulating Piston
-
11420239445 SpringSpring
-
12420430622 Sealing Ring. Included In Gasket KitSealing Ring. Included In Gasket Kit
-
13420441372 Plug Screw M16 x 1,5. Tightening Torque 17 Nm +/- 12%Plug Screw M16 x 1,5. Tightening Torque 17 Nm +/- 12%
-
14420956124 Oil FilterOil Filter
-
15420650500 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
16420612132 Oil Filter CoverOil Filter Cover
-
17420440207 Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%
-
18420256915 Oil Pressure Switch M10 x 1. Tightening Torque 12 Nm +/- 12%Oil Pressure Switch M10 x 1. Tightening Torque 12 Nm +/- 12%
-
19420656680 Oil SieveOil Sieve
-
20420950141 Sealing Ring. Included In Gasket KitSealing Ring. Included In Gasket Kit
-
21420440852 Hex./Torx Flange Screw M8 x 16. Tightening Torque 15 Nm +/- 12%Hex./Torx Flange Screw M8 x 16. Tightening Torque 15 Nm +/- 12%
-
22420250640 Sealing Ring. Included In Gasket KitSealing Ring. Included In Gasket Kit
-
23420241700 Plug Screw M12 x 1,5. Tightening Torque 15 Nm +/- 12%Plug Screw M12 x 1,5. Tightening Torque 15 Nm +/- 12%
-
24420820120 Oil Pump ShaftOil Pump Shaft
-
25420232731 Needle PinNeedle Pin
-
26420256348 Rotor SetRotor Set
-
27420929075 Needle PinNeedle Pin
-
28420440207 Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%
-
29420911080 Oil Pump CoverOil Pump Cover
-
30420232431 Needle Pin B 4 x 29,8Needle Pin B 4 x 29,8
-
31420835054 Intermediate Gear (22 T)Intermediate Gear (22 T)
-
32420834882 Oil Pump Gear (29 T)Oil Pump Gear (29 T)
-
33420947394 Graduated SpacerGraduated Spacer
-
34420837916 Oil Pump ShaftOil Pump Shaft
-
35420611950 Oil Pump CoverOil Pump Cover
-
36420631830 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
37420632220 Needle PinNeedle Pin
-
38420256836 Rotor SetRotor Set
-
39420611980 Oil Pump CoverOil Pump Cover
-
40420835321 Intermediate Gear (26 T)Intermediate Gear (26 T)
-
41420834887 Oil Pump Gear (28 T)Oil Pump Gear (28 T)
-
42420431870 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
43420656697 Oil Water Heat ExchangerOil Water Heat Exchanger
-
44420440324 Hex./Torx Flange Screw M6 x 45. Tightening Torque 9 Nm +/- 12%Hex./Torx Flange Screw M6 x 45. Tightening Torque 9 Nm +/- 12%
-
45420440207 Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%
