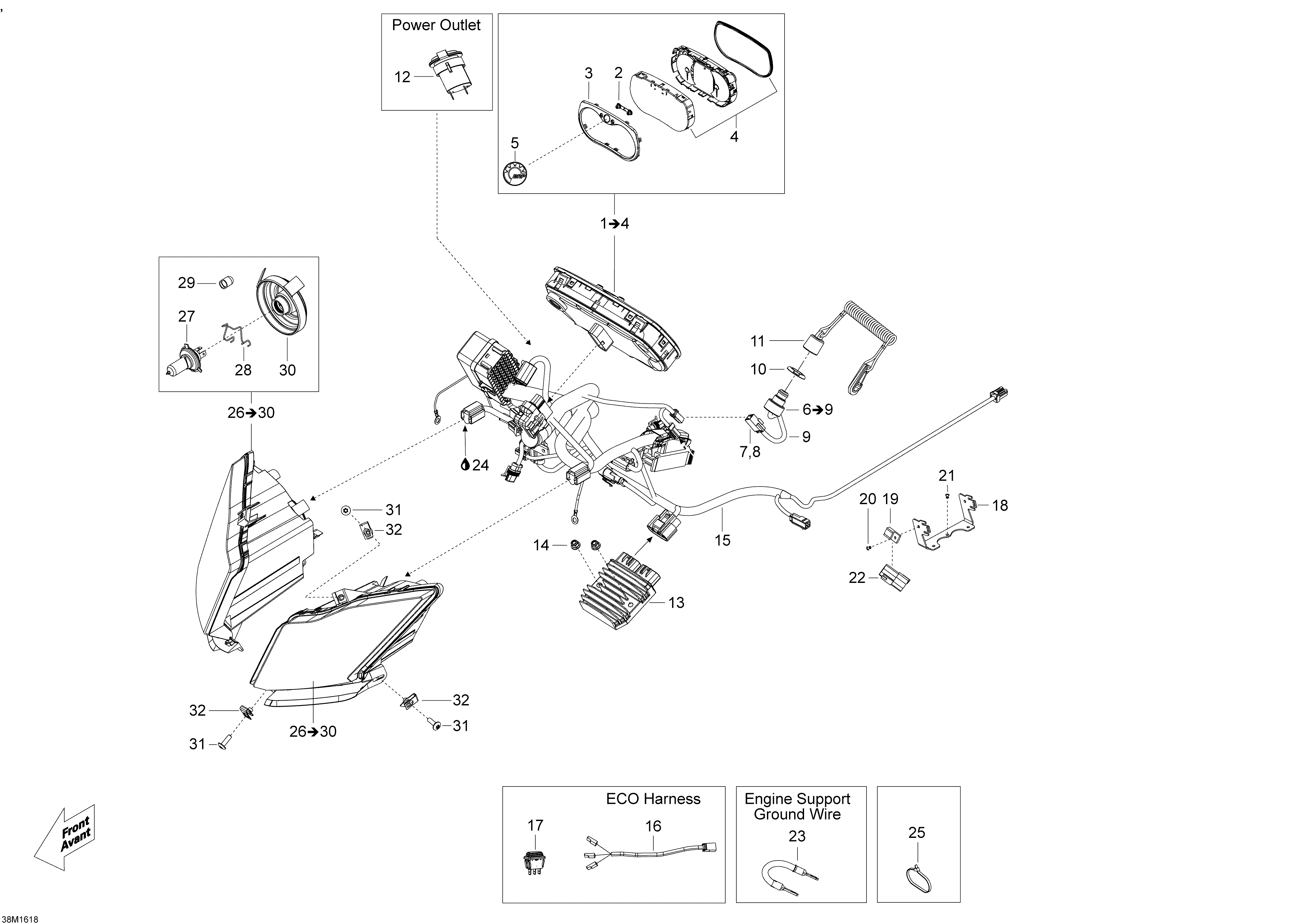

10- Electrical System для BRP Ski-Doo SKANDIC - 4-STROKE - 2016
-
№АртикулНазвание
-
1515177911 Speedometer Ass'y. Includes 1 To 4, Model-600 ACESpeedometer Ass'y. Includes 1 To 4, Model-600 ACE
-
1515177912 Speedometer Ass'y. Includes 1 To 4, Model-900 ACESpeedometer Ass'y. Includes 1 To 4, Model-900 ACE
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 Lens And SealLens And Seal
-
5516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
6515177249 Dess Switch. Includes 6 To 9Dess Switch. Includes 6 To 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 TubingTubing
-
10278002963 Safety Switch NutSafety Switch Nut
-
11515178146 DESS CapDESS Cap
-
11860201162 DESS Cap (Learning Key)DESS Cap (Learning Key)
-
12710001248 DC Power OutletDC Power Outlet
-
13515177325 RegulatorRegulator
-
14233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
15515177940 Main Harness. Model-600 ACEMain Harness. Model-600 ACE
-
15515177939 Main Harness. Model-900 ACEMain Harness. Model-900 ACE
-
16515177568 ECO HarnessECO Harness
-
17515177569 ECO Rocker SwitchECO Rocker Switch
-
18515177073 Fusebox SupportFusebox Support
-
19270000141 ClipClip
-
20293150037 RivetRivet
-
21390402200 Pop Rivet 3/16Pop Rivet 3/16
-
22710003006 HousingHousing
-
23515176883 Ground WireGround Wire
-
25414115200 Tie Rap 180mmTie Rap 180mm
-
25293750001 Tie-Rap 94mmTie-Rap 94mm
-
25293750002 Tie-Rap 130mmTie-Rap 130mm
-
26517304194 RH Headlamp. Includes 26 To 30RH Headlamp. Includes 26 To 30
-
26517304195 LH Headlamp. Includes 26 To 30LH Headlamp. Includes 26 To 30
-
27515176274 Halogen Bulb (60/55W, 12V)Halogen Bulb (60/55W, 12V)
-
29515176498 CapCap
-
30515176499 CoverCover
-
31250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
32250100113 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
