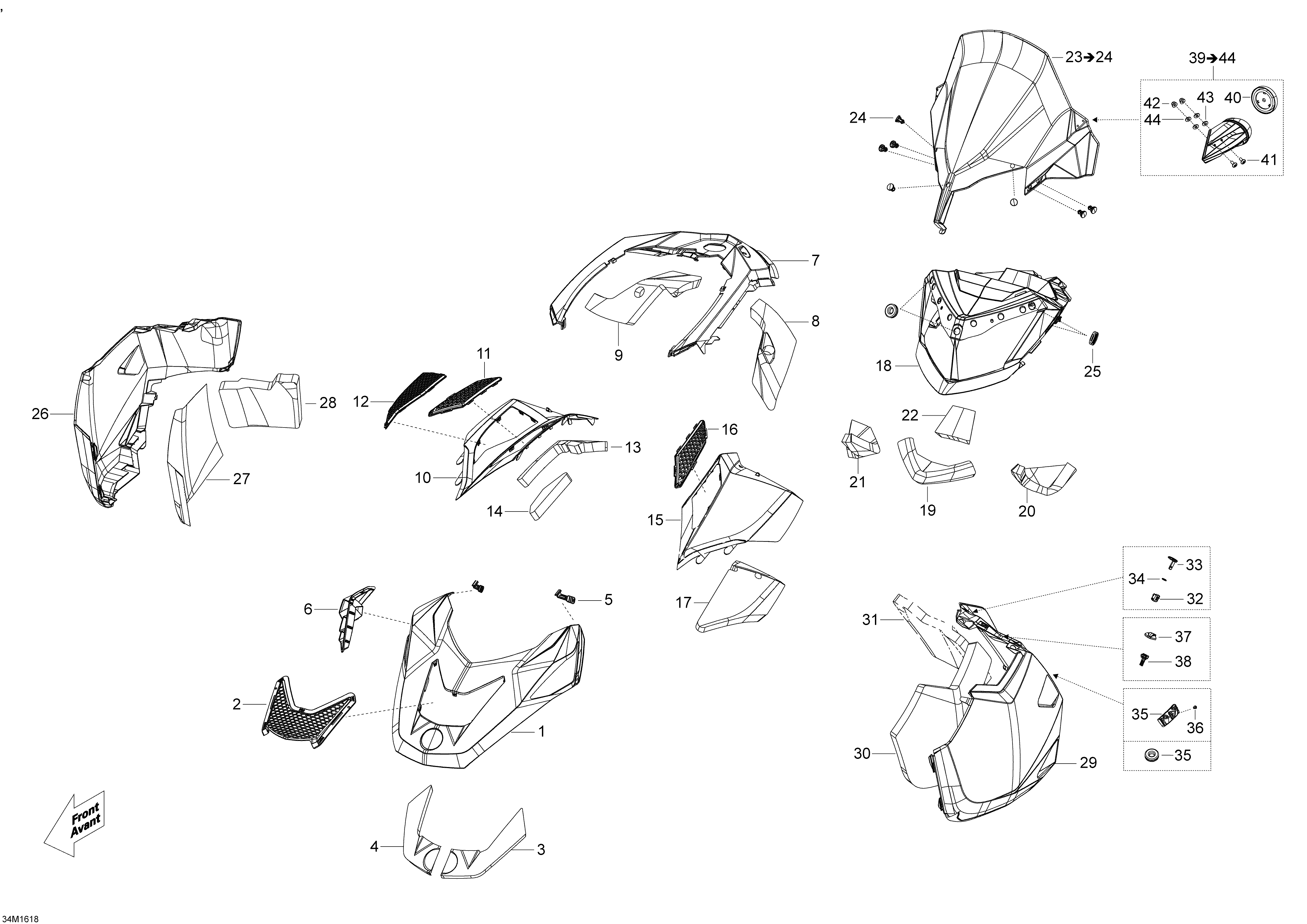

09- Hood And Windshield для BRP Ski-Doo SKANDIC - 4-STROKE - 2016
-
№АртикулНазвание
-
1517305440 Gray HoodGray Hood
-
2517304843 Hood GrillHood Grill
-
3517304330 Insulator LHInsulator LH
-
4517304214 Insulator RHInsulator RH
-
5517304289 LatchLatch
-
6517304155 Scoop GrillScoop Grill
-
7517305609 Black ConsoleBlack Console
-
8517305644 InsulatorInsulator
-
9517304318 InsulatorInsulator
-
10517305446 Gray RH Side Access PanelGray RH Side Access Panel
-
11517304015 RH Access Panel GrillRH Access Panel Grill
-
12517304016 RH Lower Access Panel GrillRH Lower Access Panel Grill
-
13517304311 InsulatorInsulator
-
14517305987 InsulatorInsulator
-
15517305450 Gray LH Side Access PanelGray LH Side Access Panel
-
16517303893 LH Access Panel GrillLH Access Panel Grill
-
17517304313 InsulatorInsulator
-
18517304272 Indicator SupportIndicator Support
-
19517304314 InsulatorInsulator
-
20517304315 InsulatorInsulator
-
21517304316 InsulatorInsulator
-
22517304319 InsulatorInsulator
-
23860201000 Windshield (580) Ass'y. Includes 23 To 24Windshield (580) Ass'y. Includes 23 To 24
-
24517304744 KnobKnob
-
25517303756 GrommetGrommet
-
26517304328 Black RH Side PanelBlack RH Side Panel
-
27517304709 RH FoamRH Foam
-
28517304310 RH Foam RearRH Foam Rear
-
29517304329 Black LH Side PanelBlack LH Side Panel
-
30517304707 LH FoamLH Foam
-
31517304309 LH Foam RearLH Foam Rear
-
32517304297 Quarter-Turn Handle FastenerQuarter-Turn Handle Fastener
-
33517304296 Quarter-Turn HandleQuarter-Turn Handle
-
34517304538 Locking PlateLocking Plate
-
35517304497 Side Panel Support. Model-WTSide Panel Support. Model-WT
-
35517303756 Grommet. Model-SWTGrommet. Model-SWT
-
36293150211 Rivet. Model-WTRivet. Model-WT
-
37860200239 End PieceEnd Piece
-
38517306057 Latch-PanelLatch-Panel
-
39517305787 RH/LH Mirror Ass'y. Includes 39 To 43RH/LH Mirror Ass'y. Includes 39 To 43
-
41250000721 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
42232361493 Hex. Domed Nut M6Hex. Domed Nut M6
-
43250200024 Rubber Washer M5Rubber Washer M5
-
4420117 WasherWasher
