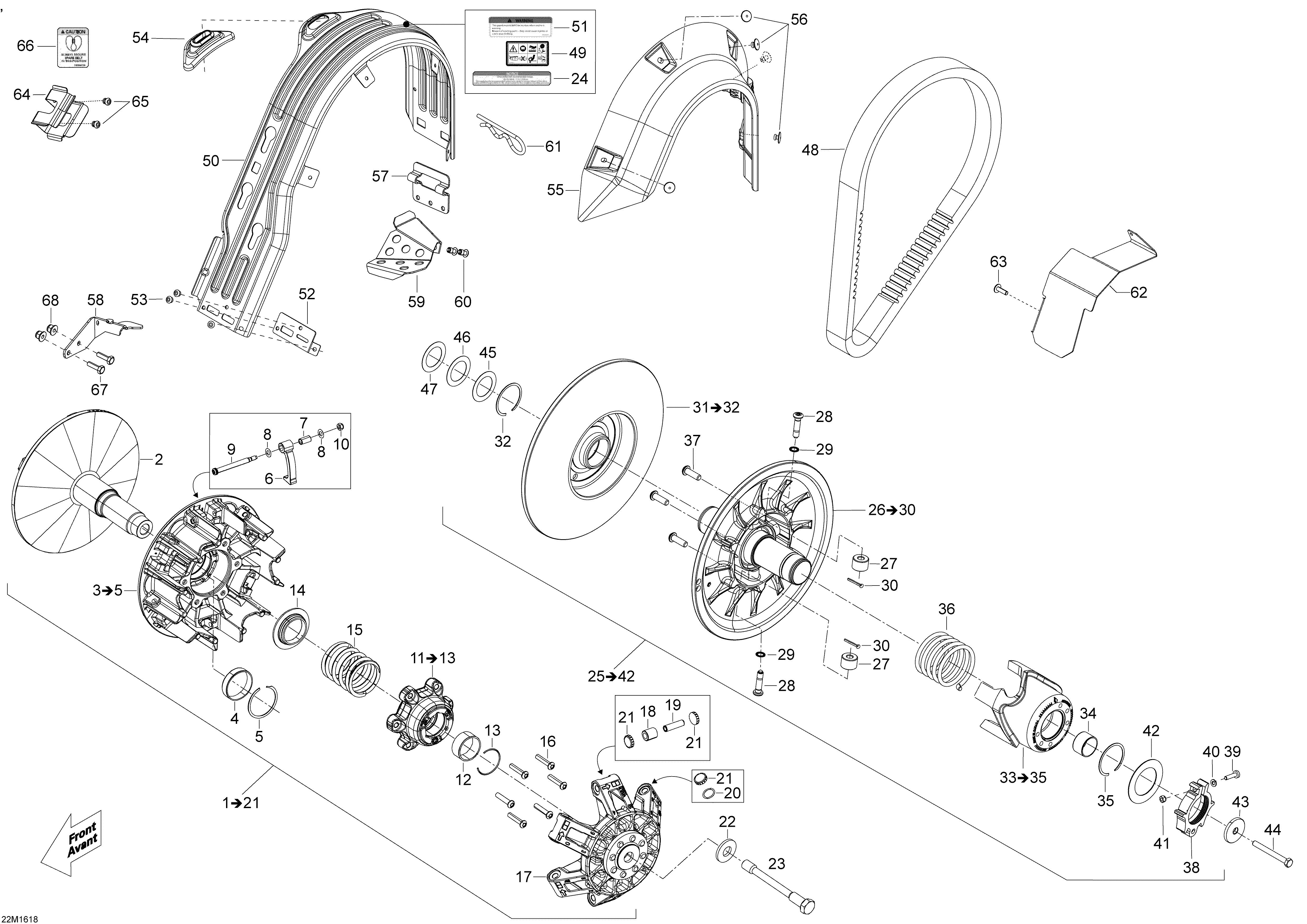

05- Pulley System для BRP Ski-Doo SKANDIC - 4-STROKE - 2016

№

Артикул

Название
2

417223867 Fixed Flange Ass'y

Fixed Flange Ass'y

24 730 ₽
3

417223855 Sliding Flange Ass'y. Includes 3 To 5, Model-600 ACE

Sliding Flange Ass'y. Includes 3 To 5, Model-600 ACE

21 900 ₽
3

417224044 Sliding Flange Ass'y. Includes 3 To 5, Model-900 ACE

Sliding Flange Ass'y. Includes 3 To 5, Model-900 ACE

95 200 ₽
4

417222758 Journal Bearing

Journal Bearing

5 750 ₽
5

293370037 Circlip

Circlip

680 ₽
6

417223508 Ramp (716). Model-600 ACE

Ramp (716). Model-600 ACE

13 620 ₽
6

417224035 Ramp (748). Model-900 ACE Europe

Ramp (748). Model-900 ACE Europe

800 ₽
6

417223906 Ramp (740). Model-900 ACE North America

Ramp (740). Model-900 ACE North America

13 620 ₽
8

417223255 Washer. Model-600 ACE

Washer. Model-600 ACE

740 ₽
8

417223660 Washer. Model-900 ACE

Washer. Model-900 ACE

2 260 ₽
9

417223694 Ramp Axle

Ramp Axle

3 610 ₽
10

232551414 Elastic Stop Nut M5

Elastic Stop Nut M5

320 ₽
11

417223907 Spring Cover Ass'y. Includes 11 To 13, Model-600 ACE

Spring Cover Ass'y. Includes 11 To 13, Model-600 ACE

16 420 ₽
11

417223650 Spring Cover Ass'y. Includes 11 To 13, Model-900 ACE

Spring Cover Ass'y. Includes 11 To 13, Model-900 ACE

17 080 ₽
13

293370065 Circlip

Circlip

170 ₽
14

417223752 Spring Seat

Spring Seat

1 170 ₽
15

417223747 Spring (Red / White, 356-600N / 80-135lbs). Model-600 ACE

Spring (Red / White, 356-600N / 80-135lbs). Model-600 ACE

1 250 ₽
15

417223749 Spring (Red / Orange, 355-845N / 80-190lbs). Model-900 ACE Europe

Spring (Red / Orange, 355-845N / 80-190lbs). Model-900 ACE Europe

1 250 ₽
15

417223745 Spring (Red / Red, 356-667N / 80-150lbs). Model-900 ACE North America

Spring (Red / Red, 356-667N / 80-150lbs). Model-900 ACE North America

1 250 ₽
16

250000580 Torx Button Head Screw M6 x 30

Torx Button Head Screw M6 x 30

500 ₽
17

417223865 Governor Cup Ass'y

Governor Cup Ass'y

89 600 ₽
18

417223767 Roller

Roller

5 780 ₽
19

417223257 Roller Axle

Roller Axle

3 500 ₽
20

293300185 O-Ring

O-Ring

360 ₽
21

417223919 Slider Shoe

Slider Shoe

4 280 ₽
22

250200144 Spring Washer

Spring Washer

4 130 ₽
23

417300432 Drive Pulley Bolt

Drive Pulley Bolt

14 840 ₽
24

516005503 Drive Pulley Bolt Decal

Drive Pulley Bolt Decal

20 ₽
26

417127433 Fixed Flange Ass'y. includes 26 To 30

Fixed Flange Ass'y. includes 26 To 30

204 050 ₽
27

417127189 Roller

Roller

12 970 ₽
28

417127294 Stud

Stud

8 140 ₽
29

250200009 Lock Washer 8 mm

Lock Washer 8 mm

890 ₽
30

250400063 Spring Pin M3 x 30

Spring Pin M3 x 30

770 ₽
31

417127366 Sliding Flange Ass'y. Includes 31 To 32

Sliding Flange Ass'y. Includes 31 To 32

68 070 ₽
32

293370049 Circlip

Circlip

1 890 ₽
33

417127413 Cam Ass'y (37/45°). Includes 33 To 35, Model-600 ACE

Cam Ass'y (37/45°). Includes 33 To 35, Model-600 ACE

40 560 ₽
33

417127411 Cam Ass'y (40°). Includes 33 To 35, Model-900 ACE

Cam Ass'y (40°). Includes 33 To 35, Model-900 ACE

54 600 ₽
34

417127318 Bushing

Bushing

5 230 ₽
35

293370049 Circlip

Circlip

1 890 ₽
36

417127344 Spring (Pink, 204-367N / 46-83lbs). Model-600 ACE

Spring (Pink, 204-367N / 46-83lbs). Model-600 ACE

16 100 ₽
36

417127467 Spring (Red, 182-313N / 41-70lbs). Model-900 ACE

Spring (Red, 182-313N / 41-70lbs). Model-900 ACE

15 160 ₽
37

250000757 Torx Screw M8 x 25, Scotch Grip

Torx Screw M8 x 25, Scotch Grip

1 110 ₽
38

415129604 Pulley Adjuster Ass'y

Pulley Adjuster Ass'y

4 450 ₽
39

205052544 Socket Head Screw M5 x 25

Socket Head Screw M5 x 25

600 ₽
40

234051410 Flat Washer M5

Flat Washer M5

190 ₽
41

232551414 Elastic Stop Nut M5

Elastic Stop Nut M5

320 ₽
42

417127155 Washer

Washer

790 ₽
43

517302322 Strength Washer

Strength Washer

3 820 ₽
44

207287544 Hex. Cap Screw M8 x 75

Hex. Cap Screw M8 x 75

1 890 ₽
45

417300252 Spacer (1.91/2.21mm). (Adjustment Part, Use If Needed)

Spacer (1.91/2.21mm). (Adjustment Part, Use If Needed)

1 790 ₽
46

417300265 Spacer (0.91/1.12mm). (Adjustment Part, Use If Needed)

Spacer (0.91/1.12mm). (Adjustment Part, Use If Needed)

800 ₽
47

504112000 Shim. (Adjustment Part, Use If Needed)

Shim. (Adjustment Part, Use If Needed)

540 ₽
48

417300127 Drive Belt. Model-600 ACE

Drive Belt. Model-600 ACE

11 620 ₽
48

417300383 Drive Belt. Model-900 ACE

Drive Belt. Model-900 ACE

13 000 ₽
49

516003919 Warning Decal. Model-Europe

Warning Decal. Model-Europe

80 ₽
50

417300382 Belt Guard

Belt Guard

29 400 ₽
51

516006900 Belt Guard Security Decal

Belt Guard Security Decal

10 ₽
52

417300380 Reinforcement

Reinforcement

1 790 ₽
53

390909200 Rivet

Rivet

170 ₽
54

417300381 Guide

Guide

3 010 ₽
55

417300356 Side Protector

Side Protector

3 380 ₽
56

293150103 Pop Rivet 3/16

Pop Rivet 3/16

210 ₽
57

417300363 Belt Guard Bracket. Model-WT

Belt Guard Bracket. Model-WT

1 070 ₽
57

417300413 Belt Guard Bracket. Model-SWT

Belt Guard Bracket. Model-SWT

630 ₽
58

417300451 Belt Guard Bracket

Belt Guard Bracket

0 ₽
59

518325626 Brake Hose Cover. Model-WT

Brake Hose Cover. Model-WT

9 910 ₽
59

518327035 Brake Hose Cover. Model-SWT

Brake Hose Cover. Model-SWT

970 ₽
60

293150163 Rivet

Rivet

1 040 ₽
61

114045200 Hair Pin

Hair Pin

3 680 ₽
62

417300468 Air Duct. Model-North America

Air Duct. Model-North America

16 420 ₽
63

250000722 Torx Truss Screw M6 x 20. Model-North America

Torx Truss Screw M6 x 20. Model-North America

890 ₽
64

517281905 Drive Belt Bracket

Drive Belt Bracket

1 380 ₽
65

390909100 Rivet

Rivet

120 ₽
66

516007493 Belt Decal

Belt Decal

820 ₽
67

207162044 Hex. Cap Screw M6 x 20

Hex. Cap Screw M6 x 20

280 ₽
68

233261414 Elastic Flange Nut M6

Elastic Flange Nut M6

490 ₽
