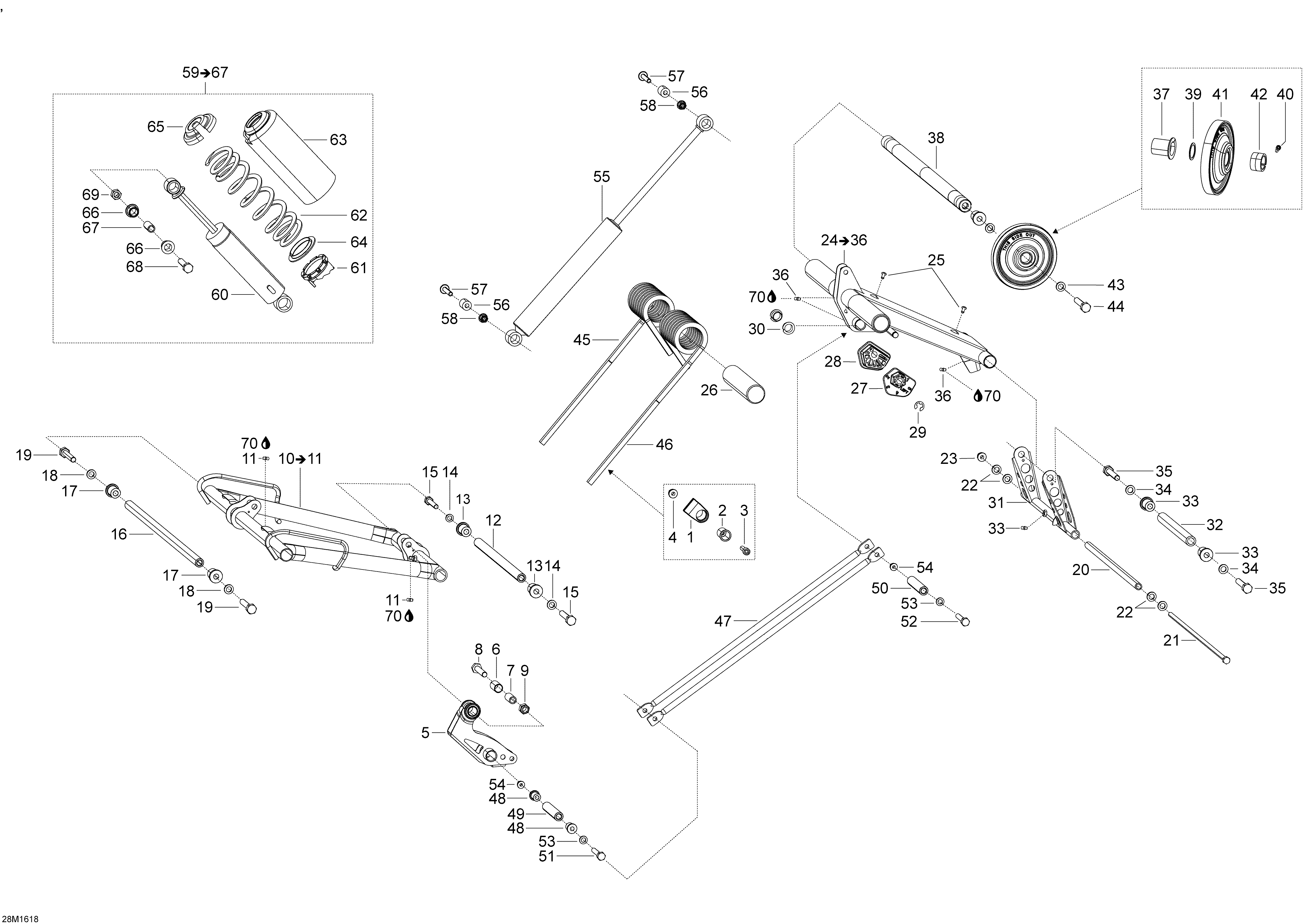

08- Rear Suspension B для BRP Ski-Doo SKANDIC - 4-STROKE - 2016
-
№АртикулНазвание
-
1503191183 Spring SupportSpring Support
-
2503190754 Cushion RetainCushion Retain
-
3205082544 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
4233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
5503192211 Rocker WeldRocker Weld
-
6503193037 CushionCushion
-
7503189282 BushingBushing
-
8207005044 Hex. Cap Screw M10 x 50Hex. Cap Screw M10 x 50
-
9233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
10503193274 Front Arm Ass'y. Includes 10 To 11, Model-WTFront Arm Ass'y. Includes 10 To 11, Model-WT
-
10503193275 Front Arm Ass'y. Includes 10 To 11, Model-SWTFront Arm Ass'y. Includes 10 To 11, Model-SWT
-
11408200700 Grease FittingGrease Fitting
-
12503191390 Lower ShaftLower Shaft
-
13503189324 BushingBushing
-
14503192496 WasherWasher
-
15250000605 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
16503191391 Upper Shaft. Model-WTUpper Shaft. Model-WT
-
16503191392 Upper Shaft. Model-SWTUpper Shaft. Model-SWT
-
17503189324 BushingBushing
-
18503189564 WasherWasher
-
19250000605 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
20503191396 Axle PivotAxle Pivot
-
21503191397 Bolt M8 x 369mmBolt M8 x 369mm
-
22503189157 WasherWasher
-
23233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
24503191709 Rear Arm Ass'y. Includes 24 To 36Rear Arm Ass'y. Includes 24 To 36
-
25414644300 DartDart
-
27503191565 LH Cam AdjusterLH Cam Adjuster
-
28503191566 RH Cam AdjusterRH Cam Adjuster
-
29293370013 CirclipCirclip
-
30503191555 Swivel BushingSwivel Bushing
-
31503191393 Arm PivotArm Pivot
-
32503192330 Lower ShaftLower Shaft
-
33503191640 CushionCushion
-
34503189148 WasherWasher
-
35205523554 Socket Head Screw M12 x 35Socket Head Screw M12 x 35
-
36408200700 Grease FittingGrease Fitting
-
37503191451 CushionCushion
-
38503191405 Upper Shaft. Model-WTUpper Shaft. Model-WT
-
38503191406 Upper Shaft. Model-SWTUpper Shaft. Model-SWT
-
39503190328 WasherWasher
-
40206260844 Socket Set Screw M6 x 8. Model-SWTSocket Set Screw M6 x 8. Model-SWT
-
41503191738 Wheel 155mmWheel 155mm
-
42503191099 Retaining Ring. Model-WTRetaining Ring. Model-WT
-
42503191424 Retaining Ring. Model-SWTRetaining Ring. Model-SWT
-
43503192491 WasherWasher
-
44250000484 Socket Head Screw M12 x 35Socket Head Screw M12 x 35
-
45503192377 RH Spring. Model-WTRH Spring. Model-WT
-
45503192910 RH Spring. Model-SWTRH Spring. Model-SWT
-
46503192378 LH Spring. Model-WTLH Spring. Model-WT
-
46503192911 LH Spring. Model-SWTLH Spring. Model-SWT
-
47503191765 Link RodLink Rod
-
48503191555 Swivel BushingSwivel Bushing
-
49503190643 Axle BarAxle Bar
-
50503190643 Axle BarAxle Bar
-
51207089044 Hex. Cap Screw M8 x 90Hex. Cap Screw M8 x 90
-
52207089044 Hex. Cap Screw M8 x 90Hex. Cap Screw M8 x 90
-
53503189157 WasherWasher
-
54233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
55503193520 Rear ShockRear Shock
-
56414936000 CushionCushion
-
57207684044 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
58233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
60503192266 ShockShock
-
61505073625 Adjuster CamAdjuster Cam
-
62503191880 SpringSpring
-
63503193663 ProtectorProtector
-
64503191872 Spring GuideSpring Guide
-
65706200881 Spring StopperSpring Stopper
-
66503189117 Ureth. CushionUreth. Cushion
-
67503189282 BushingBushing
-
68207005044 Hex. Cap Screw M10 x 50Hex. Cap Screw M10 x 50
-
69233601416 Elastic Locking Nut M10Elastic Locking Nut M10
