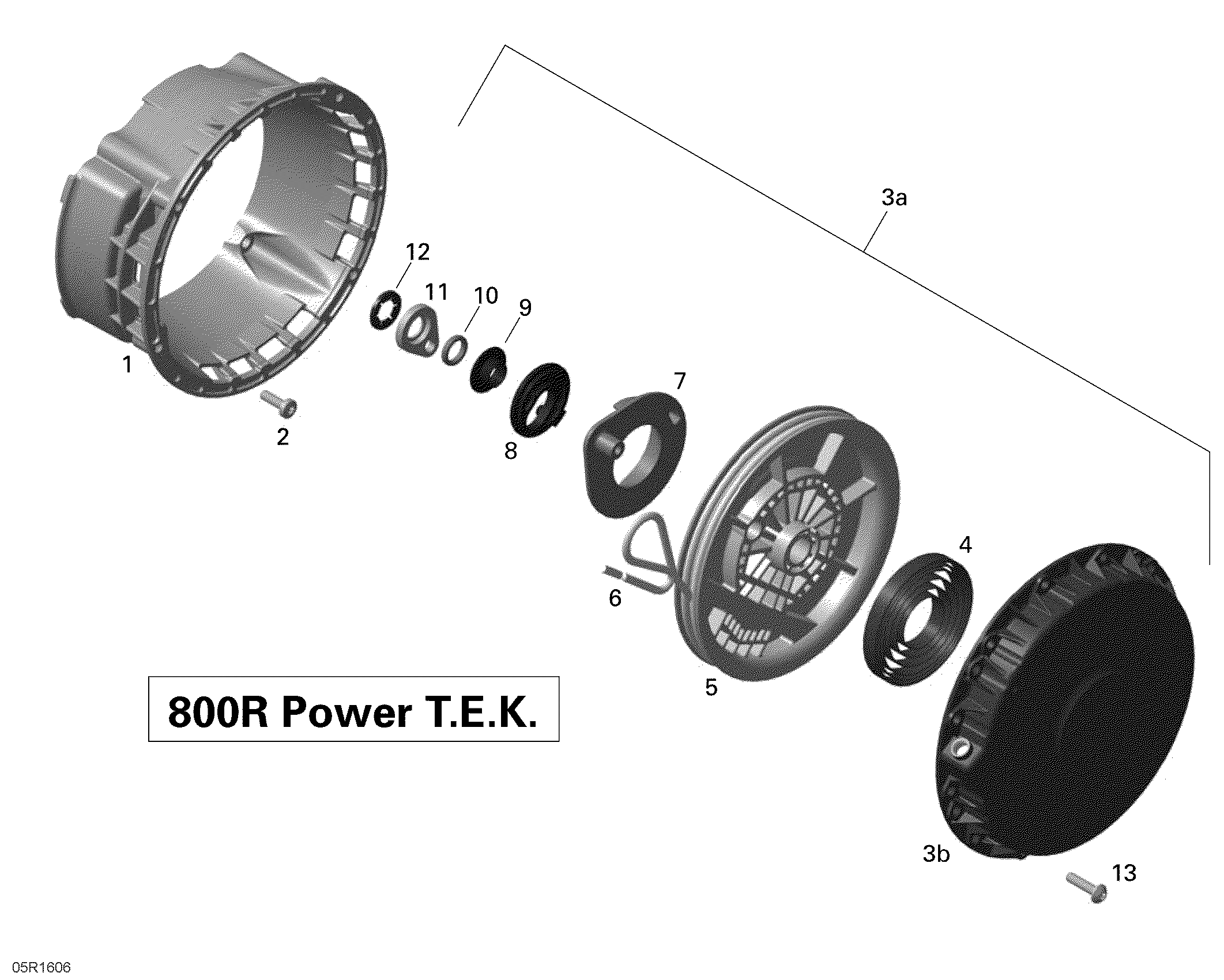

04- Rewind Starter - 800R PTEK для BRP Ski-Doo SUMMIT 800R P-TEK - 2016
-
№АртикулНазвание
-
1420812941 Flange ConnectorFlange Connector
-
2420941256 Hex. Collar ScrewHex. Collar Screw
-
3a420892614 Rewind Starter Ass'y. Includes 3a to 12Rewind Starter Ass'y. Includes 3a to 12
-
3b420910256 Starter HousingStarter Housing
-
4420939115 Rewind SpringRewind Spring
-
5420852288 Rope SheaveRope Sheave
-
6412500200 Starter Rope, MeterStarter Rope, Meter
-
7420852633 PawlPawl
-
8420852640 Pawl LockPawl Lock
-
9420847926 Stage SleeveStage Sleeve
-
10420250407 O-RingO-Ring
-
11420852520 Lock RingLock Ring
-
12420845560 Locking ElementLocking Element
-
13420940431 ScrewScrew
