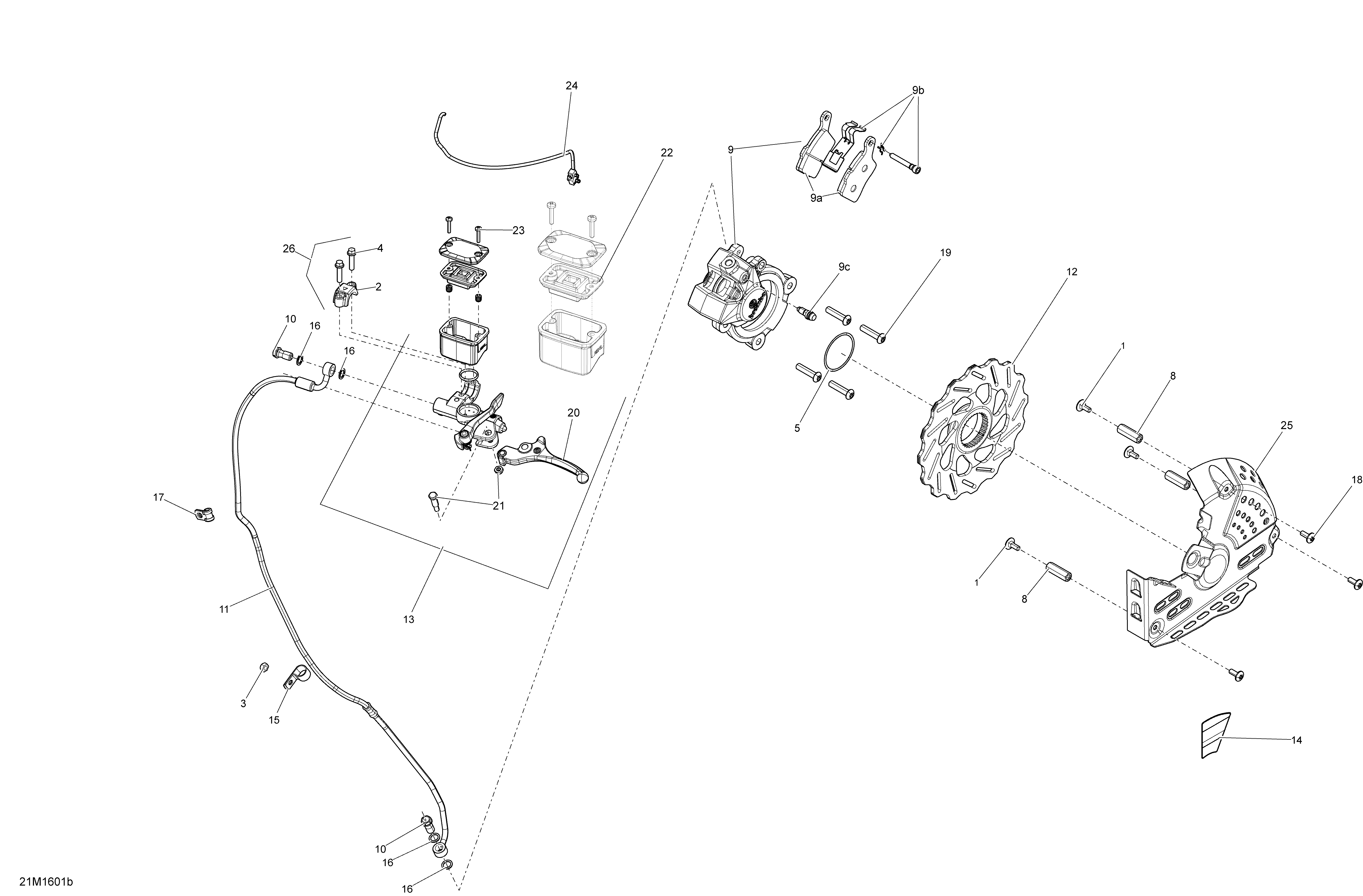

06- Brakes - Package Sport для BRP Ski-Doo SUMMIT 800R P-TEK - 2016
-
№АртикулНазвание
-
1207761644 Carriage Bolt M6 X 16Carriage Bolt M6 X 16
-
2719000049 Clamps KitClamps Kit
-
3232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
5293300134 O-RingO-Ring
-
8507032497 Threaded TubeThreaded Tube
-
9507032500 Brake Caliper Ass'y. Includes 9 To 9cBrake Caliper Ass'y. Includes 9 To 9c
-
9a507032473 Brake Pads KitBrake Pads Kit
-
9b507032474 Pin, Clip & Spring KitPin, Clip & Spring Kit
-
9c507032475 BleederBleeder
-
10507032551 Banjo BoltBanjo Bolt
-
11507032552 HoseHose
-
12507032554 DiskDisk
-
13507032585 Master Cylinder Ass'yMaster Cylinder Ass'y
-
14516005525 Warning DecalWarning Decal
-
15518321570 Open ClampOpen Clamp
-
16705600310 Copper WasherCopper Washer
-
17705600459 ClampClamp
-
18250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
19250000764 Hex. Butoon Head Screw M8 X 35Hex. Butoon Head Screw M8 X 35
-
20507032476 LeverLever
-
21415030000 Pin Ass'yPin Ass'y
-
22507032478 Master Cylinder Reservoir Ass'yMaster Cylinder Reservoir Ass'y
-
23415129356 Screw M4 X 20Screw M4 X 20
-
24507032592 MicroswitchMicroswitch
-
25507032587 Black Disk ProtectorBlack Disk Protector
-
26507032477 Clamp And Screw KitClamp And Screw Kit
