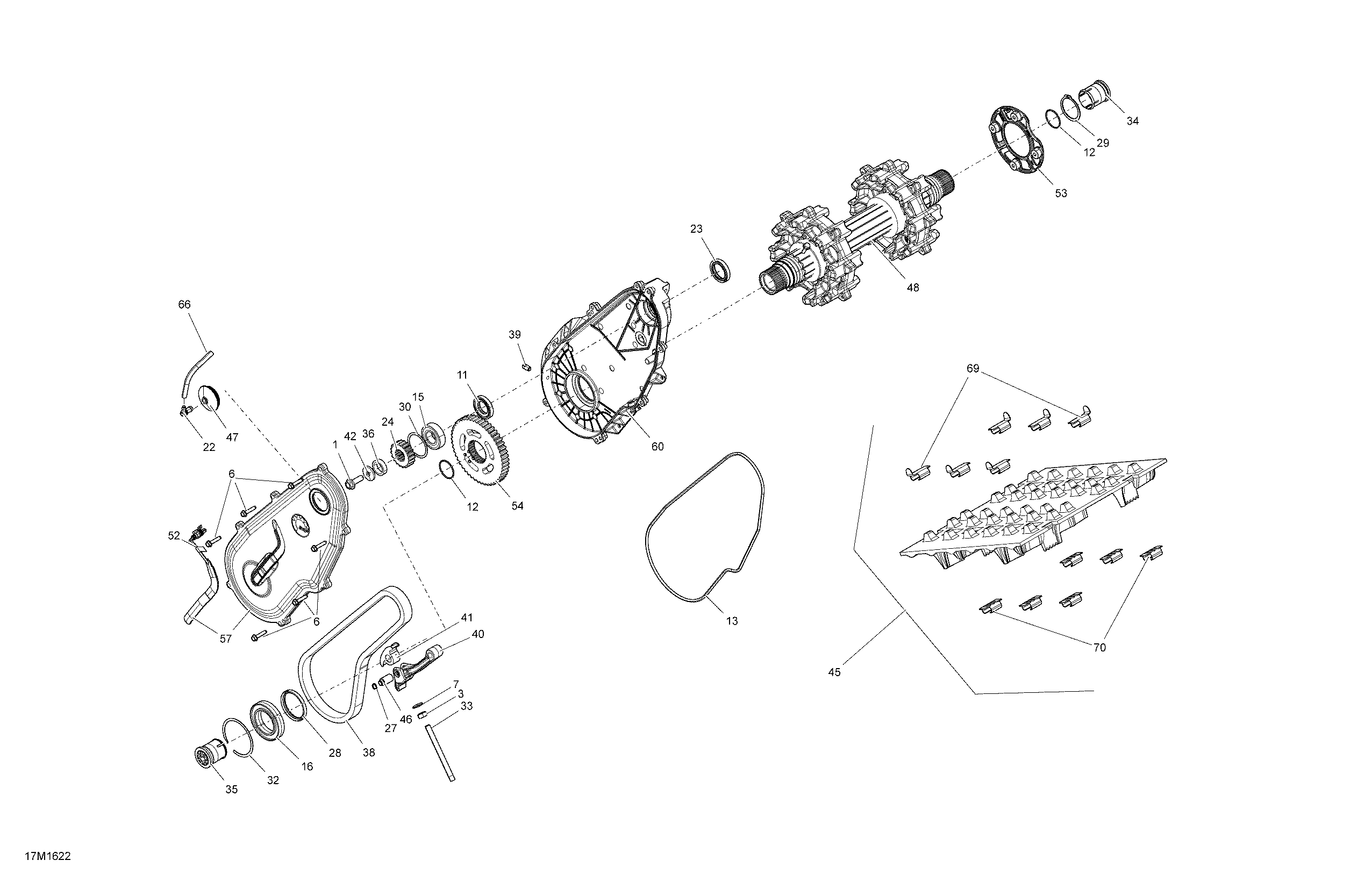

05- Drive - 800R PTEK для BRP Ski-Doo SUMMIT 800R P-TEK - 2016
-
№АртикулНазвание
-
1207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
3232006414 Hex. Nut M10 X 1.5Hex. Nut M10 X 1.5
-
6210263050 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
6250000360 Flanged Hex. Screw M6 X 1.0 X 30. Package SportFlanged Hex. Screw M6 X 1.0 X 30. Package Sport
-
7250200100 Bonded WasherBonded Washer
-
11293200158 Oil SealOil Seal
-
12293300122 O-RingO-Ring
-
13293300130 Tight SealTight Seal
-
15293350055 Ball BearingBall Bearing
-
16293350059 Ball BearingBall Bearing
-
22414580700 Male ConnectorMale Connector
-
23415049300 Oil Seal. Engine 800Oil Seal. Engine 800
-
24504152030 Sprocket, 19 Teeth. Model N°: CBGASprocket, 19 Teeth. Model N°: CBGA
-
27504152282 CirclipCirclip
-
28504152571 SealSeal
-
29504152572 CirclipCirclip
-
30504152576 CirclipCirclip
-
32504152582 CirclipCirclip
-
33504152602 Adjustment ScrewAdjustment Screw
-
34504152619 Magnetic CapMagnetic Cap
-
36504152628 ShimShim
-
38504152629 Drive Chain, 104 Links. Model N°: CBGADrive Chain, 104 Links. Model N°: CBGA
-
39504152636 Magnetic Plug 1/8 - 27 NPTF. Package Sport and LTMagnetic Plug 1/8 - 27 NPTF. Package Sport and LT
-
40504152685 Chain TensionerChain Tensioner
-
41504152739 Slider ChainSlider Chain
-
42504152784 Spring Washer M10Spring Washer M10
-
45504153223 Track Ass'y 16'' X 154'' X 2.2''PSH. Model N°: CBGATrack Ass'y 16'' X 154'' X 2.2''PSH. Model N°: CBGA
-
46504152841 Tensioner AxleTensioner Axle
-
47504152860 CapCap
-
48504152869 Drive Axle Ass'yDrive Axle Ass'y
-
52504152896 Rotation SensorRotation Sensor
-
53504152949 Housing BearingHousing Bearing
-
54504152581 Sprocket, 49 Teeth. Model N°: CBGASprocket, 49 Teeth. Model N°: CBGA
-
57504153147 Chaincase Cover Ass'y. Includes Ref# 52 Rotation SensorChaincase Cover Ass'y. Includes Ref# 52 Rotation Sensor
-
60504153181 ChaincaseChaincase
-
64504152629 Drive Chain, 104 LinksDrive Chain, 104 Links
-
66415080200 Hose, Polyurethane, iD 5.7mmHose, Polyurethane, iD 5.7mm
-
69415129528 Track Guide. Model N°: CBGATrack Guide. Model N°: CBGA
-
70504152651 Cleat. Model N°: CBGACleat. Model N°: CBGA
