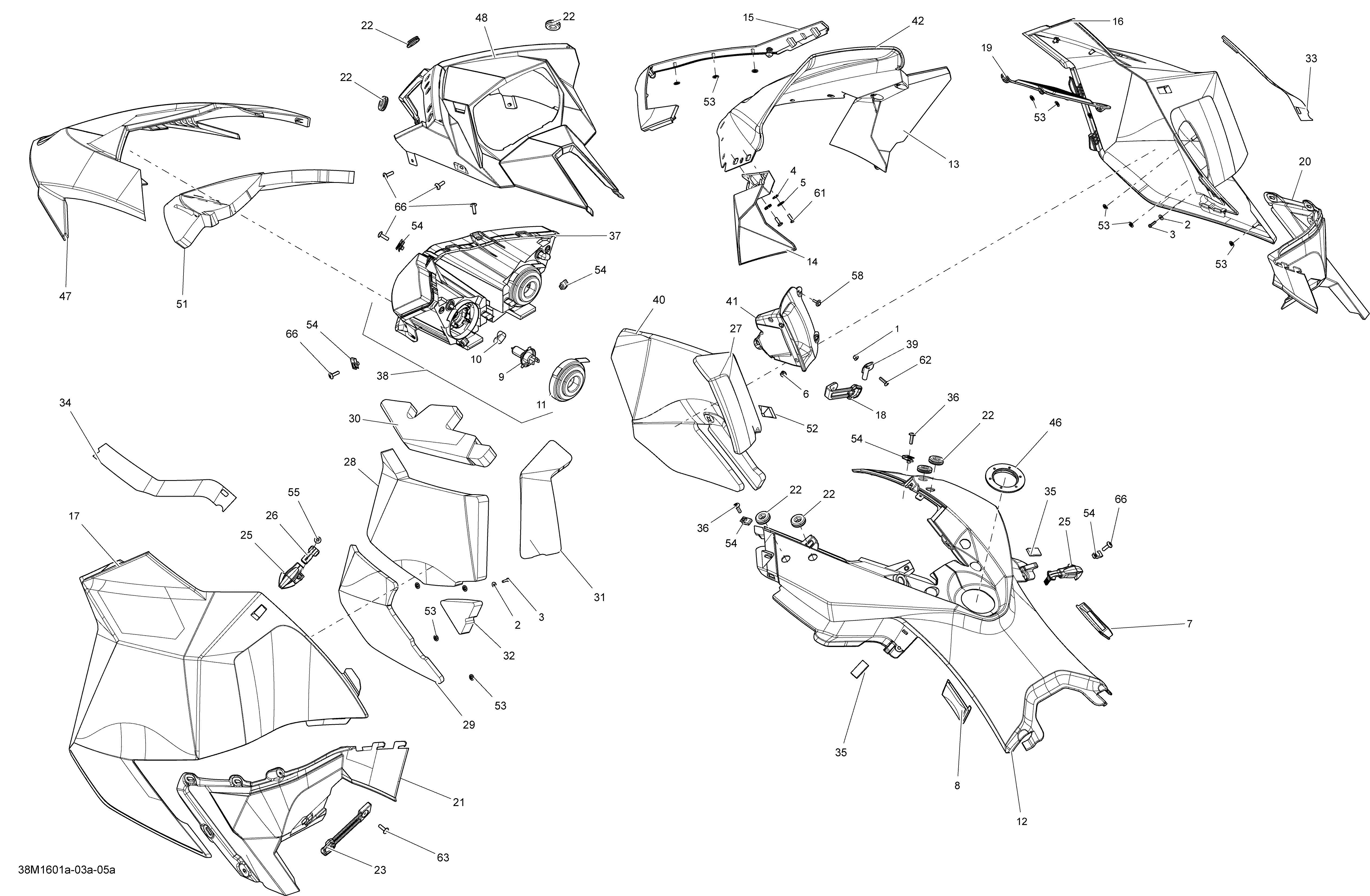

09- Hood - Package Sport для BRP Ski-Doo SUMMIT 800R P-TEK - 2016
-
№АртикулНазвание
-
1233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
2234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
3241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
4250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
5250200025 Washer M5Washer M5
-
6275500241 Black CapBlack Cap
-
7513033471 RH Panel ClipRH Panel Clip
-
8513033472 LH Panel ClipLH Panel Clip
-
9515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
10515176498 CapCap
-
11515176499 CoverCover
-
12517303923 Deep Black ConsoleDeep Black Console
-
12517305274 White ConsoleWhite Console
-
13517303604 RH Air DeflectorRH Air Deflector
-
14517303605 LH Air DeflectorLH Air Deflector
-
15517303607 Windshield SupportWindshield Support
-
16517304029 Deep Black RH PanelDeep Black RH Panel
-
17517304030 Deep Black LH PanelDeep Black LH Panel
-
18517303612 RH Panel LatchRH Panel Latch
-
19517303622 GrillGrill
-
20517303671 Deep Black RH Moulding PanelDeep Black RH Moulding Panel
-
21517303673 Deep Black LH Moulding PanelDeep Black LH Moulding Panel
-
22517303756 GrommetGrommet
-
23517303808 LH Panel LatchLH Panel Latch
-
25860200239 Black Latch KitBlack Latch Kit
-
26517303981 Panel LatchPanel Latch
-
27517304884 RH Panel Rear FoamRH Panel Rear Foam
-
28517304887 LH Panel Center FoamLH Panel Center Foam
-
29517304888 LH Panel Lower FoamLH Panel Lower Foam
-
30517304889 LH Panel Upper FoamLH Panel Upper Foam
-
31517304890 LH Panel Rear FoamLH Panel Rear Foam
-
32517304891 FoamFoam
-
33517304103 RH DecalRH Decal
-
34517304104 LH DecalLH Decal
-
35517304105 Console DecalConsole Decal
-
36250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
37517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
38517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
39517304221 Latch SupportLatch Support
-
40517304883 RH Center FoamRH Center Foam
-
41517304322 Black RH ConsoleBlack RH Console
-
42517304395 Windsheld 375mmWindsheld 375mm
-
46517304518 Console NutConsole Nut
-
47517304530 Deep Black HoodDeep Black Hood
-
48517304575 Gauge SupportGauge Support
-
51517304913 Hood FoamHood Foam
-
52517305451 Heat ShieldHeat Shield
-
53732610072 Push NutPush Nut
-
54250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
55250000721 Torx ScrewTorx Screw
-
58250000725 Screw M4 X 16Screw M4 X 16
-
61250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
62250000792 Torx Screw M5 X 20Torx Screw M5 X 20
-
62250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
66250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
