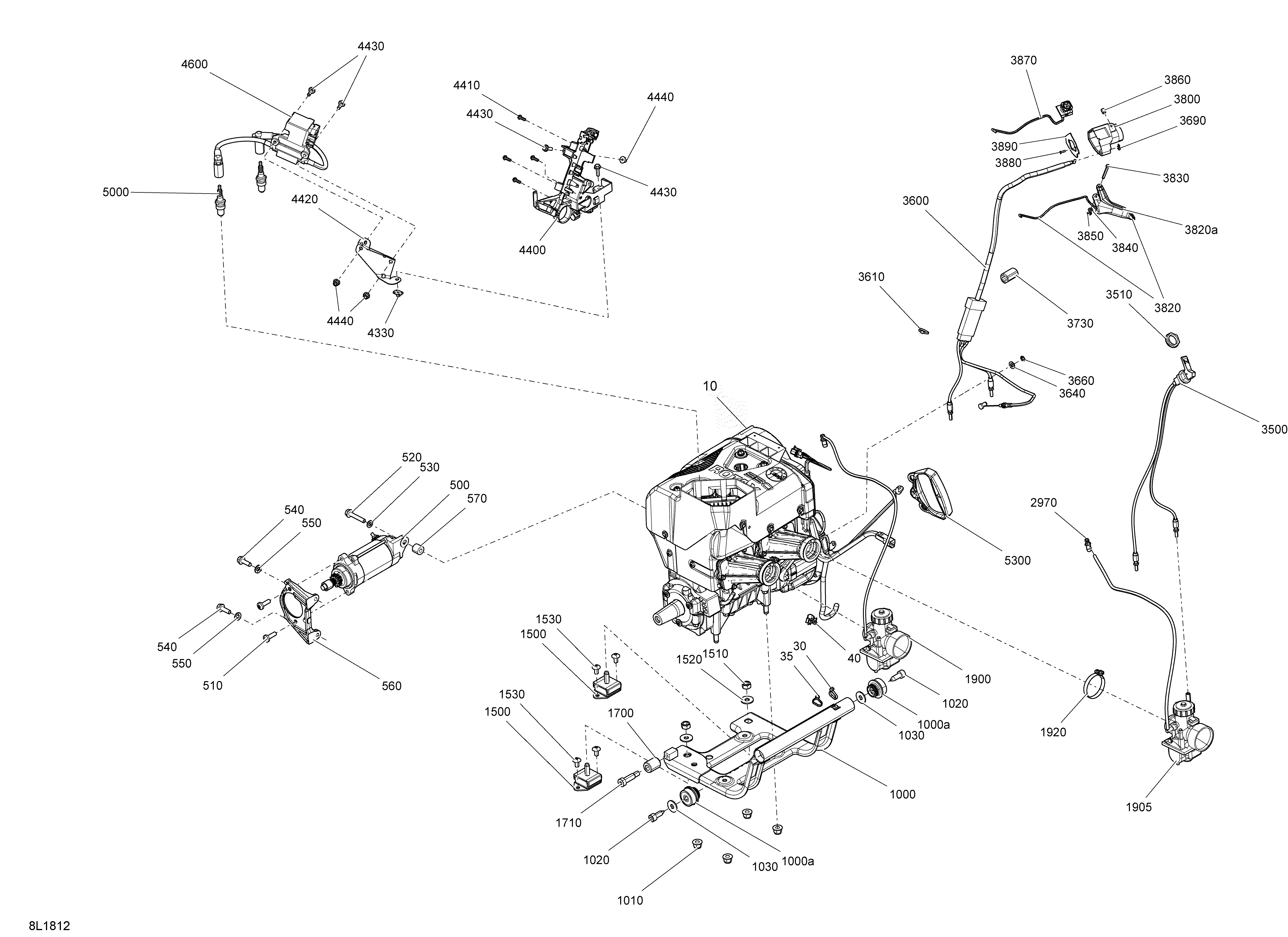

01- Engine Skandic - 550F для BRP Ski-Doo 1- SKANDIC 550F - 2018
-
№АртикулНазвание
-
20508000884 Heat Shield. Package SWT. Note ShownHeat Shield. Package SWT. Note Shown
-
30414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
40515176795 ClipClip
-
500515177389 Starter. Includes 500 to 500,004Starter. Includes 500 to 500,004
-
500.001415129441 Clutch Kit. Not ShownClutch Kit. Not Shown
-
500.002415129333 Brush Kit. Not ShownBrush Kit. Not Shown
-
500.003415129341 Starter Bolt. Not ShownStarter Bolt. Not Shown
-
500.004415129342 O-Ring Kit. Not ShownO-Ring Kit. Not Shown
-
510250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
520207584544 Hex. Flanged Screw M8 X 45, Scotch GripHex. Flanged Screw M8 X 45, Scotch Grip
-
530250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
540207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
550234281474 Conical Spring Washer M8Conical Spring Washer M8
-
560512060656 SupportSupport
-
570515176597 SpacerSpacer
-
1000512060637 Engine Support Ass'yEngine Support Ass'y
-
1010233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
1020250000094 Screw M10 X 30Screw M10 X 30
-
1030250200014 Flat Washer M10Flat Washer M10
-
1500512060564 Rubber MountRubber Mount
-
1510232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
1520250200014 Flat Washer M10Flat Washer M10
-
1530250000746 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
1700512060395 StopperStopper
-
1710250000463 Socket Head Screw, Scotch GripSocket Head Screw, Scotch Grip
-
1900403138814 Carburetor VM30-219, PTOCarburetor VM30-219, PTO
-
1905403138813 Carburetor VM30-218, MAGCarburetor VM30-218, MAG
-
1920512059834 Gemi ClampGemi Clamp
-
2970414814100 Male ConnectorMale Connector
-
3500512060676 Choke CableChoke Cable
-
3510512060671 Plastic NutPlastic Nut
-
3600512060885 Throttle CableThrottle Cable
-
3610414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3611293850117 Rubber StrapRubber Strap
-
3640234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
3660414753500 CirclipCirclip
-
3690414274500 CirclipCirclip
-
3800512060603 Throttle HousingThrottle Housing
-
3820512061251 Handle Ass'yHandle Ass'y
-
3830414438700 Lever PinLever Pin
-
3840234051600 Flat Washer M5, StainlessFlat Washer M5, Stainless
-
3850293370050 CirclipCirclip
-
3860414440800 Socket Set Screw M8 X 10Socket Set Screw M8 X 10
-
3870515177362 Kill SwitchKill Switch
-
3880250000756 Torx Truss Screw M2 X 12Torx Truss Screw M2 X 12
-
3890512060390 PlatePlate
-
4330293100003 Nut M6Nut M6
-
4400512060924 Coils SupportCoils Support
-
4410241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
4420512060460 Support CoilsSupport Coils
-
4430207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4440233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4600512060324 Calibrated ModuleCalibrated Module
-
5000512059552 Spark Plug, NGK BR9ECS-5Spark Plug, NGK BR9ECS-5
-
5300512060136 Starter GripStarter Grip
