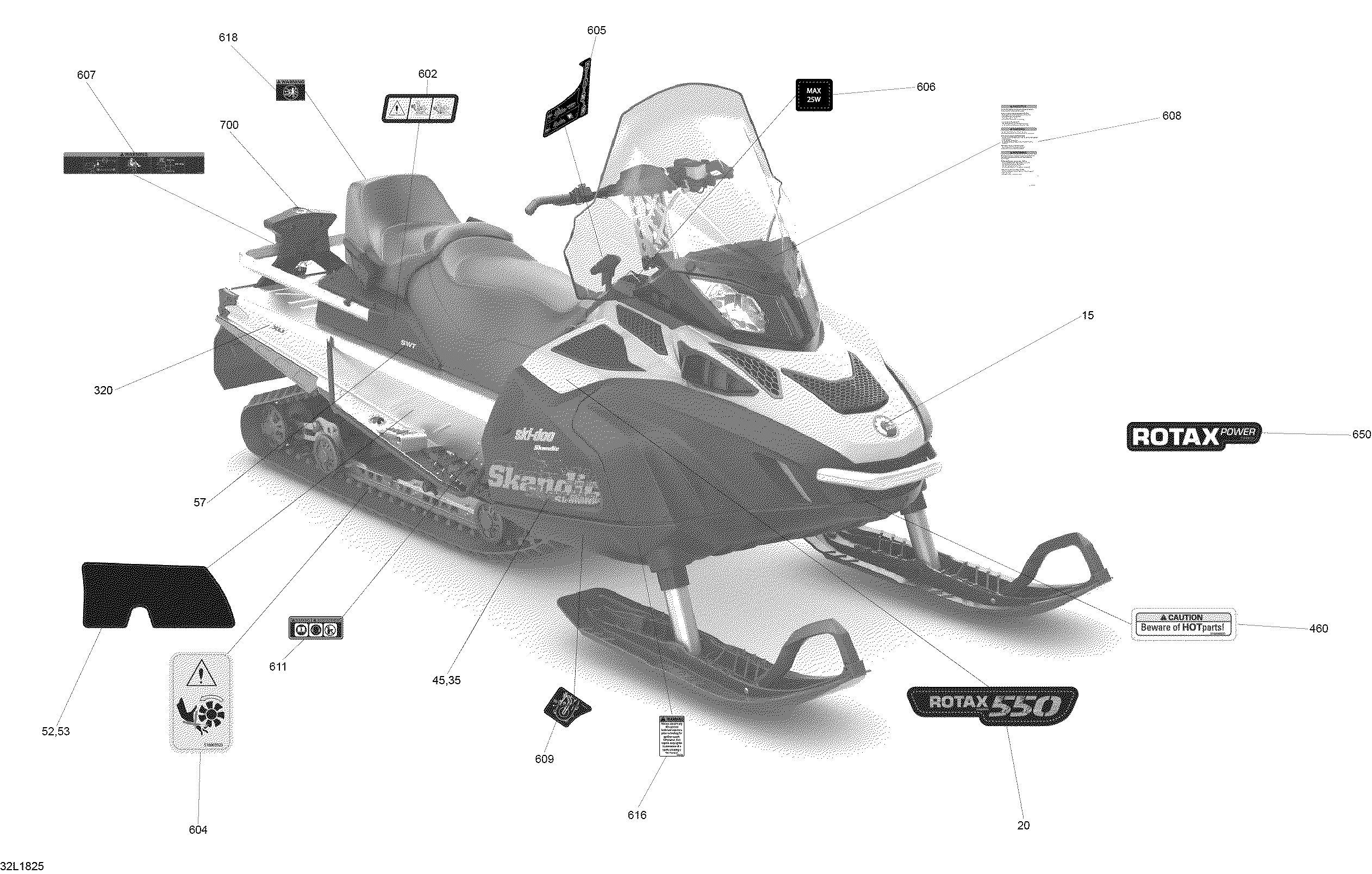

09- Decals Scandic - SWT - 550F для BRP Ski-Doo 1- SKANDIC 550F - 2018
-
№АртикулНазвание
-
15516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
20516004543 Rotax Hood DecalRotax Hood Decal
-
35516006799 LH Sidepanel DecalLH Sidepanel Decal
-
45516006800 RH Sidepanel DecalRH Sidepanel Decal
-
52516005121 Decal, Tunnel RHDecal, Tunnel RH
-
53516005122 Decal, Tunnel LHDecal, Tunnel LH
-
57516005048 REV SWT DecalREV SWT Decal
-
320516007167 REV XU DecalREV XU Decal
-
460516006903 Hot Parts DecalHot Parts Decal
-
602516005111 Instruction Decal, Back Seat LockingInstruction Decal, Back Seat Locking
-
604516003923 Warning DecalWarning Decal
-
605516004305 Instruction Label, TransmissionInstruction Label, Transmission
-
606516003918 Power Outlet Decal (25W)Power Outlet Decal (25W)
-
607516008675 Warning LabelWarning Label
-
608516006403 Instruction/Warning Decal, FI/SWE/ENInstruction/Warning Decal, FI/SWE/EN
-
609516003925 Checking Label, TransmissionChecking Label, Transmission
-
611516002703 Decal, EuropeDecal, Europe
-
616516005583 Warning Decal, InjectorsWarning Decal, Injectors
-
618516007584 Warning DecalWarning Decal
-
650516006331 Rotax Power DecalRotax Power Decal
-
700516006887 BRP Logo, 48 mmBRP Logo, 48 mm
