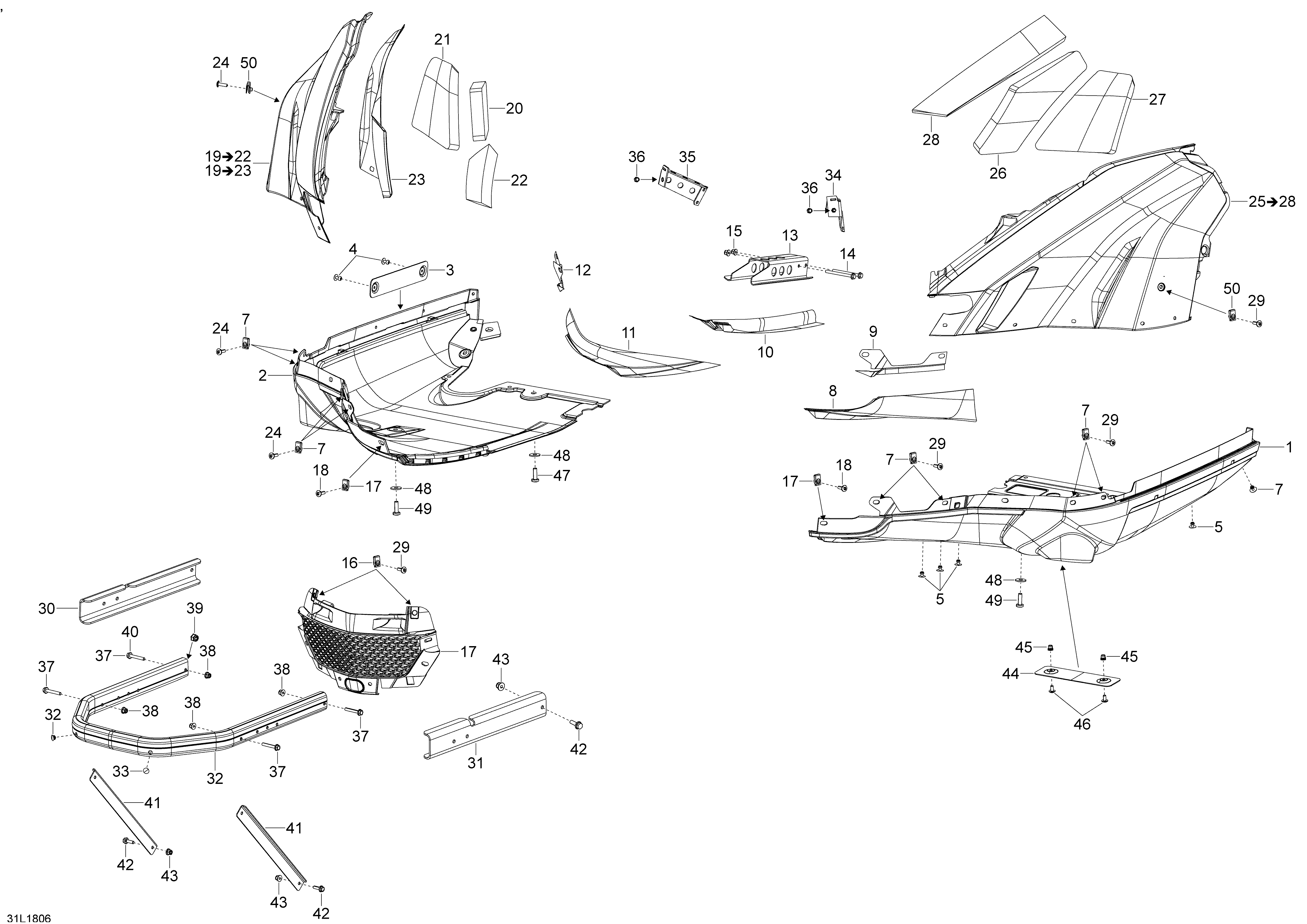

09- Bottom Pan Skandic - SWT - 550F для BRP Ski-Doo 1- SKANDIC 550F - 2018
-
№АртикулНазвание
-
1502007836 Bottom-pan Lower Lh.Bottom-pan Lower Lh.
-
2502007837 Bottom-pan Lower Rh.Bottom-pan Lower Rh.
-
3502007255 Heat Isolation PlateHeat Isolation Plate
-
4293150211 RivetRivet
-
8508000923 Heat ShieldHeat Shield
-
5293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517302785 ClipClip
-
7250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
11508000924 Heat ShieldHeat Shield
-
13502007688 SupportSupport
-
14207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16502007140 Front GrillFront Grill
-
17250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
19250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
19502007798 Bottom Pan, Rh Ass. B. Includes 19 to 21Bottom Pan, Rh Ass. B. Includes 19 to 21
-
20502007009 InsulatorInsulator
-
21508000925 Heat ShieldHeat Shield
-
24250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
25502007294 Black Bottom Pan Ass'y LH. Includes 25 to 28Black Bottom Pan Ass'y LH. Includes 25 to 28
-
26502007088 InsulatorInsulator
-
27502007131 InsulatorInsulator
-
28502007185 InsulatorInsulator
-
29250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
32502007684 Clear Anod. BumperClear Anod. Bumper
-
33293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
34502007648 LH Bottom Pan FastenerLH Bottom Pan Fastener
-
35502007629 RH Bottom Pan FastenerRH Bottom Pan Fastener
-
36605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
37207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
38233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
41502007628 Bumper SupportBumper Support
-
42207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
43233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
44518328879 Oil PlateOil Plate
-
45605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
46250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
47250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
48234082410 Flat Washer 8 mmFlat Washer 8 mm
-
49250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
50250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
