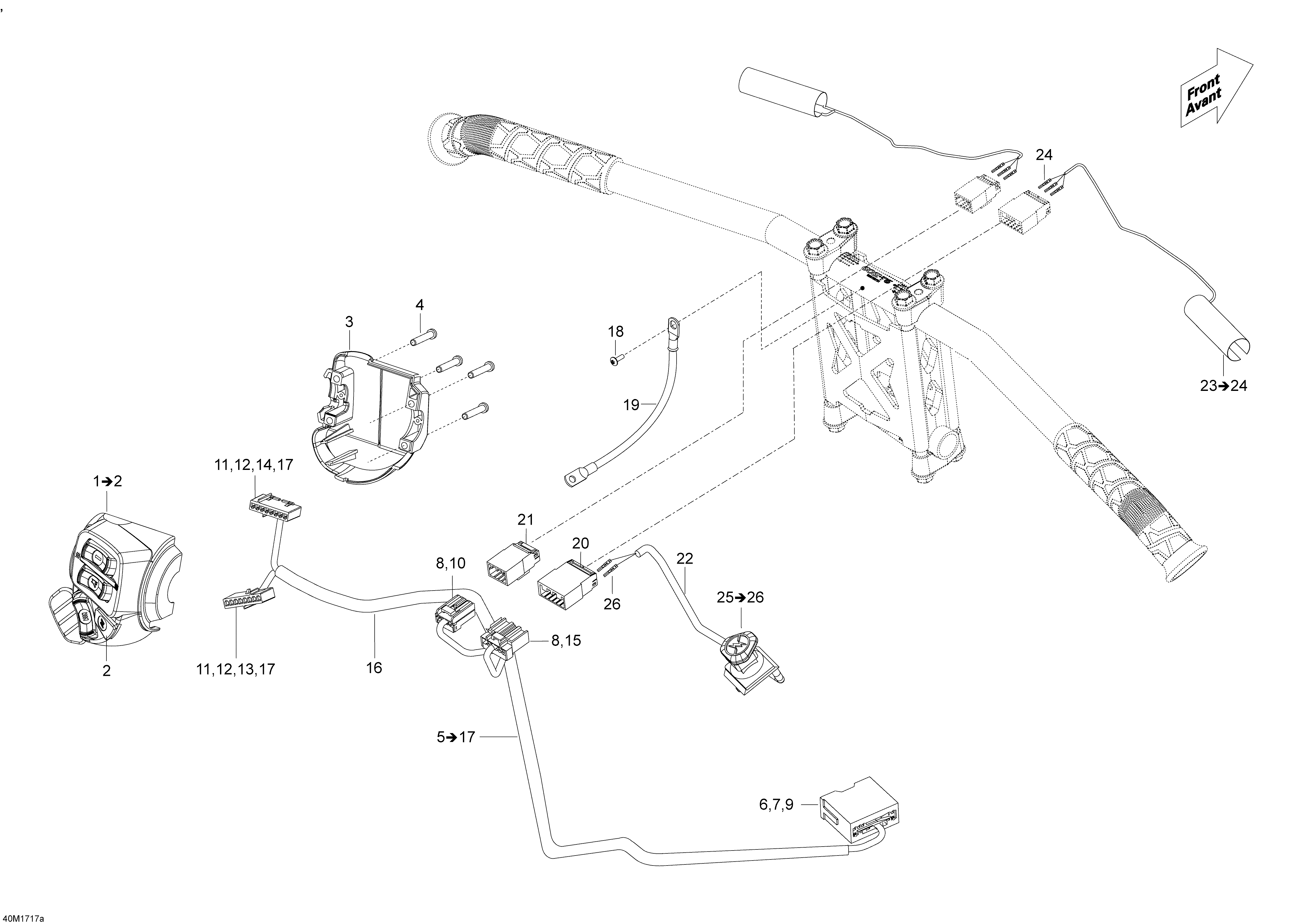

10- Steering Wiring Harness - 550F 2018 для BRP Ski-Doo 1- SKANDIC 550F - 2018
-
№АртикулНазвание
-
1515177028 Switch Housing. Includes 1 To 2Switch Housing. Includes 1 To 2
-
3515175926 Housing Switch PlateHousing Switch Plate
-
4250000263 Torx Screw #8-18Torx Screw #8-18
-
5515176995 Steering Wiring Harness Ass'y. Includes 5 To 17Steering Wiring Harness Ass'y. Includes 5 To 17
-
6515175232 Male TerminalMale Terminal
-
7515175273 Male TerminalMale Terminal
-
8515175231 Female TerminalFemale Terminal
-
9515175352 Male Terminal Housing, 13 CircuitsMale Terminal Housing, 13 Circuits
-
10515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
11515175808 Female TerminalFemale Terminal
-
12515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
13515175807 Female Terminal Housing 8 Circuits BlackFemale Terminal Housing 8 Circuits Black
-
14515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
15515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
16515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
17515175941 Female TerminalFemale Terminal
-
18250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
19515177668 Ground CableGround Cable
-
20515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
21515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
22515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
23506152467 Heating Element. Includes 23 To 24Heating Element. Includes 23 To 24
-
24515175232 Male TerminalMale Terminal
-
25515177362 Kill Switch. Includes 25 To 26Kill Switch. Includes 25 To 26
-
26515175232 Male TerminalMale Terminal
