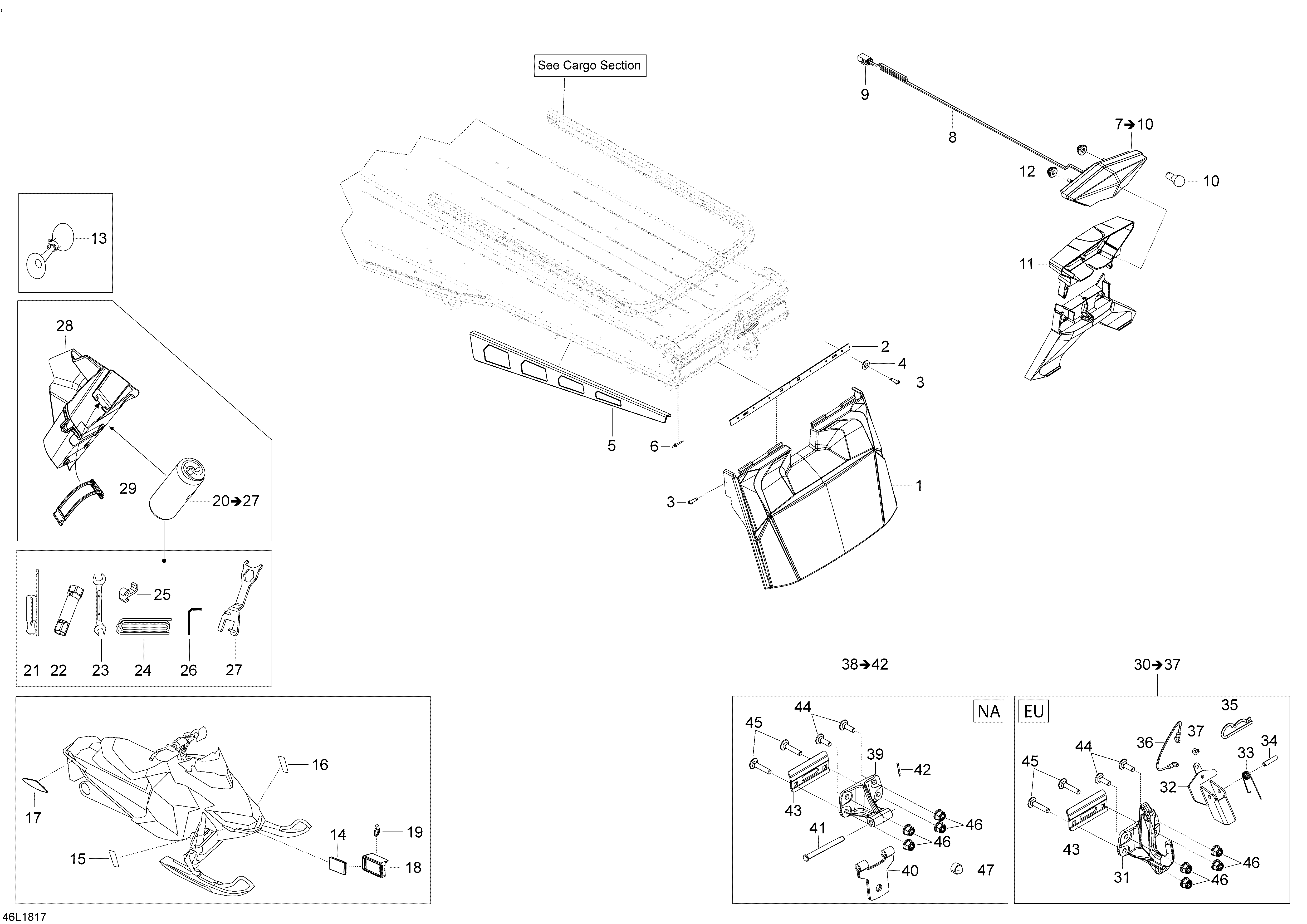

09- Utilities Skandic - 550F для BRP Ski-Doo 1- SKANDIC 550F - 2018
-
№АртикулНазвание
-
1520001405 Black, Snow Guard Short. Package WT & North AmericaBlack, Snow Guard Short. Package WT & North America
-
1520001411 Snow Guard. Package WT & EuropeSnow Guard. Package WT & Europe
-
1520001430 Snow Guard. Package SWTSnow Guard. Package SWT
-
2520001021 PlatePlate
-
2520001022 Plate. Package SWTPlate. Package SWT
-
3250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
5520000694 LH ProtectorLH Protector
-
6293150163 Rivet HucklokRivet Hucklok
-
7520000848 Rear Light. Includes 7 to 10Rear Light. Includes 7 to 10
-
8520000849 Rear Wiring HarnessRear Wiring Harness
-
8.1520000677 Wiring Harness Ass'y. Not ShownWiring Harness Ass'y. Not Shown
-
10520000758 BulbBulb
-
11511000764 Rear Light CoverRear Light Cover
-
12705003666 Rubber GrommetRubber Grommet
-
13549011291 Horn. EuropeHorn. Europe
-
1421118 Reflector (Bright). EuropeReflector (Bright). Europe
-
15520001600 Yellow RH ReflectorYellow RH Reflector
-
16520001601 Yellow LH ReflectorYellow LH Reflector
-
17705002423 Amber Lateral Reflector. EuropeAmber Lateral Reflector. Europe
-
17705003412 Red Lateral Reflector. North AmericaRed Lateral Reflector. North America
-
18520000871 Reflector Support. EuropeReflector Support. Europe
-
1927120 Tie Rap. EuropeTie Rap. Europe
-
20529000077 Tool KitTool Kit
-
28520000894 Tool Kit RackTool Kit Rack
-
29520000528 LatchLatch
-
30520001774 Hitch Ass'y. Europe. Includes 30 to 37,2Hitch Ass'y. Europe. Includes 30 to 37,2
-
32520001775 Locking Plate. EuropeLocking Plate. Europe
-
34520001810 Clevis Pin. EuropeClevis Pin. Europe
-
3541029 Hair pin. EuropeHair pin. Europe
-
37390909100 Avex Rivet. EuropeAvex Rivet. Europe
-
37.1520001811 Washer. Europe. Not ShownWasher. Europe. Not Shown
-
37.2520001812 Cotter Pin. Europe. Not ShownCotter Pin. Europe. Not Shown
-
38520001398 Hitch Ass'y. North America. Includes 38 to 42Hitch Ass'y. North America. Includes 38 to 42
-
41560309200 Pin-Retainer. North AmericaPin-Retainer. North America
-
4241031 Cotter Pin. North AmericaCotter Pin. North America
-
43520000727 PlatePlate
-
44207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
45207784044 Bolt Carriage M8 X 40Bolt Carriage M8 X 40
-
46233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4728056 Cover. North AmericaCover. North America
-
60520001766 Support Tape. Not ShownSupport Tape. Not Shown
