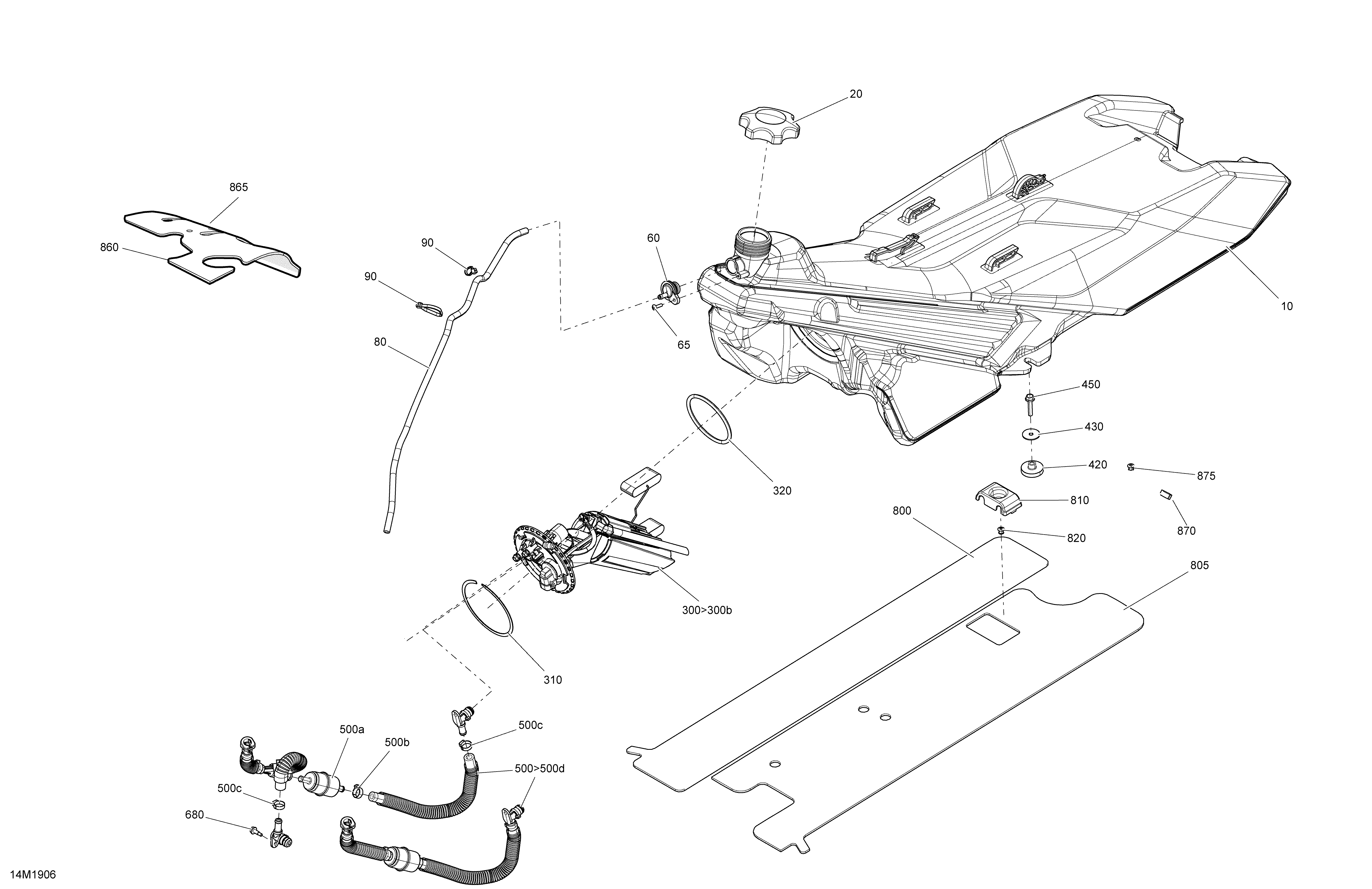

02- Fuel - North America для BRP Ski-Doo 003 - EXPEDITION SPORT 900 ACE - 2019
-
№АртикулНазвание
-
10513033955 Fuel TankFuel Tank
-
15513033959 Tube Ass'yTube Ass'y
-
20513033720 Fuel Tank Cap, 87 OctaneFuel Tank Cap, 87 Octane
-
60513033849 Check ValveCheck Valve
-
65250000918 Truss Torx Screw K40 X 16Truss Torx Screw K40 X 16
-
80415080200 Hose, Polyurethane, iD 5.7mm (10M Roll)Hose, Polyurethane, iD 5.7mm (10M Roll)
-
90414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
95414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
100504153074 Protector TubeProtector Tube
-
300513033773 Fuel Pump. Includes 300 to 300bFuel Pump. Includes 300 to 300b
-
300a415130069 Gas FilterGas Filter
-
300b415130087 Fuel Level SensorFuel Level Sensor
-
310513033798 CirclipCirclip
-
320513033862 O-RingO-Ring
-
420513033807 BushingBushing
-
430503193995 WasherWasher
-
450207563544 Screw H Flange S.Grip M6 X 35Screw H Flange S.Grip M6 X 35
-
500513033938 Hose Ass'y. Includes 500 to 500fHose Ass'y. Includes 500 to 500f
-
500a513033719 FilterFilter
-
500b293650125 Oetiker ClampOetiker Clamp
-
500c293650053 Crimp ClampCrimp Clamp
-
500d513033668 O-RingO-Ring
-
500e513033910 RingRing
-
500f293710105 Elbow Fitting 90°Elbow Fitting 90°
-
680250000911 Hex. Flanged Screw M5 X 16Hex. Flanged Screw M5 X 16
-
800513033913 Insulated FoamInsulated Foam
-
805513033914 Insulated FoamInsulated Foam
-
810513033826 Tank GuideTank Guide
-
820390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
860513033915 FoamFoam
-
865513033916 FoamFoam
-
870513033917 Retainer PlateRetainer Plate
-
875293150104 Pop Rivet 3/16''Pop Rivet 3/16''
