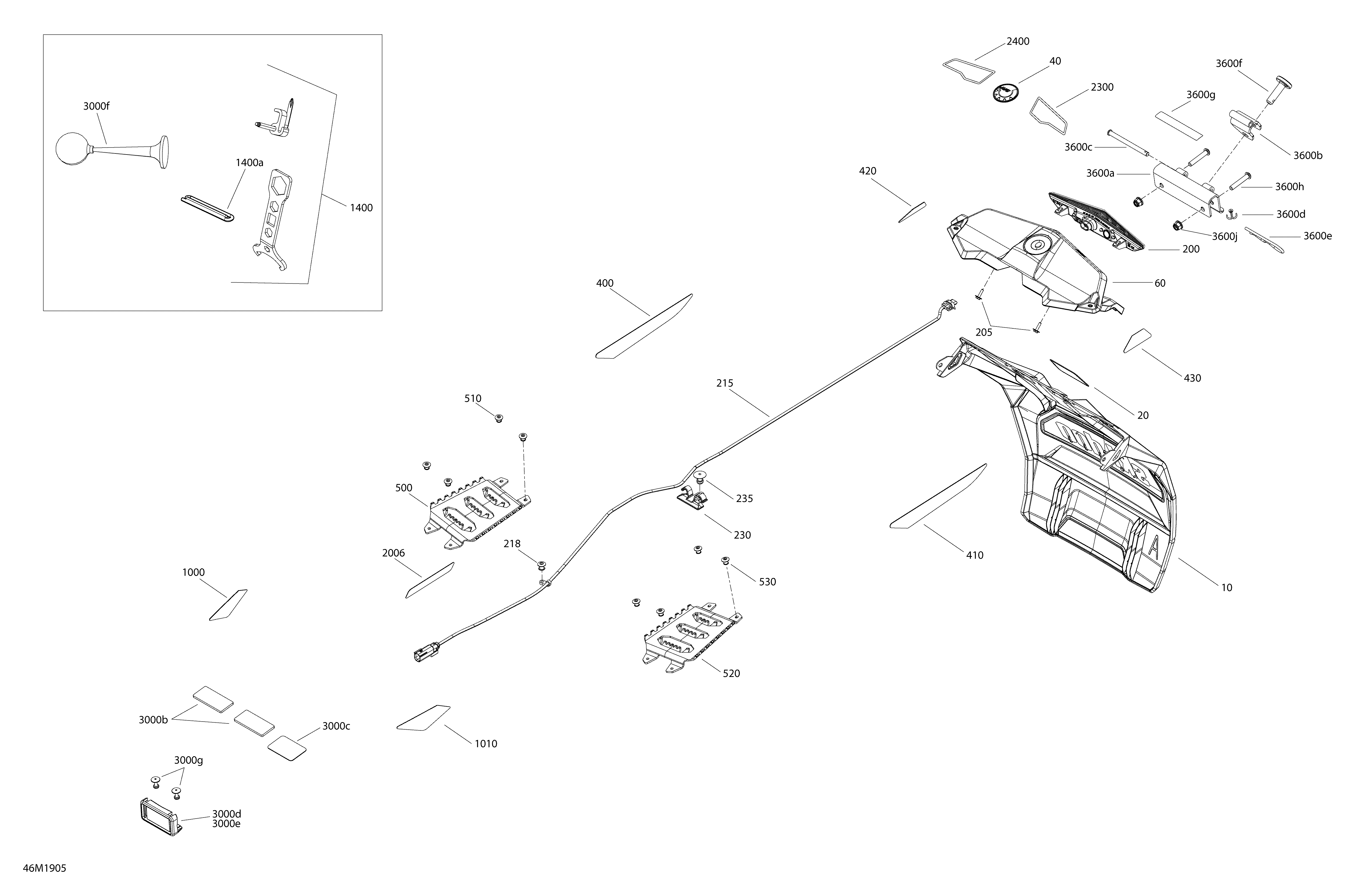

09- Utilities - North America для BRP Ski-Doo 003 - EXPEDITION SPORT 900 ACE - 2019
-
№АртикулНазвание
-
10520001863 Snow Gard Ass'ySnow Gard Ass'y
-
20516007645 Warning DecalWarning Decal
-
40516008738 BRP Logo, 48mmBRP Logo, 48mm
-
60520001487 Light FairingLight Fairing
-
200520001143 Rear LightRear Light
-
205250000725 Screw M4 X 16Screw M4 X 16
-
215515178267 Rear Light HarnessRear Light Harness
-
218390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
230520001722 CapCap
-
235293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
400520001900 Red, RH Rear ReflectorRed, RH Rear Reflector
-
410520001901 Red, LH Rear ReflectorRed, LH Rear Reflector
-
420520001842 Red, RH Rear ReflectorRed, RH Rear Reflector
-
430520001860 Red, LH Rear ReflectorRed, LH Rear Reflector
-
1000520001493 RH Front ReflectorRH Front Reflector
-
1010520001494 LH Front ReflectorLH Front Reflector
-
1400520001767 Tool KitTool Kit
-
2300516008594 Safety LabelSafety Label
-
2400516006892 RH English Warning DecalRH English Warning Decal
-
3600a511000768 SupportSupport
-
3600b511000521 Hitch Plate WeldedHitch Plate Welded
-
3600c511000520 Clevis PinClevis Pin
-
3600d371800200 Cotter PinCotter Pin
-
3600e516004568 Warning Decal, SecurityWarning Decal, Security
-
3600f205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
3600g233281466 Elastic Flang Nut M8Elastic Flang Nut M8
