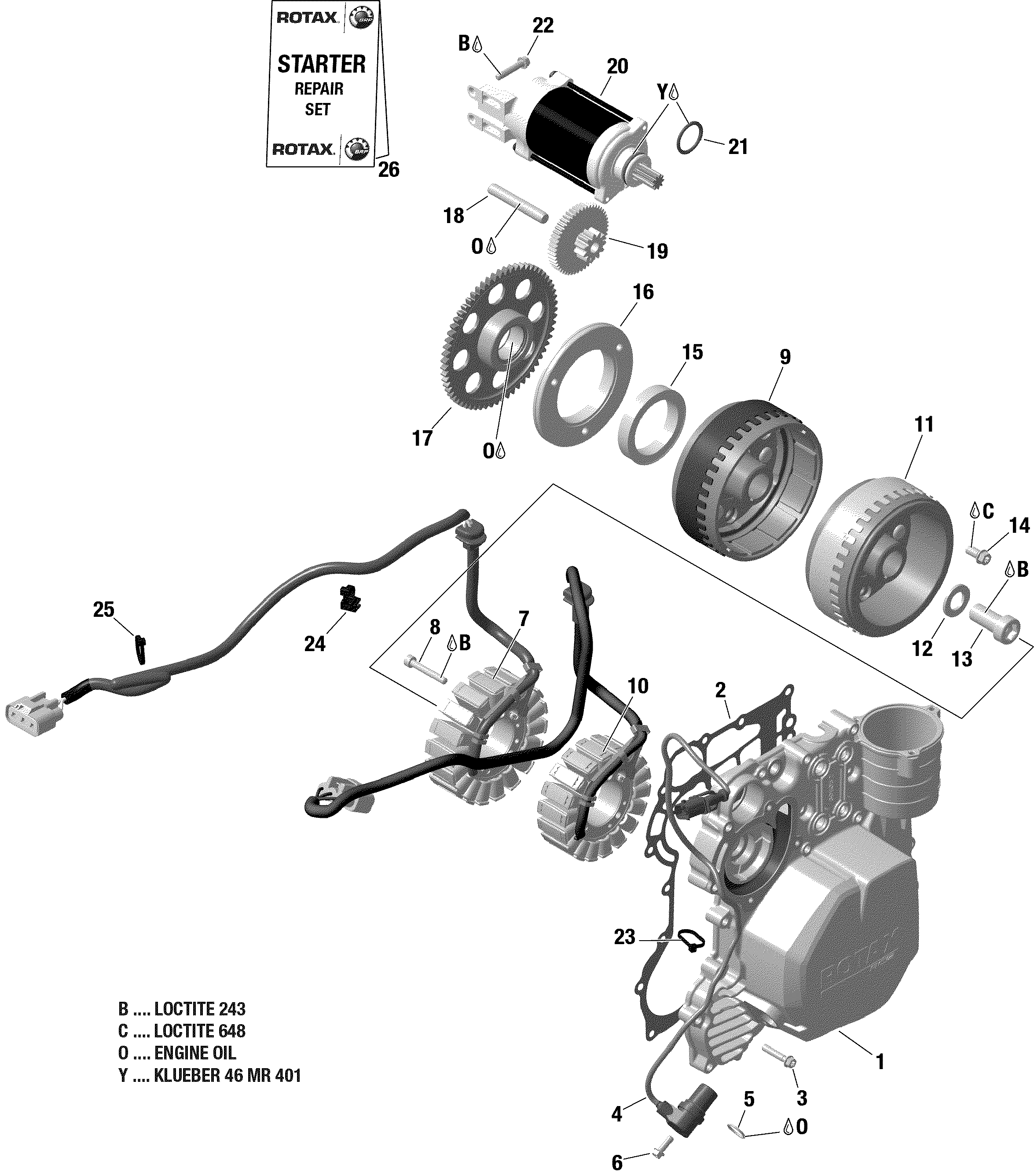

03- Magneto And Electric Starter 900 ACE для BRP Ski-Doo 003 - EXPEDITION SPORT 900 ACE - 2019
-
№АртикулНазвание
-
1420911055 Ignition CoverIgnition Cover
-
2420431640 GasketGasket
-
3420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
4>5420966570 Crankshaft Position Sensor Ass'yCrankshaft Position Sensor Ass'y
-
5420431580 O-RingO-Ring
-
6420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
8420241956 Allen Screw M6 X 40Allen Screw M6 X 40
-
10420296908 Stator Plate 420WStator Plate 420W
-
11420685702 FlywheelFlywheel
-
12420627270 ShimShim
-
13420241549 Socket Head Screw M16 X 35Socket Head Screw M16 X 35
-
14420440854 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
15420659111 Sprag ClutchSprag Clutch
-
16420659263 Sparg Clutch HousingSparg Clutch Housing
-
17420434238 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
18420229475 Needle PinNeedle Pin
-
19420634741 Double GearDouble Gear
-
20>21420892435 Electric Starter Ass'yElectric Starter Ass'y
-
21420250145 O-RingO-Ring
-
22420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
23420866714 Tie RapTie Rap
-
25420866714 Tie RapTie Rap
-
26420881149 Starter Repair KitStarter Repair Kit
