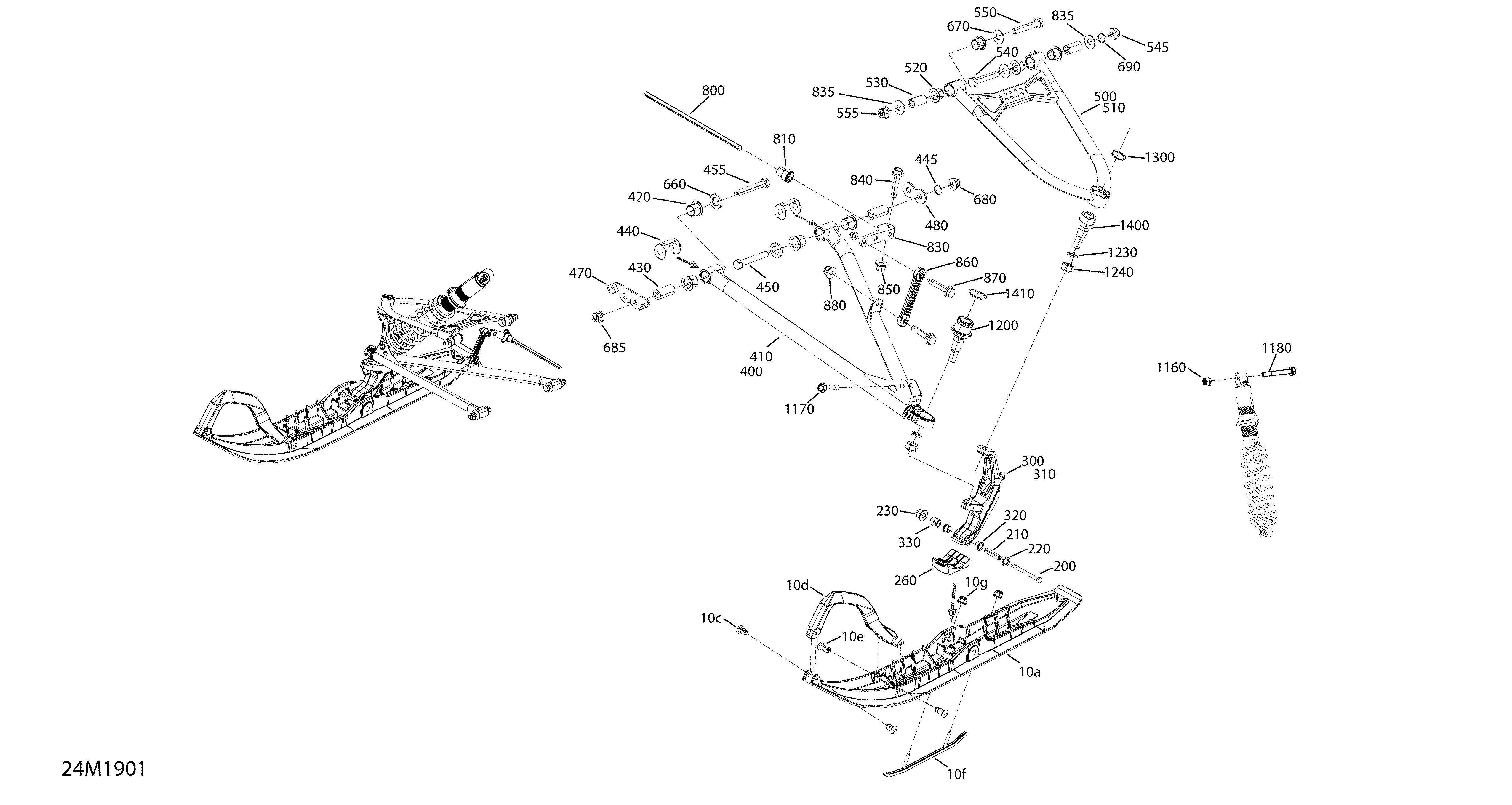

07- Front Suspension And Ski - REV GEN4 для BRP Ski-Doo 003 - EXPEDITION SPORT 900 ACE - 2019
-
№АртикулНазвание
-
10a505073227 Black, DS 2 SkiBlack, DS 2 Ski
-
10c505071812 Retainer 17mm longRetainer 17mm long
-
10d505072976 Black, HandleBlack, Handle
-
10e505072133 Retainer 23mm LongRetainer 23mm Long
-
10f860201044 Carbide Runner Kit (Square Runner)Carbide Runner Kit (Square Runner)
-
10g233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210505073691 Ski AxleSki Axle
-
220503192496 WasherWasher
-
230233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
260505072594 Ski StopperSki Stopper
-
300505074557 LH Anodized Ski LegLH Anodized Ski Leg
-
310505074558 RH Anodized Ski LegRH Anodized Ski Leg
-
320505072690 Leg BushingLeg Bushing
-
330503193651 SpacerSpacer
-
400505074085 Lower Arm RHLower Arm RH
-
410505074084 Lower Arm LHLower Arm LH
-
420505072208 BushingBushing
-
430505072209 SleeveSleeve
-
440505072634 Wear PlateWear Plate
-
445505072448 O-RingO-Ring
-
450250001024 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
455250001024 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
470505073723 Wear PlateWear Plate
-
480505073844 PlatePlate
-
500505074611 LH Upper Arm 39''LH Upper Arm 39''
-
510505074612 RH Upper Arm 39''RH Upper Arm 39''
-
520505072250 BushingBushing
-
530505072143 SleeveSleeve
-
540250001023 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
545250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
550250001023 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
555250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
685250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
800505073819 StabilizerStabilizer
-
810505072064 BushingBushing
-
830505073731 Stabilisator LeverStabilisator Lever
-
835505072392 WasherWasher
-
840207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
860505072204 Sway Bar Double Joint LinkSway Bar Double Joint Link
-
870207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1160233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
1170250000824 Hexagonal Flange Screw M8 X 58Hexagonal Flange Screw M8 X 58
-
1180250000824 Hexagonal Flange Screw M8 X 58Hexagonal Flange Screw M8 X 58
-
1200505074009 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12 X 1.25Hex Elastic Nut M12 X 1.25
-
1300293370070 CirclipCirclip
-
1400505072913 Upper Ball JointUpper Ball Joint
-
1410293370098 Snap RingSnap Ring
-
3000224061201 Flat Washer. Not ShownFlat Washer. Not Shown
-
3010503192771 Black, Wheel Cap. Not ShownBlack, Wheel Cap. Not Shown
-
3020503192496 Washer. Not ShownWasher. Not Shown
-
3030233201464 Hex. Elast. Flanged Nut M10 x 1.5. Not ShownHex. Elast. Flanged Nut M10 x 1.5. Not Shown
-
3040505072594 Ski Stopper. Not ShownSki Stopper. Not Shown
-
3050233201464 Hex. Elast. Flanged Nut M10 x 1.5. Not ShownHex. Elast. Flanged Nut M10 x 1.5. Not Shown
