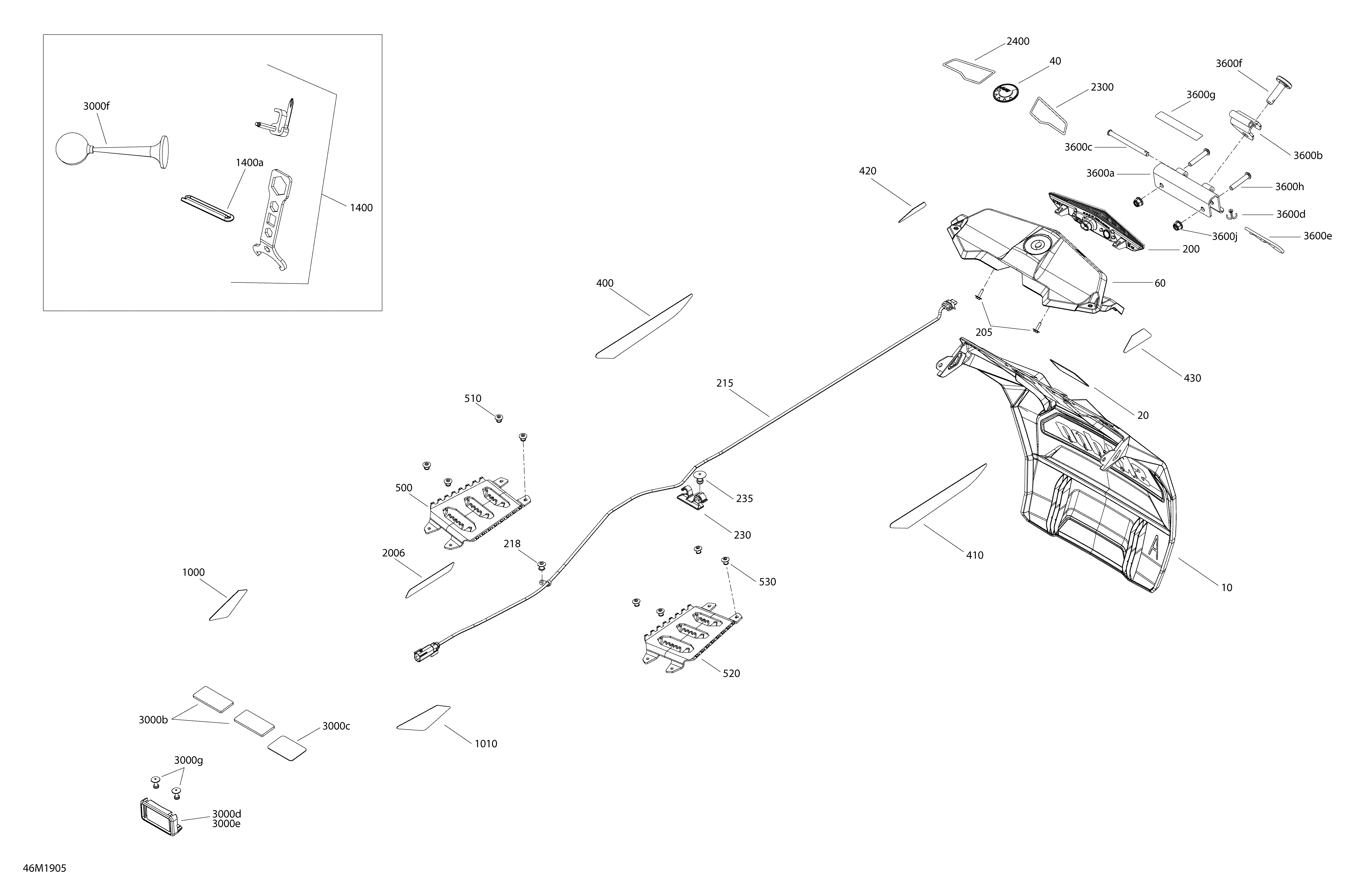

09- Utilities - Europe для BRP Ski-Doo 003 - EXPEDITION SPORT 900 ACE - 2019
-
№АртикулНазвание
-
10520001863 Snow Gard Ass'ySnow Gard Ass'y
-
20516007645 Warning DecalWarning Decal
-
40516008738 BRP Logo, 48mmBRP Logo, 48mm
-
60520001487 Light FairingLight Fairing
-
200520001143 Rear LightRear Light
-
205250000725 Screw M4 X 16Screw M4 X 16
-
215515178267 Rear Light HarnessRear Light Harness
-
218390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
230520001722 CapCap
-
235293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
400861805523 LH Rear ReflectorLH Rear Reflector
-
410861805523 LH Rear ReflectorLH Rear Reflector
-
420520001862 LH Rear Amber ReflectorLH Rear Amber Reflector
-
430520001861 LH Rear Amber ReflectorLH Rear Amber Reflector
-
500520001883 Passenger FootrestPassenger Footrest
-
510390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
520520001883 Passenger FootrestPassenger Footrest
-
530390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
1000520001493 RH Front ReflectorRH Front Reflector
-
1010520001494 LH Front ReflectorLH Front Reflector
-
1400520001767 Tool KitTool Kit
-
1400a529017500 Rope StarterRope Starter
-
2006516008823 Europe DecalEurope Decal
-
2300516008594 Safety LabelSafety Label
-
2400516006892 RH English Warning DecalRH English Warning Decal
-
3000b520000271 Amber, ReflectorAmber, Reflector
-
3000c415037900 White, ReflectorWhite, Reflector
-
3000d520001787 Reflector Support. Includes 3000d to 3000eReflector Support. Includes 3000d to 3000e
-
3000e520000871 Deep Black, Reflector SupportDeep Black, Reflector Support
-
3000f549011291 HornHorn
-
3000g293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
3600a511000554 SupportSupport
-
3600b511000588 Hitch PlateHitch Plate
-
3600c511000520 Clevis PinClevis Pin
-
3600d371800200 Cotter PinCotter Pin
-
3600e114045200 Hair PinHair Pin
-
3600f511000555 PinPin
-
3600g516004568 Warning Decal, SecurityWarning Decal, Security
-
3600h205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
3600j233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
