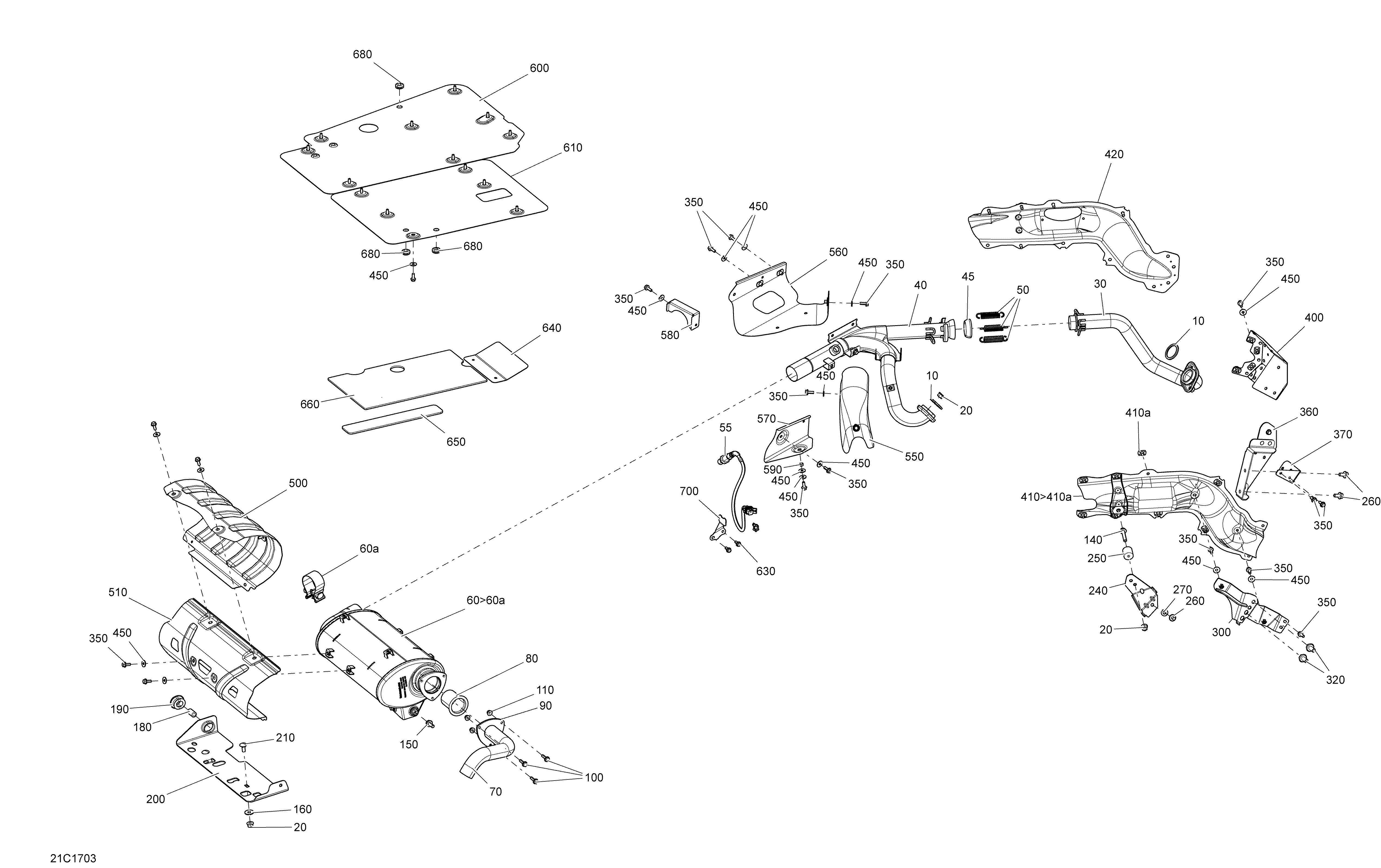

01- Exhaust System - Before December 2016 для BRP Traxter MAX - 2017
-
№АртикулНазвание
-
10707600317 GasketGasket
-
20233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
30707601903 Front Exhaust Pipe. Engine HD10Front Exhaust Pipe. Engine HD10
-
30707601913 Front Exhaust Pipe. Engine HD8Front Exhaust Pipe. Engine HD8
-
40707601812 Rear Exhaust Pipe. Engine HD10Rear Exhaust Pipe. Engine HD10
-
40707601813 Rear Exhaust Pipe. Engine HD8Rear Exhaust Pipe. Engine HD8
-
45707601814 Exhaust GasketExhaust Gasket
-
50707601834 SpringSpring
-
55707600872 Oxygen SensorOxygen Sensor
-
60>60a707601770 Muffler. Includes 60 to 60aMuffler. Includes 60 to 60a
-
60a293650228 Exhaust Pipe ClampExhaust Pipe Clamp
-
70707601526 Exhaust Tail PipeExhaust Tail Pipe
-
80707601803 Spark ArrestorSpark Arrestor
-
90707601799 GasketGasket
-
100207662556 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
110233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
140207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
150207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
160234082410 Flat Washer 8 mmFlat Washer 8 mm
-
170233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
180707601901 SpacerSpacer
-
190707601902 Rubber MountRubber Mount
-
200707601588 Muffler SupportMuffler Support
-
210207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
220233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
230234082410 Flat Washer 8 mmFlat Washer 8 mm
-
240707602003 Heat Shield SupportHeat Shield Support
-
250707601910 SpacerSpacer
-
260207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
270234281474 Conical Spring Washer M8Conical Spring Washer M8
-
280207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
290233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
300707601856 Heat Shield SupportHeat Shield Support
-
320207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
330234281474 Conical Spring Washer M8Conical Spring Washer M8
-
340207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
350207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
360707601858 Heat Shield SupportHeat Shield Support
-
370707601912 BraceBrace
-
400707601853 Heat ShieldHeat Shield
-
410>410a707601859 Heat Shield. Includes 410 to 410aHeat Shield. Includes 410 to 410a
-
410a293100003 Nut M6Nut M6
-
420707602069 Lateral Heat ShieldLateral Heat Shield
-
440207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
450234062410 Flat Washer 6 mmFlat Washer 6 mm
-
460234062410 Flat Washer 6 mmFlat Washer 6 mm
-
470250000906 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
500707601521 Heat ShieldHeat Shield
-
510707602170 Heat ShieldHeat Shield
-
550707601523 Pipe ProtectorPipe Protector
-
560707601848 Heat ShieldHeat Shield
-
570707601849 Heat ShieldHeat Shield
-
580707601911 BraceBrace
-
590232061414 Hex. Nut M6Hex. Nut M6
-
600707602083 Heat ShieldHeat Shield
-
610707601759 Heat ShieldHeat Shield
-
620234062410 Flat Washer 6 mmFlat Washer 6 mm
-
630210261640 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
640707601970 Heat ShieldHeat Shield
-
650707601921 Reflective SheetReflective Sheet
-
660707602032 Reflective SheetReflective Sheet
-
680709000582 GrommetGrommet
-
700707602025 Connector SupportConnector Support
-
710210261640 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
720710005529 Dart MountDart Mount
