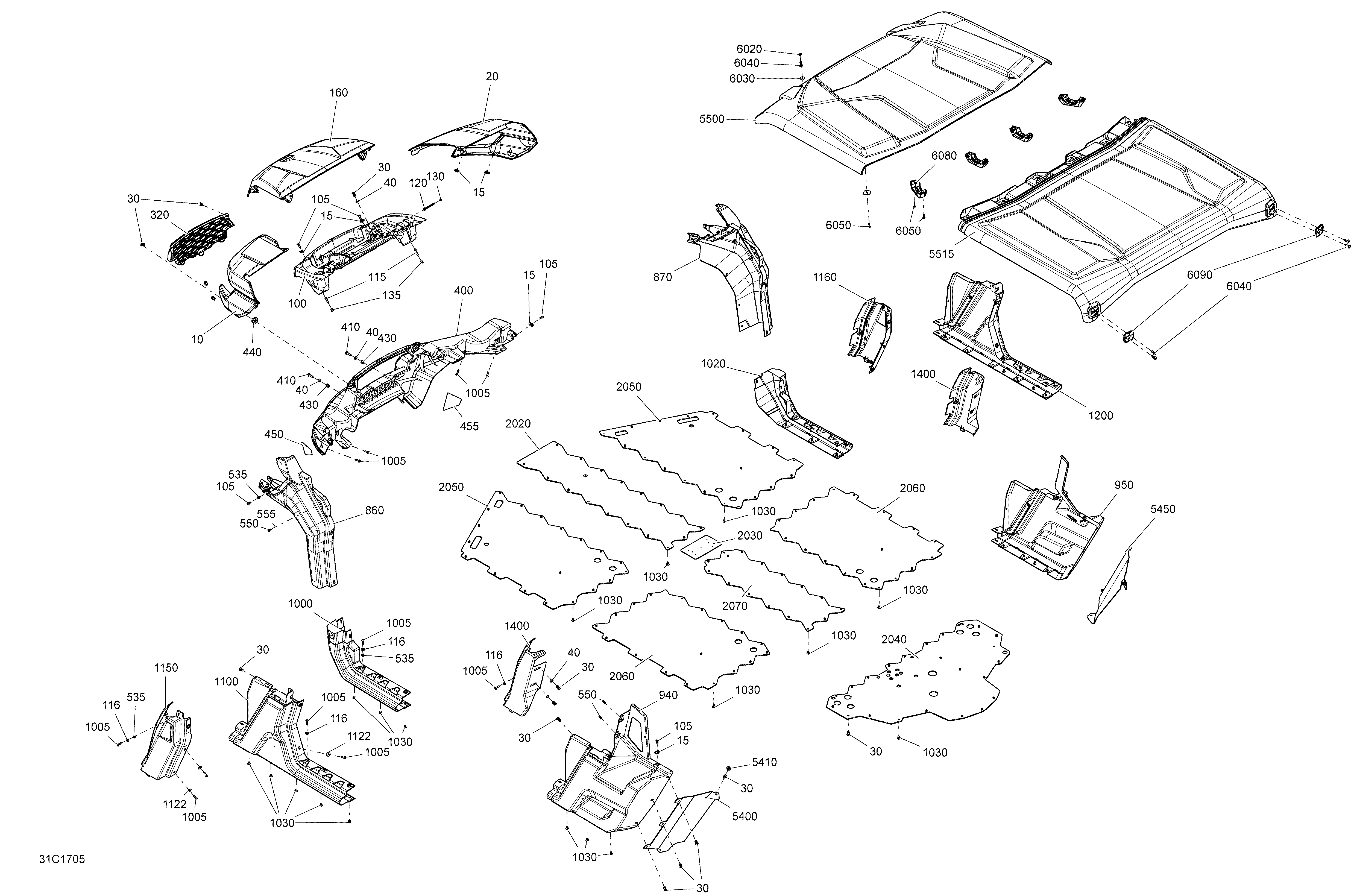

09- Body And Accessories - All Models для BRP Traxter MAX - 2017
-
№АртикулНазвание
-
10705008144 Green LH Front FenderGreen LH Front Fender
-
10705011409 Magnesium LH Front FenderMagnesium LH Front Fender
-
15250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
20705008145 Green RH Front FenderGreen RH Front Fender
-
20705011410 Magnesium RH Front FenderMagnesium RH Front Fender
-
30293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
40503192494 WasherWasher
-
100705011391 Service CenterService Center
-
105250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
115210263050 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
116234062670 Flat Washer, StainlessFlat Washer, Stainless
-
120207667554 Screw Hex Flange M6 X 75Screw Hex Flange M6 X 75
-
130732610072 Push NutPush Nut
-
135293900125 BushingBushing
-
160705008149 Green Front Service CoverGreen Front Service Cover
-
160705011401 Magnesium Front Service CoverMagnesium Front Service Cover
-
320705009364 Grid Front FasciaGrid Front Fascia
-
400705011392 Front FaciaFront Facia
-
410250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
430233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
440705010718 GrommetGrommet
-
450704905072 LH Front ReflectorLH Front Reflector
-
455704905073 RH Front ReflectorRH Front Reflector
-
535293450274 InsertInsert
-
550250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
555234051670 Flat Washer M5Flat Washer M5
-
860705008152 LH Front Lateral PanelLH Front Lateral Panel
-
870705008153 RH Front Lateral PanelRH Front Lateral Panel
-
940705008154 LH Rear Lateral Panel. Order 705012704 panel + 414916600 Nylon CapLH Rear Lateral Panel. Order 705012704 panel + 414916600 Nylon Cap
-
950705008155 RH Rear Lateral PanelRH Rear Lateral Panel
-
1000705008699 LH Central Lateral PanelLH Central Lateral Panel
-
1005250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
1020705008700 RH Central Lateral PanelRH Central Lateral Panel
-
1030293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1100705010603 Middle Side Panel LHMiddle Side Panel LH
-
1122250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
1150705010601 Middle Cage Cover LHMiddle Cage Cover LH
-
1160705010602 Middle Cage Cover RHMiddle Cage Cover RH
-
1200705010604 Middle Side Panel RHMiddle Side Panel RH
-
1400715003564 Rear Cage Cover Kit LHRear Cage Cover Kit LH
-
1400715003565 Rear Cage Cover Kit RHRear Cage Cover Kit RH
-
2020705009151 Central Skid PlateCentral Skid Plate
-
2030705010884 Connection PlateConnection Plate
-
2040705011292 Rear Skid PlateRear Skid Plate
-
2050705010422 Lateral Skid Plate. Package XTLateral Skid Plate. Package XT
-
2060705010587 Rear Side Skid Plate. Package XTRear Side Skid Plate. Package XT
-
2070705010588 Rear Central Skid PlateRear Central Skid Plate
-
5400705010426 LH Rear DeflectorLH Rear Deflector
-
5410292001663 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
5450705010427 RH Rear DeflectorRH Rear Deflector
-
5500715003038 Sport Roof Kit MAX. Package XTSport Roof Kit MAX. Package XT
-
6020232081414 Hex. Nut M8. Package XTHex. Nut M8. Package XT
-
6030234082410 Flat Washer 8 mm. Package XTFlat Washer 8 mm. Package XT
-
6040250000874 Torx Truss M8 X 25. Package XTTorx Truss M8 X 25. Package XT
-
6040250000874 Torx Truss M8 X 25. Package XTTorx Truss M8 X 25. Package XT
-
6050250000760 Torx Screw Truss Head PT.K50 X 20. Package XTTorx Screw Truss Head PT.K50 X 20. Package XT
-
6080705800131 Roof Anchor. Package XTRoof Anchor. Package XT
-
6090705800058 Roof Cap. Package XTRoof Cap. Package XT
