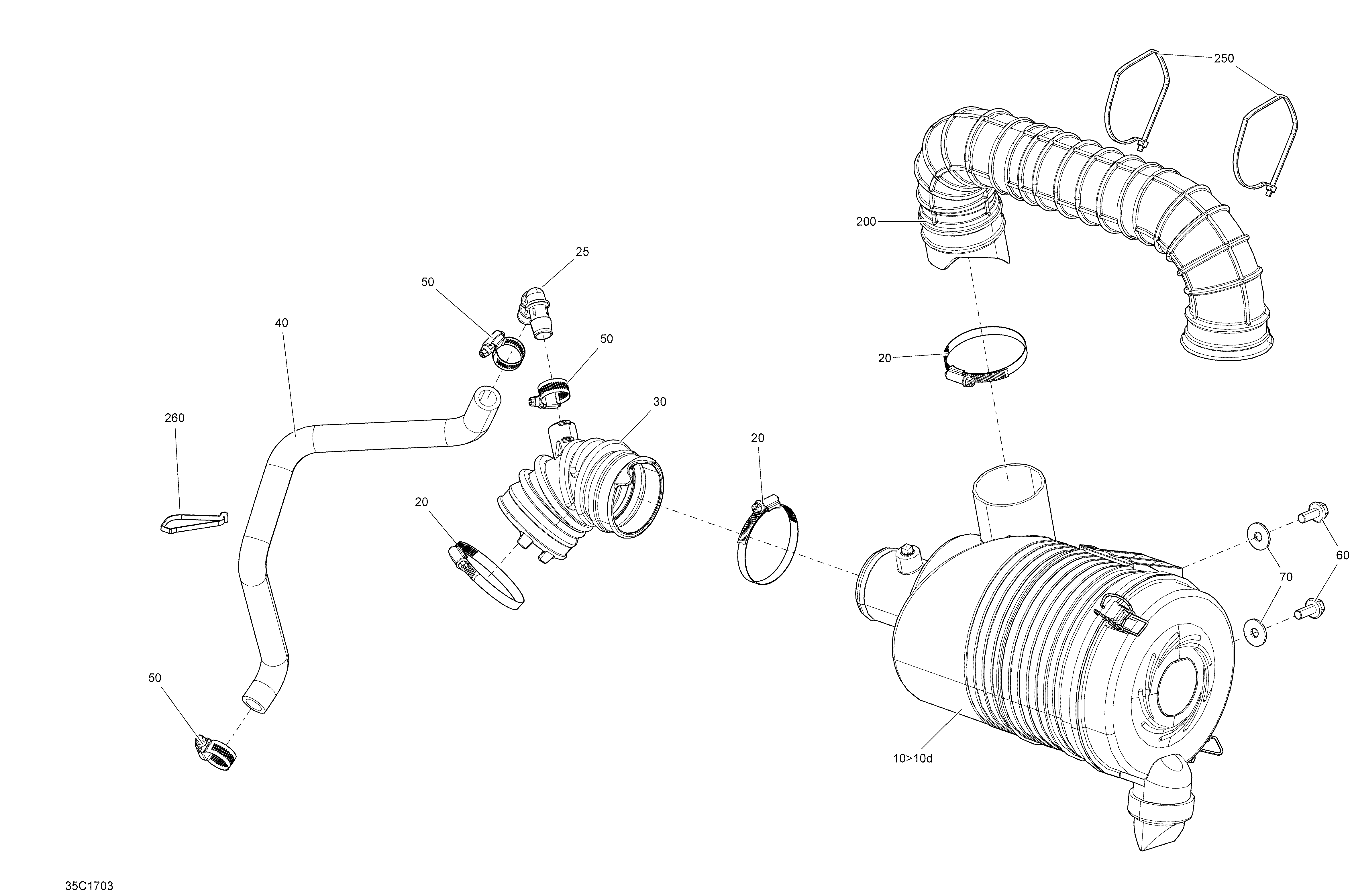

02- Air Intake - All Models для BRP Traxter MAX - 2017
-
№АртикулНазвание
-
10>10d707800614 Air Intake Ass'y. Includes 10 to 10dAir Intake Ass'y. Includes 10 to 10d
-
10a715900394 Air FilterAir Filter
-
10b715900397 Air Intake CoverAir Intake Cover
-
10c211500001 Pipe Plug Socket Head 1/8-27 NptPipe Plug Socket Head 1/8-27 Npt
-
10d715003114 Duck Bill ValveDuck Bill Valve
-
20293650091 Norma ClampNorma Clamp
-
25293710155 Elbow Fitting 90Elbow Fitting 90
-
30707800651 Engine Air Inlet TubeEngine Air Inlet Tube
-
40707800655 Crankcase Hose VentCrankcase Hose Vent
-
50293650173 Tridon Gear ClampTridon Gear Clamp
-
55293650173 Tridon Gear ClampTridon Gear Clamp
-
60207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
70234082410 Flat Washer 8 mmFlat Washer 8 mm
-
200707800650 Engine Air Inlet TubeEngine Air Inlet Tube
-
210293650091 Norma ClampNorma Clamp
-
250293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
260414115200 Tie-Rap 180 mmTie-Rap 180 mm
