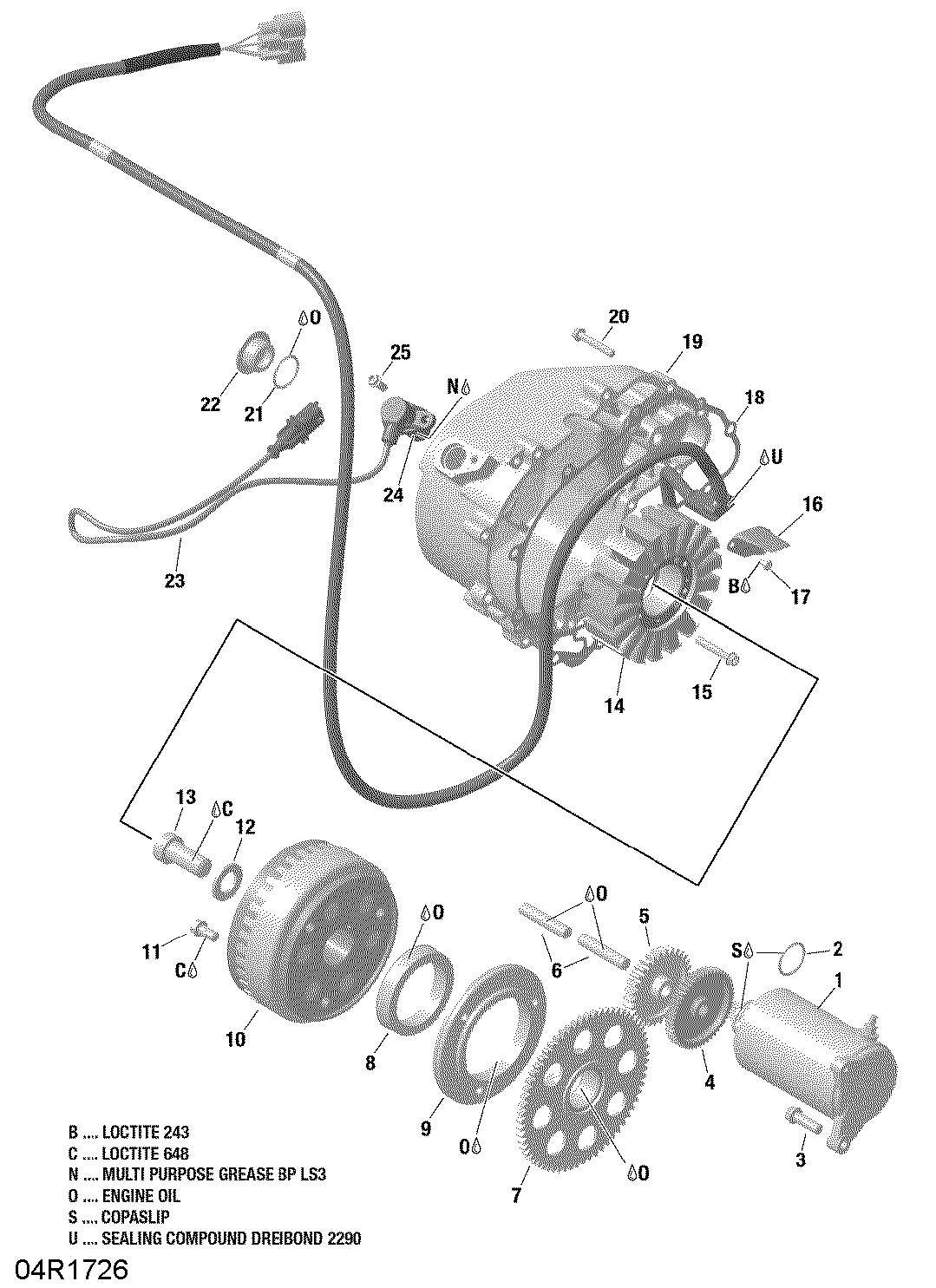

03- Magneto And Electric Starter - HD8 для BRP Traxter MAX - 2017
-
№АртикулНазвание
-
1>2420684562 Starter Ass'yStarter Ass'y
-
2420250140 O-Ring. Included in Gasket SetO-Ring. Included in Gasket Set
-
3420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
4420634741 Double GearDouble Gear
-
5420634605 Gear, 30 TeethGear, 30 Teeth
-
6420229302 Location PinLocation Pin
-
7420434235 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
8420659112 Sprag ClutchSprag Clutch
-
9420659261 Sprag Clutch HousingSprag Clutch Housing
-
10420685649 FlywheelFlywheel
-
11420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
12420627270 ShimShim
-
13420241549 Socket Head Screw M16 X 35Socket Head Screw M16 X 35
-
14420685632 Stator Plate, 650WStator Plate, 650W
-
15420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
16420251880 Cable Inner CoverCable Inner Cover
-
17420240195 Tapping Screw M4 X 8Tapping Screw M4 X 8
-
18420651201 GasketGasket
-
19420212220 Ignition CoverIgnition Cover
-
20420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
21420430782 O-RingO-Ring
-
22420241630 Screw PlugScrew Plug
-
23>24420966570 Crankshaft Position Sensor Ass'yCrankshaft Position Sensor Ass'y
-
24420431580 O-RingO-Ring
-
25420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
