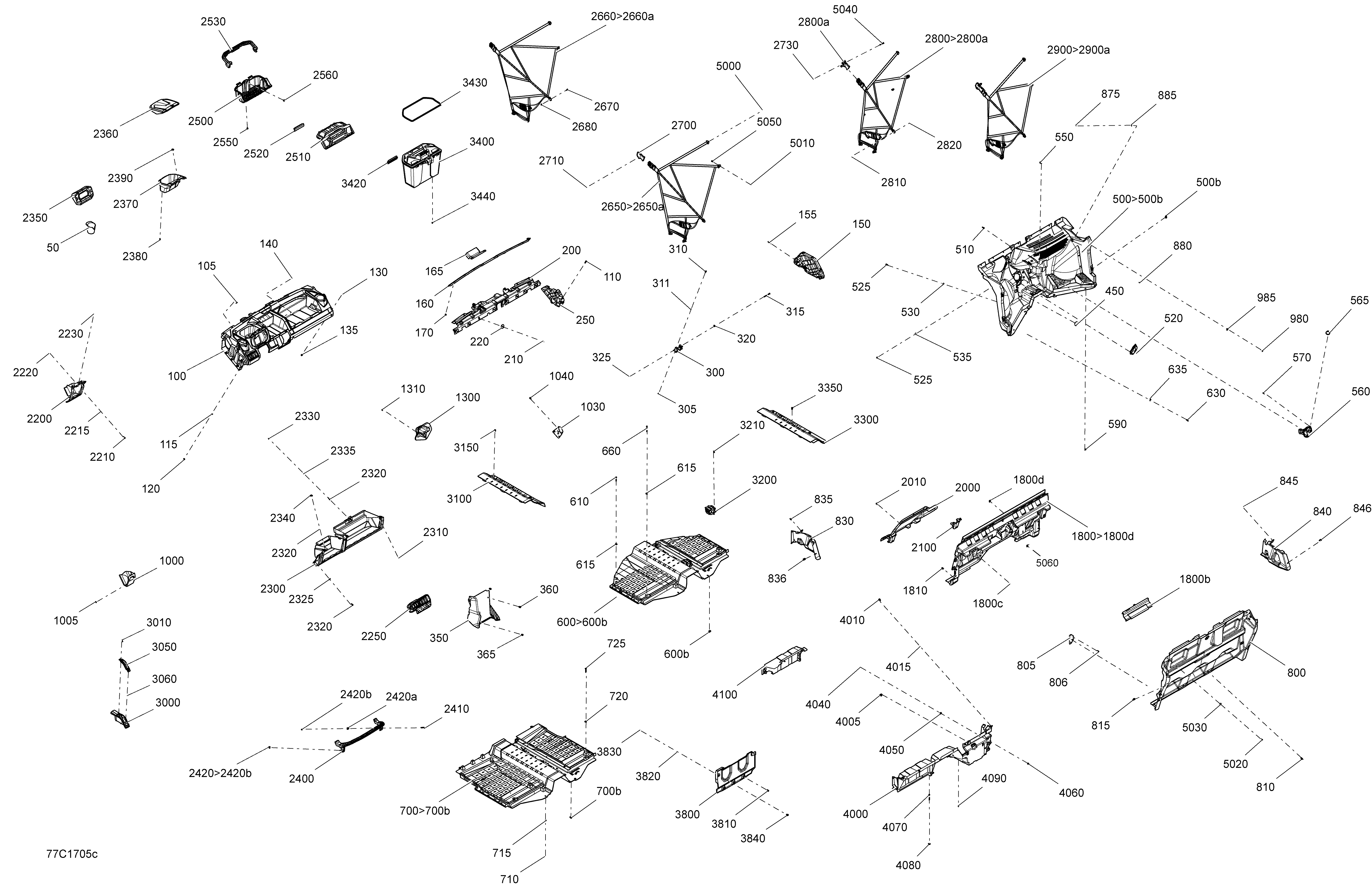

09- Cab Interior - All Models для BRP Traxter MAX - 2017
-
№АртикулНазвание
-
50707900288 Cup HolderCup Holder
-
100715004029 Dashboard KitDashboard Kit
-
105250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
110207563544 Screw H Flange S.Grip M6 X 35Screw H Flange S.Grip M6 X 35
-
115250000721 Torx ScrewTorx Screw
-
120293450274 InsertInsert
-
130250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
135233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
140250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
150707900249 Dash SupportDash Support
-
155207563544 Screw H Flange S.Grip M6 X 35Screw H Flange S.Grip M6 X 35
-
160707900411 Dash TrimDash Trim
-
165707900439 Fuse Box HolderFuse Box Holder
-
170517302785 ClipClip
-
200707900296 Upper Front DeflectorUpper Front Deflector
-
210250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
220705003841 Support PlateSupport Plate
-
250707900367 RH SupportRH Support
-
300707900402 ClampClamp
-
305293450274 InsertInsert
-
310207561646 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
311234061410 Flat Washer 6 mmFlat Washer 6 mm
-
315207068044 Screw Hex. M6 X 80Screw Hex. M6 X 80
-
320234062670 Flat Washer, StainlessFlat Washer, Stainless
-
325233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
350707900289 Front Bulkhead CoverFront Bulkhead Cover
-
360293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
365293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
450293250242 Rubber CoverRubber Cover
-
500>500b707900430 Front Bulkhead. Includes 500 to 500bFront Bulkhead. Includes 500 to 500b
-
500b250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
520707900408 DPS CoverDPS Cover
-
525250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
530233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
535234062670 Flat Washer, StainlessFlat Washer, Stainless
-
550291002744 Bumber CapBumber Cap
-
560707900390 RH Rubber CoverRH Rubber Cover
-
565293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
570293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
590293450274 InsertInsert
-
600>600b707900431 Floor. Includes 600 to 600bFloor. Includes 600 to 600b
-
600b250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
610250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
615250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
630250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
635250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
660235567084 Torx Screw Button HeadTorx Screw Button Head
-
700>700b707900464 Rear Floor Ass'y. Includes 700 to 700bRear Floor Ass'y. Includes 700 to 700b
-
700b250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
710234062670 Flat Washer, StainlessFlat Washer, Stainless
-
715250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
720250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
725250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
800715003774 Deflector Median KitDeflector Median Kit
-
805707900469 PlatePlate
-
806293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
810293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
815250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
830707900443 Lower Cover LHLower Cover LH
-
835293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
836250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
840707900444 Lower Cover RHLower Cover RH
-
845293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
846250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
875250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
880233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
885234062670 Flat Washer, StainlessFlat Washer, Stainless
-
980250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
985250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
1000707900252 DrawerDrawer
-
1005293300194 O-RingO-Ring
-
1030707900597 Steering Column DeflectorSteering Column Deflector
-
1040293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1300707900389 Exterior CoverExterior Cover
-
1310293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1800>1800d707900432 Rear Panel. Includes 1800 to 1800dRear Panel. Includes 1800 to 1800d
-
1800b707900357 Rear Service CoverRear Service Cover
-
1800c293830005 Rubber BumperRubber Bumper
-
1800d250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
1810293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2000707900326 Engine Service CoverEngine Service Cover
-
2010293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2100707900419 Support belt coverSupport belt cover
-
2200707900251 LH Lower DashLH Lower Dash
-
2210250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2215234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2220293450274 InsertInsert
-
2230250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2250707900320 Switches PanelSwitches Panel
-
2300707900250 RH Lower DashRH Lower Dash
-
2310250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2320250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2325234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2330293450274 InsertInsert
-
2335234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2340250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
2350707900285 Cluster Support. Package DPSCluster Support. Package DPS
-
2350707900358 Cluster Support. Package XTCluster Support. Package XT
-
2360707900225 Storage Cover. Package XTStorage Cover. Package XT
-
2370707900284 Storage Bin. Package XTStorage Bin. Package XT
-
2380241151640 Hex. Flanged Screw K50 X 16. Package XTHex. Flanged Screw K50 X 16. Package XT
-
2390705003264 Grommet. Package XTGrommet. Package XT
-
2400707900248 Passenger HandholdPassenger Handhold
-
2410250000648 Torx Screw M6 X 60Torx Screw M6 X 60
-
2420>2420b269500725 Nut Housing Ass'y. Includes 2420 to 2420bNut Housing Ass'y. Includes 2420 to 2420b
-
2420a269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
2420b232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
2500707900244 Glove Box BaseGlove Box Base
-
2510707900245 Glove Box CoverGlove Box Cover
-
2520269501945 ClipClip
-
2530707900567 HandleHandle
-
2550293830005 Rubber BumperRubber Bumper
-
2560293000120 CapCap
-
2650>2650a707900291 LH Front Safety Net. Includes 2650 to 2650aLH Front Safety Net. Includes 2650 to 2650a
-
2650a707900049 Upper LinkUpper Link
-
2660>2660a707900292 RH Front Safety Net. Includes 2660 to 2660aRH Front Safety Net. Includes 2660 to 2660a
-
2660a707900049 Upper LinkUpper Link
-
2670250000721 Torx ScrewTorx Screw
-
2680293450274 InsertInsert
-
2700707900592 Safety Net LinkSafety Net Link
-
2710250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2730293450274 InsertInsert
-
2800>2800a707900414 Rear Safety Net LH. Includes 2800 to 2800aRear Safety Net LH. Includes 2800 to 2800a
-
2800A707900365 Safety Net LinkSafety Net Link
-
2810250000721 Torx ScrewTorx Screw
-
2820293450274 InsertInsert
-
2900>2900a707900415 Rear Safety Net RH. Includes 2900 to 2900aRear Safety Net RH. Includes 2900 to 2900a
-
2900a707900365 Safety Net LinkSafety Net Link
-
3000707900608 Shifter GateShifter Gate
-
3010250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
3050707900506 Shifter Gate DeflectorShifter Gate Deflector
-
3060250100178 Push NutPush Nut
-
3100707900324 Floor CoverFloor Cover
-
3150293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3200707900325 Hose SupportHose Support
-
3210293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3300707900413 Floor CoverFloor Cover
-
3350293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3400715003314 Storage Box. Package XTStorage Box. Package XT
-
3420269501945 Clip. Package XTClip. Package XT
-
3430293250168 Gasket. Package XTGasket. Package XT
-
3440293830005 Rubber Bumper. Package XTRubber Bumper. Package XT
-
3800707900426 Rear PanelRear Panel
-
3810293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3820250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
3830250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3840250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
4000707900228 Rear Lower BulkheadRear Lower Bulkhead
-
4005705005156 Oval WasherOval Washer
-
4010293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
4015503192494 WasherWasher
-
4040250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4050234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4060293450274 InsertInsert
-
4070235567084 Torx Screw Button HeadTorx Screw Button Head
-
4080250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
4090250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4100707900282 Battery CoverBattery Cover
-
5000250000721 Torx ScrewTorx Screw
-
5010233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
5020293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
5030292001663 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
5040250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
5050250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5060293150089 Tuflok Plastic RivetTuflok Plastic Rivet
