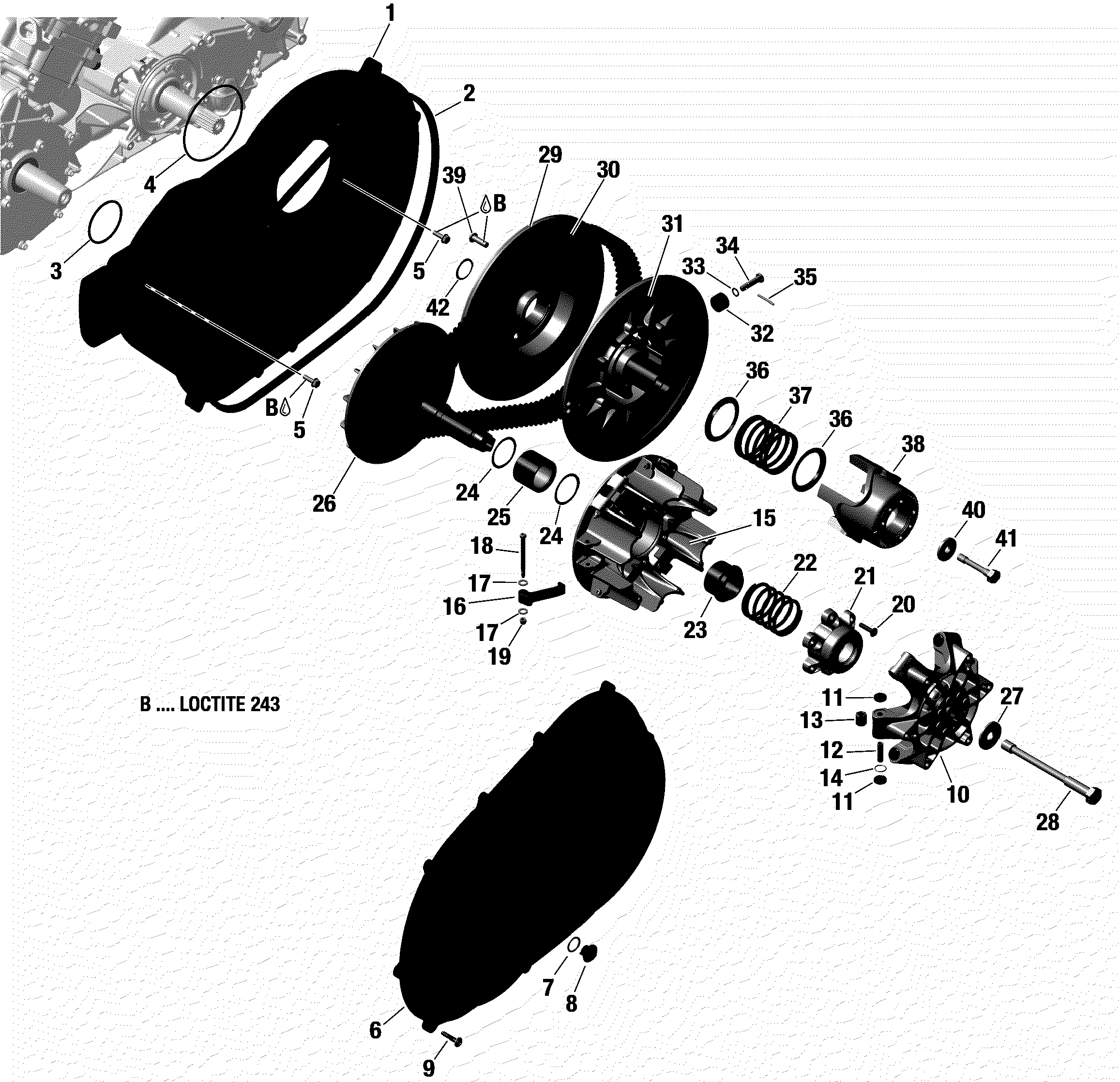

05- Transmission для BRP 2- Maverick Trail 1000 EFI - 2018
-
№АртикулНазвание
-
1420212600 CVT Air GuideCVT Air Guide
-
2420450400 GasketGasket
-
3420430408 O-RingO-Ring
-
4420450430 O-RingO-Ring
-
5420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
6420212502 Variator CoverVariator Cover
-
7420250050 O-RingO-Ring
-
8420441820 CapCap
-
9420441573 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
10420280727 Governor Cup Ass'yGovernor Cup Ass'y
-
11420281296 Slider Shoe SetSlider Shoe Set
-
12417223257 Roller AxleRoller Axle
-
13420229991 Roller ThrustRoller Thrust
-
14420230456 O-RingO-Ring
-
15420280608 Outer Half Ass'yOuter Half Ass'y
-
16>19420248684 Lever SetLever Set
-
20420841549 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
21420280616 Bearing CoverBearing Cover
-
22420638119 Compression SpringCompression Spring
-
23420427211 Spring RetainerSpring Retainer
-
24420427220 WasherWasher
-
25420832351 Needle Roller Bearing With SleevesNeedle Roller Bearing With Sleeves
-
26420280597 Inner Half Ass'yInner Half Ass'y
-
27420245690 WasherWasher
-
28420841161 Hexagonal Screw M14X 165Hexagonal Screw M14X 165
-
29420280635 Inner Half Ass'yInner Half Ass'y
-
30422280654 Drive BeltDrive Belt
-
31420280627 Outer Half Ass'yOuter Half Ass'y
-
32417127016 RollerRoller
-
33250200009 Lock Washer 8 mmLock Washer 8 mm
-
34417127294 Pivot StudPivot Stud
-
35420629200 Dowel PinDowel Pin
-
36417127116 Swivel AbutmentSwivel Abutment
-
37420638122 SpringSpring
-
38420280647 CamCam
-
39420441981 Binding Head Screw M8X25Binding Head Screw M8X25
-
40420427240 Collar WasherCollar Washer
-
41420441990 Hexagonal Screw M10X 61Hexagonal Screw M10X 61
-
42420647257 Distance RingDistance Ring
