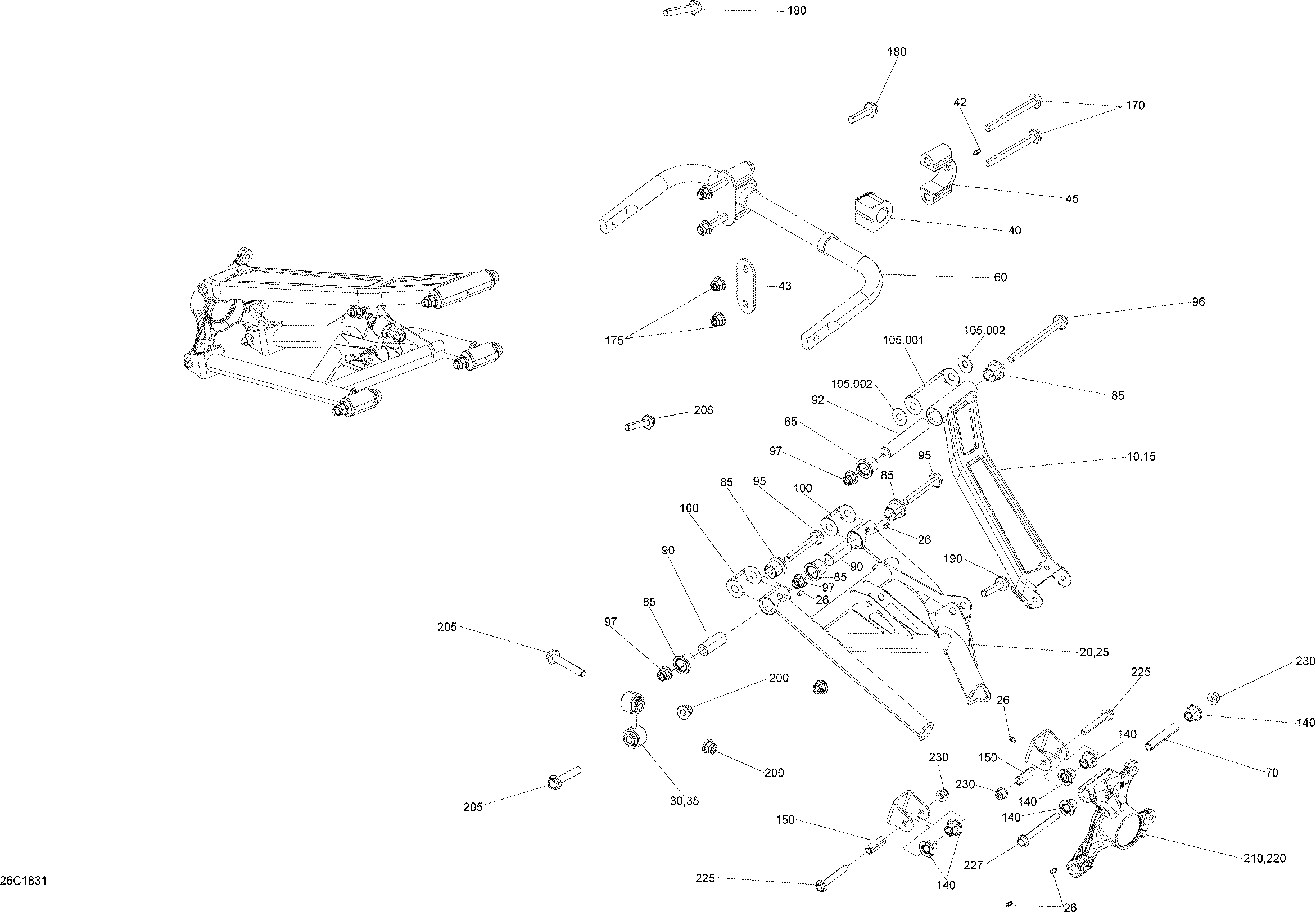

08- Rear Suspension Maverick Trail для BRP 2- Maverick Trail 1000 EFI - 2018
-
№АртикулНазвание
-
10706002696 LH Upper Rear Suspension ArmLH Upper Rear Suspension Arm
-
15706002697 RH Upper Rear Suspension ArmRH Upper Rear Suspension Arm
-
20706003201 LH Lower Suspension ArmLH Lower Suspension Arm
-
25706003202 RH Lower Suspension ArmRH Lower Suspension Arm
-
26408200700 Grease FittingGrease Fitting
-
30706003004 Swaybar Double LinkSwaybar Double Link
-
35706003003 Swaybar Double LinkSwaybar Double Link
-
40706002971 CushionCushion
-
42408200700 Grease FittingGrease Fitting
-
43706002977 Plate SupportPlate Support
-
45706002970 ClampClamp
-
60706002716 Sway bar Ass'ySway bar Ass'y
-
70706202197 Upper BushingUpper Bushing
-
85706201659 CushionCushion
-
90706202257 Interior BushingInterior Bushing
-
92706202863 Inner Sleeve M12Inner Sleeve M12
-
95250000859 Screw Flange M12 X 85Screw Flange M12 X 85
-
96250000861 Screw Flange M12 X 145Screw Flange M12 X 145
-
97233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
100706202300 Wear PlateWear Plate
-
105706203326 Wear PlateWear Plate
-
140706202088 CushionCushion
-
150703500875 Bushing KitBushing Kit
-
170250000860 Screw Flange M12 X 115Screw Flange M12 X 115
-
175233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
180250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
190250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
200233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
205250000858 Hexagonal Flanged Screw M12 X 70Hexagonal Flanged Screw M12 X 70
-
206250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
210706002809 Rear Left Machined KnuckleRear Left Machined Knuckle
-
220706002811 Rear Right Machined KnuckleRear Right Machined Knuckle
-
225207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
227230600046 Screw-Hex.Flange DIN.6921Screw-Hex.Flange DIN.6921
-
230233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
