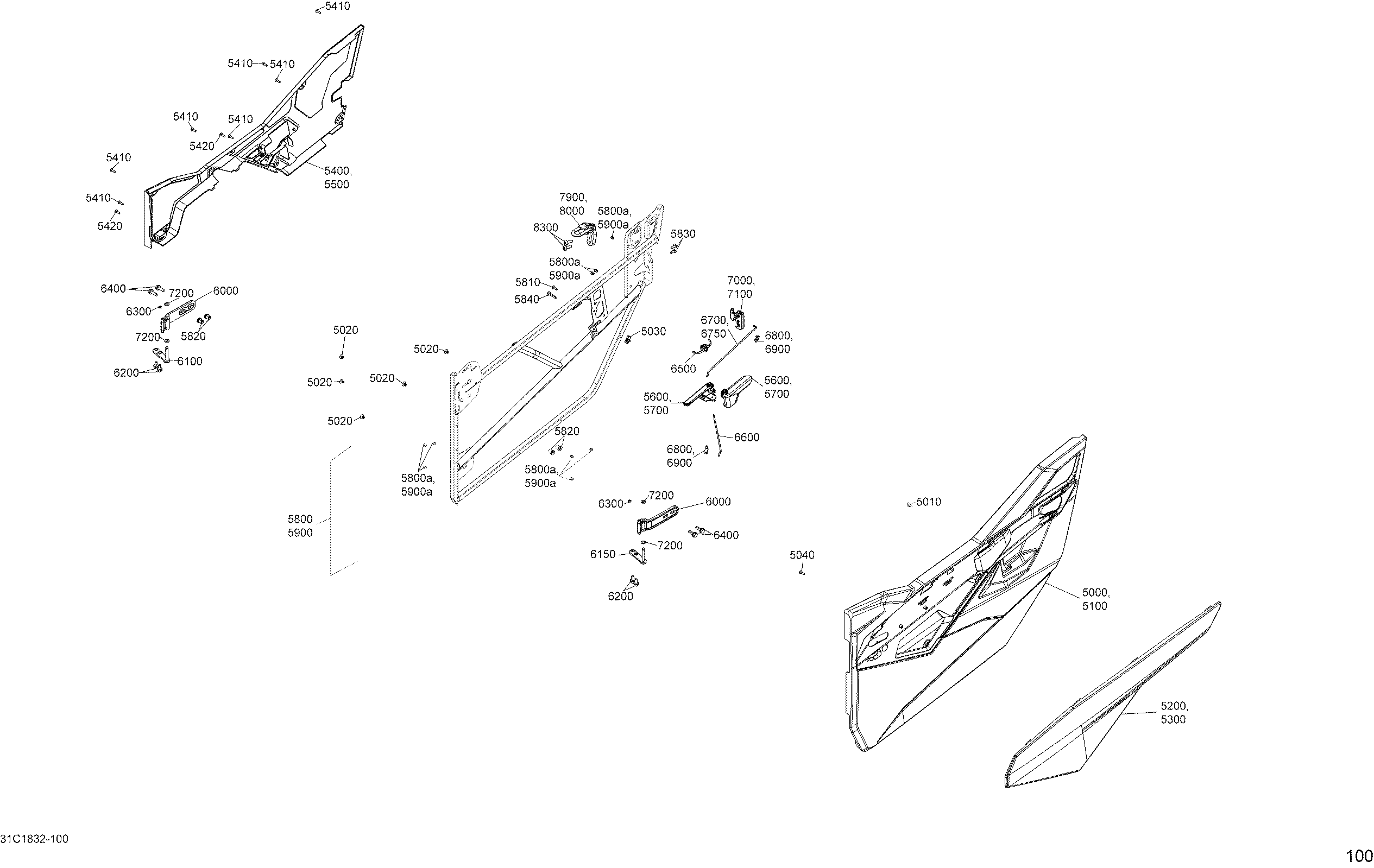

09 - BODY, Doors Maverick Trail - 1000 EFI для BRP 2- Maverick Trail 1000 EFI - 2018
-
№АртикулНазвание
-
5000705011479 LH Exterior Door PanelLH Exterior Door Panel
-
5010293830005 Rubber BumperRubber Bumper
-
5020293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
5030250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
5040250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
5100705011480 RH Exterior Door PanelRH Exterior Door Panel
-
5200705011481 White, LH Door Trim Panel. Package BaseWhite, LH Door Trim Panel. Package Base
-
5200705012419 Red, LH Door Trim Panel. DPS, Red ModelRed, LH Door Trim Panel. DPS, Red Model
-
5200705012421 Yellow, LH Door Trim Panel. DPS, Yellow ModelYellow, LH Door Trim Panel. DPS, Yellow Model
-
5200705012423 Camo, LH Door Trim Panel. DPS, Camo ModelCamo, LH Door Trim Panel. DPS, Camo Model
-
5300705011482 White, RH Door Trim Panel. Package BaseWhite, RH Door Trim Panel. Package Base
-
5300705012420 Red, RH Door Trim Panel. DPS, Red ModelRed, RH Door Trim Panel. DPS, Red Model
-
5300705012422 Yellow, RH Door Trim Panel. DPS, Yellow ModelYellow, RH Door Trim Panel. DPS, Yellow Model
-
5300705012424 Camo, RH Door Trim Panel. DPS, Camo ModelCamo, RH Door Trim Panel. DPS, Camo Model
-
5400715005003 LH Inner Door Panel AssyLH Inner Door Panel Assy
-
5410250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
5420250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
5500715005004 RH Inner Door Panel AssyRH Inner Door Panel Assy
-
5600705011585 LH Opening HandleLH Opening Handle
-
5700705011586 RH Opening HandleRH Opening Handle
-
5800705800303 LH Door Frame. Includes 5800 to 5800aLH Door Frame. Includes 5800 to 5800a
-
5800a390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
5810250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
5820293450307 Insert, Half Hex Body M8 x 1.25Insert, Half Hex Body M8 x 1.25
-
5830250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
5840250000541 Torx Screw M6 X 35Torx Screw M6 X 35
-
5900705800304 RH Door Frame. Includes 5900 to 5900aRH Door Frame. Includes 5900 to 5900a
-
5900a390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
6000705011628 Machined HingeMachined Hinge
-
6100705011629 Lower Hinge AjustementLower Hinge Ajustement
-
6150705012506 Upper Hinge AjustementUpper Hinge Ajustement
-
6200207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
6300705601030 CirclipCirclip
-
6400207582534 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
6500705011630 Handle SpringHandle Spring
-
6600705206132 Handle AxleHandle Axle
-
6700705206133 LH Locking RodLH Locking Rod
-
6750705206134 RH Locking RodRH Locking Rod
-
6800708300182 LH Tie Rod ClipLH Tie Rod Clip
-
6900708300202 RH Tie Rod ClipRH Tie Rod Clip
-
7000705012183 LH LatchLH Latch
-
7100705012184 RH LatchRH Latch
-
7200234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
7900705207027 LH Stricker SupportLH Stricker Support
-
8000705207028 RH Stricker SupportRH Stricker Support
-
8300250000745 Hex Torx Truss M8 X30Hex Torx Truss M8 X30
