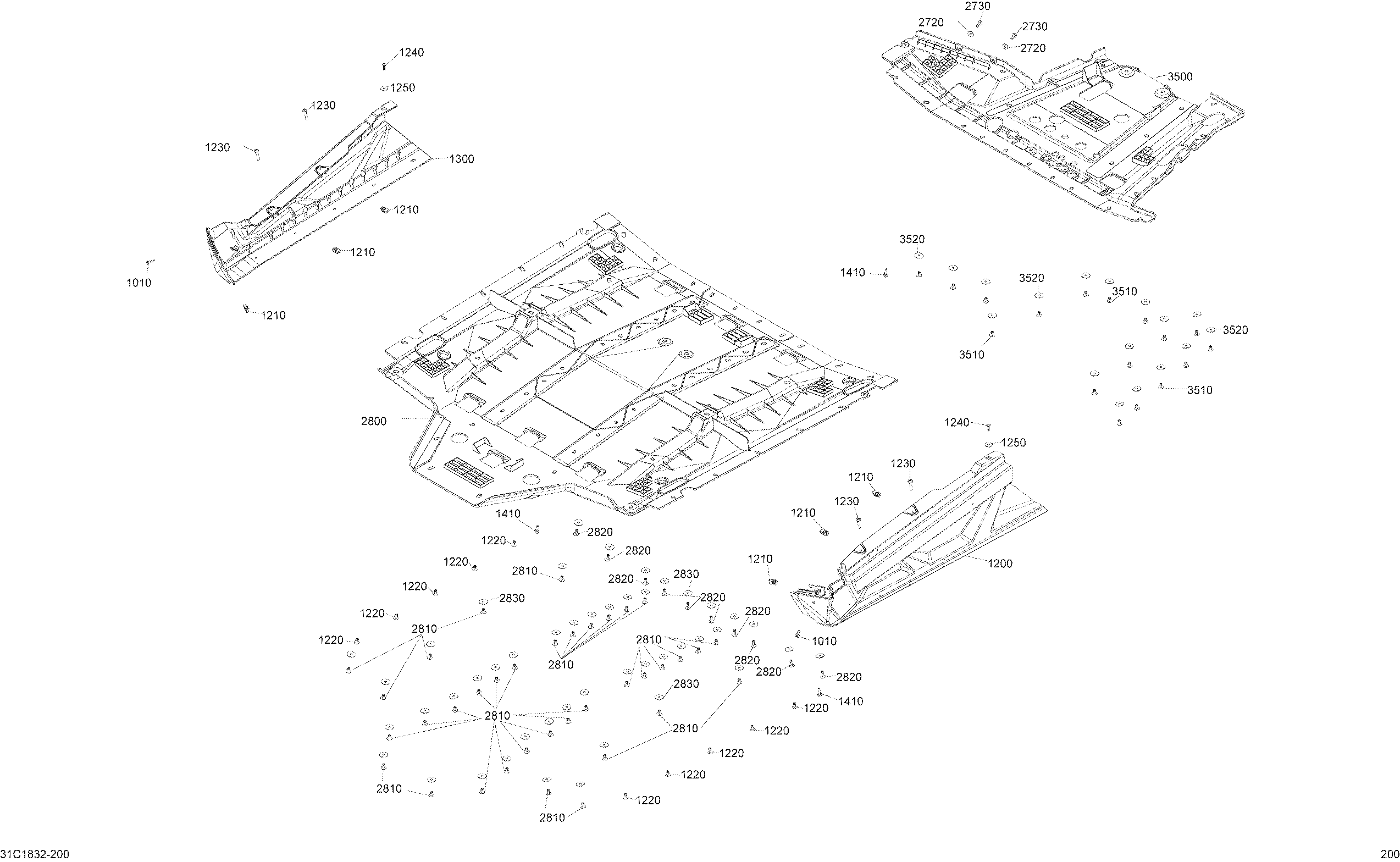

09 - BODY, Floor Maverick Trail - 1000 EFI для BRP 2- Maverick Trail 1000 EFI - 2018
-
№АртикулНазвание
-
1010250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1200705011331 Left Rocker PanelLeft Rocker Panel
-
1210250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
1220293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
1230250000867 Torx-truss M6 X 35Torx-truss M6 X 35
-
1240250000760 Torx Screw Truss Head K50 X 20Torx Screw Truss Head K50 X 20
-
1250250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
1300705011332 RH Rocker PanelRH Rocker Panel
-
1410207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2720234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2730250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2800705011427 Front Skid PlateFront Skid Plate
-
2810293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2820293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
2830250200029 Washer M6Washer M6
-
3500705011429 Rear Skid PlateRear Skid Plate
-
3510293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3520250200029 Washer M6Washer M6
