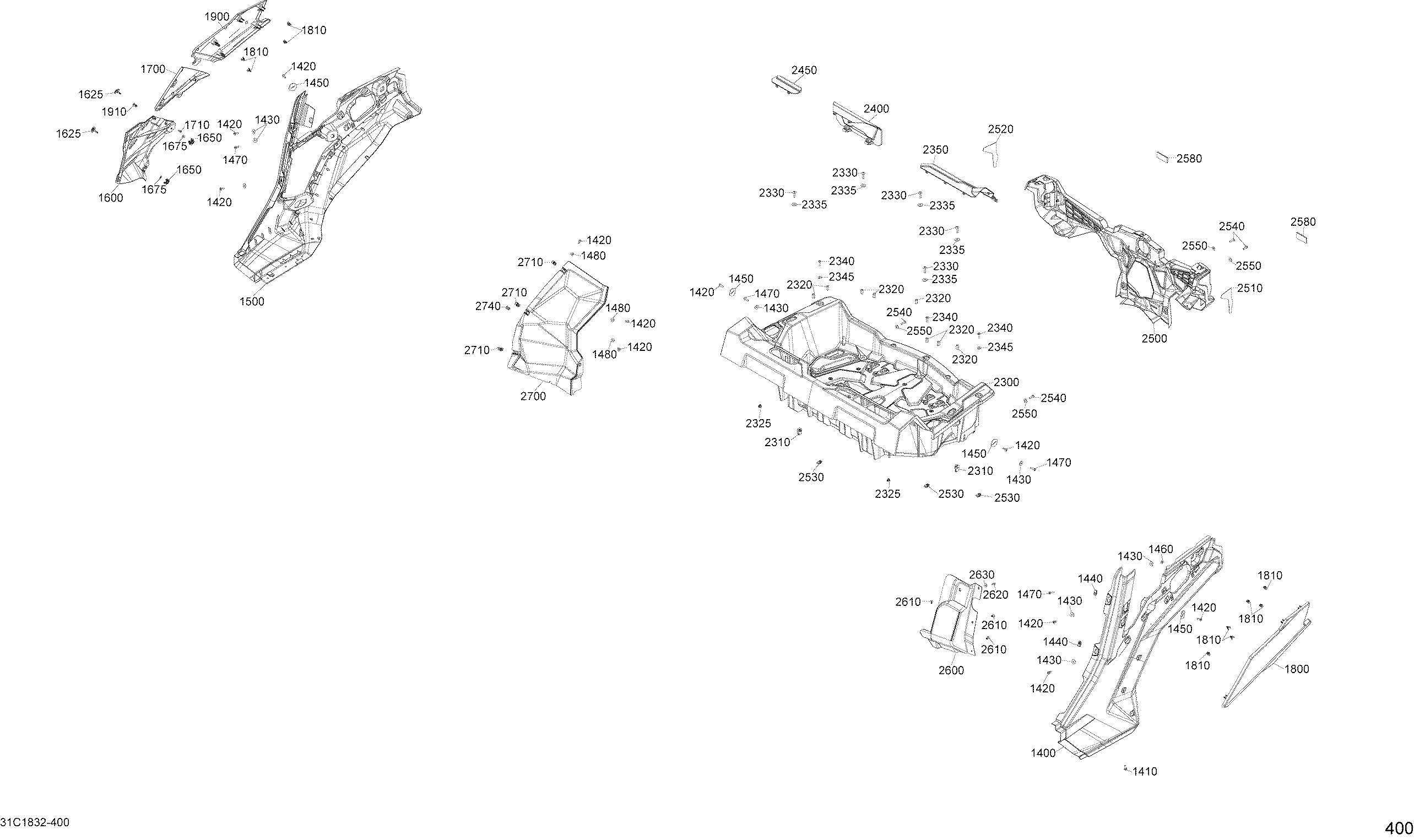

09 - BODY, Rear Maverick Trail - 1000 EFI для BRP 2- Maverick Trail 1000 EFI - 2018
-
№АртикулНазвание
-
1400705011335 LH Rear PannelLH Rear Pannel
-
1410207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1420250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1430250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
1440250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
1450705003841 Support PlateSupport Plate
-
1460233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
1470250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
1480234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1500705011336 RH Right PannelRH Right Pannel
-
1600705011338 Air Filter Acces DoorAir Filter Acces Door
-
1625708400278 Quater TurnQuater Turn
-
1650708400285 ClipClip
-
1675708400286 WasherWasher
-
1700705012621 White, Acces Panel Trim. Package BaseWhite, Acces Panel Trim. Package Base
-
1700705012623 Red, Acces Panel Trim. DPS, Red ModelRed, Acces Panel Trim. DPS, Red Model
-
1700705012624 Yellow, Acces Panel Trim. DPS, Yellow ModelYellow, Acces Panel Trim. DPS, Yellow Model
-
1700705012625 Camo, Acces Panel Trim. DPS, Camo ModelCamo, Acces Panel Trim. DPS, Camo Model
-
1710250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1800705011424 White, LH Rear Cargo Trim. Package BaseWhite, LH Rear Cargo Trim. Package Base
-
1800705012427 Red, LH Rear Cargo Trim. DPS, Red ModelRed, LH Rear Cargo Trim. DPS, Red Model
-
1800705012429 Yellow, LH Rear Cargo Trim. DPS, Yellow ModelYellow, LH Rear Cargo Trim. DPS, Yellow Model
-
1800705012431 Camo, LH Rear Cargo Trim. DPS, Camo ModelCamo, LH Rear Cargo Trim. DPS, Camo Model
-
1810517306478 ClipClip
-
1900705011425 White, RH Rear Cargo Trim. Package BaseWhite, RH Rear Cargo Trim. Package Base
-
1900705012428 Red, RH Rear Cargo Trim. DPS, Red ModelRed, RH Rear Cargo Trim. DPS, Red Model
-
1900705012430 Yellow, RH Rear Cargo Trim. DPS, Yellow ModelYellow, RH Rear Cargo Trim. DPS, Yellow Model
-
1900705012432 Camo, RH Rear Cargo Trim. DPS, Camo ModelCamo, RH Rear Cargo Trim. DPS, Camo Model
-
1910293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2300705011337 Rear BoxRear Box
-
2310250100177 Panel nut M6Panel nut M6
-
2320250100207 Hex. Coupling Nut M6Hex. Coupling Nut M6
-
2325233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2330250000745 Torx Truss M/S M8 X30Torx Truss M/S M8 X30
-
2335234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
2340250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
2345234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2350705011339 Cvt Air Inlet CoverCvt Air Inlet Cover
-
2400705011341 Liquid Acces CoverLiquid Acces Cover
-
2450705011340 Air Intake CoverAir Intake Cover
-
2500705011426 Rear FasciaRear Fascia
-
2510704906815 LH Rear ReflectorLH Rear Reflector
-
2520704906816 RH Rear ReflectorRH Rear Reflector
-
2530250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
2540250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
2550234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2580520001820 Red ReflectorRed Reflector
-
2600705011512 LH Rear Inner FenderLH Rear Inner Fender
-
2610293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2620250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2630250200025 Washer M5Washer M5
-
2700705011513 RH Rear Inner FenderRH Rear Inner Fender
-
2710250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
2740293150230 Tuflok Plastic RivetTuflok Plastic Rivet
