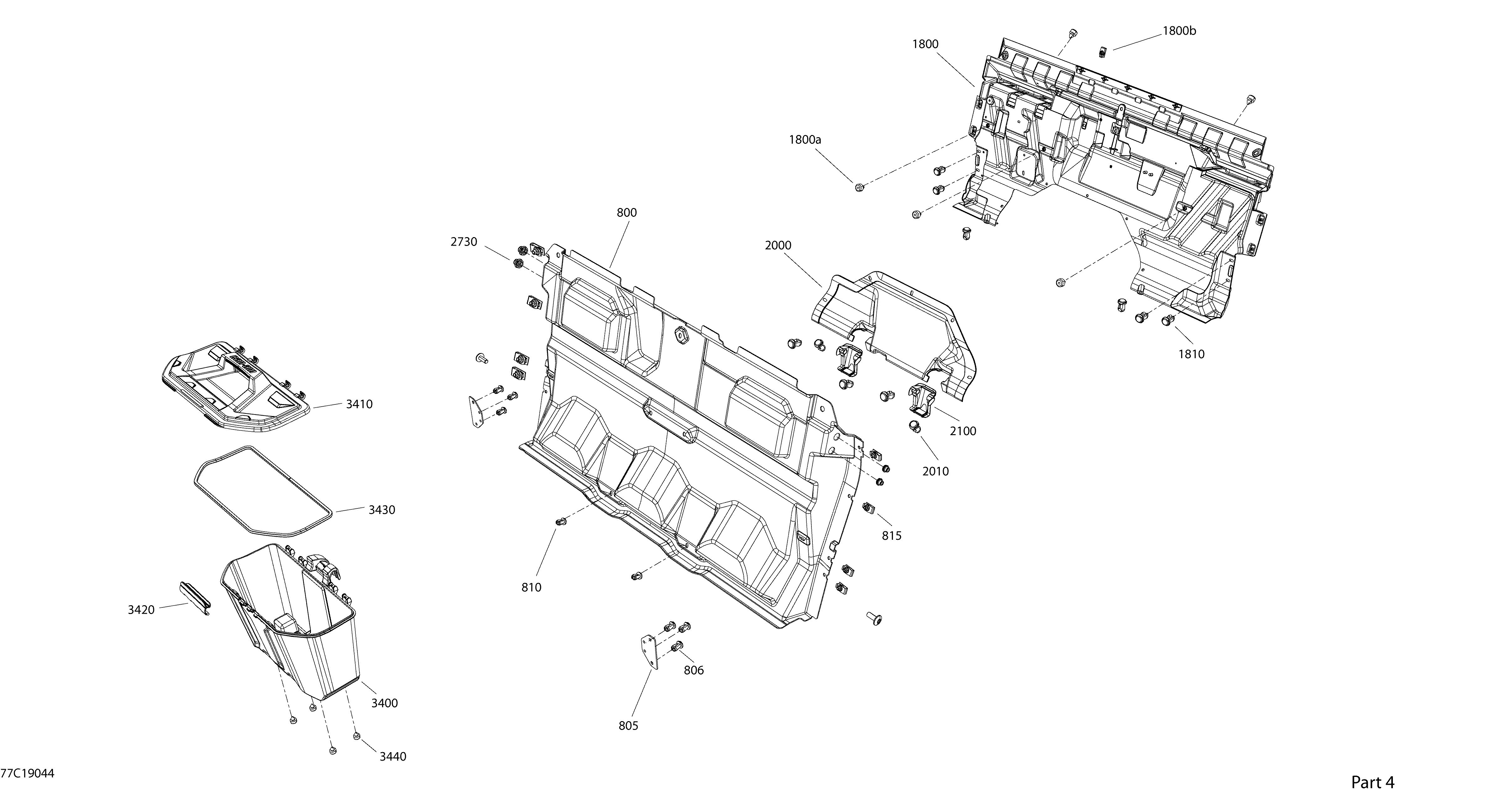

09- Cab Interior - XT CAB - Back Section для BRP 005 - Defender MAX HD10 - North America - 2019
-
№АртикулНазвание
-
800715003774 Deflector Median KitDeflector Median Kit
-
805707900469 PlatePlate
-
806293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
810293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
815250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1800707900635 Rear Upper Deflector Ass'y. Includes 1800 to 1800bRear Upper Deflector Ass'y. Includes 1800 to 1800b
-
1800a293830005 Rubber BumperRubber Bumper
-
1800b250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1810293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2000707900326 Engine Service CoverEngine Service Cover
-
2010293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2100707900419 Support belt coverSupport belt cover
-
2730250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
3400715003314 Storage BoxStorage Box
-
3410715003314 Storage BoxStorage Box
-
3420269501945 ClipClip
-
3430293250453 Neoprene SealNeoprene Seal
-
3440293830005 Rubber BumperRubber Bumper
