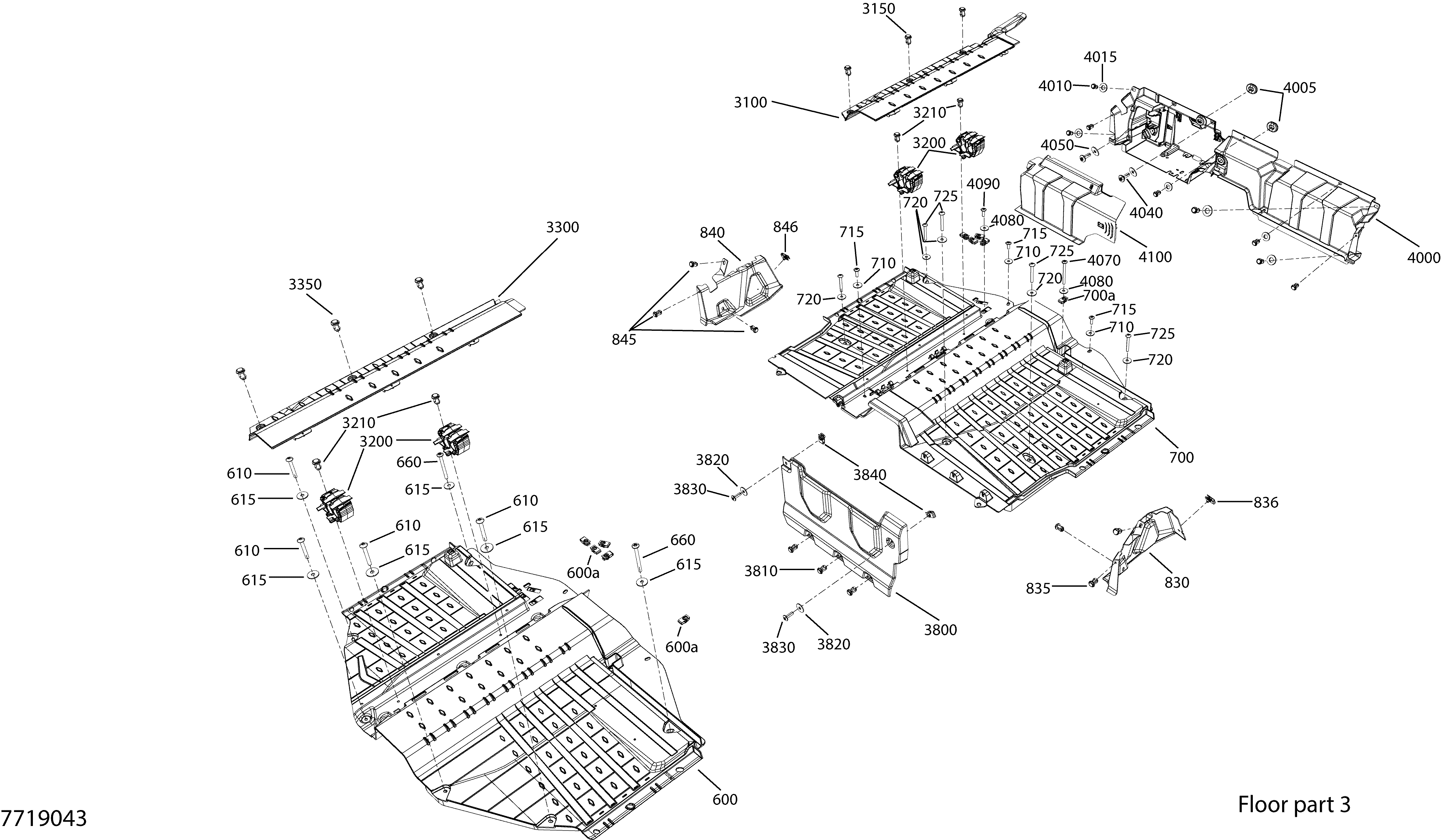

09- Cab Interior - XT CAB - Floor Section для BRP 005 - Defender MAX HD10 - North America - 2019
-
№АртикулНазвание
-
600707900431 Floor. Includes 600 to 600aFloor. Includes 600 to 600a
-
600a250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
610250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
615250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
660250000954 Torx Screw M6 X 70Torx Screw M6 X 70
-
700707900464 Rear Floor Ass'y. Includes 700 to 700aRear Floor Ass'y. Includes 700 to 700a
-
700a250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
710234062670 Flat Washer, StainlessFlat Washer, Stainless
-
715250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
720250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
725250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
830707900443 Lower Cover LHLower Cover LH
-
835293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
836250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
840707900444 Lower Cover RHLower Cover RH
-
845293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
846250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3100707900324 Floor CoverFloor Cover
-
3150293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3200707900325 Hose SupportHose Support
-
3210293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3300707900413 Floor CoverFloor Cover
-
3350293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3800707900426 Rear PanelRear Panel
-
3810293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3820250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
3830250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3840250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4000707900228 Rear Lower BulkheadRear Lower Bulkhead
-
4005705005156 Oval WasherOval Washer
-
4010293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4015503192494 WasherWasher
-
4040250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4050234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4070250000954 Torx Screw M6 X 70Torx Screw M6 X 70
-
4080250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
4090250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4100707900282 Battery CoverBattery Cover
