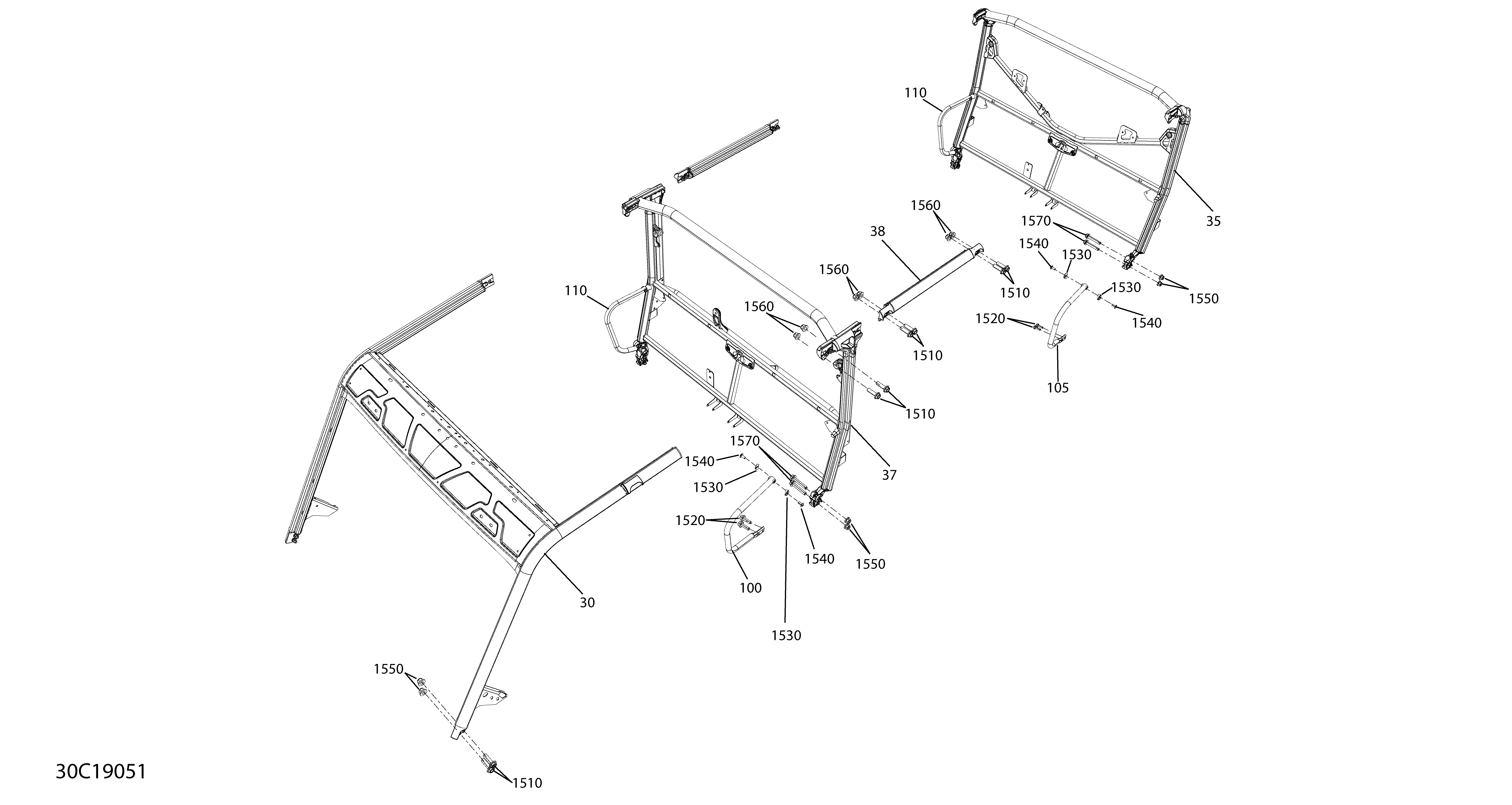

09- Frame - Upper Part - North America для BRP 005 - Defender MAX HD10 - North America - 2019
-
№АртикулНазвание
-
30715005059 Front Cage Profile Kit. Package CABFront Cage Profile Kit. Package CAB
-
30715005556 Black, Front Cage Kit. Except Package CABBlack, Front Cage Kit. Except Package CAB
-
35715003569 Black, Rear Cage Kit. Model BlackBlack, Rear Cage Kit. Model Black
-
37715003770 Black, Central Cage Kit. Model BlackBlack, Central Cage Kit. Model Black
-
38705205401 Black, Cage Extension. Model BlackBlack, Cage Extension. Model Black
-
100705204594 LH Protector Tube. Model BlackLH Protector Tube. Model Black
-
105705204590 LH Side Protect. Model BlackLH Side Protect. Model Black
-
110705204592 RH Protector Tube. Model BlackRH Protector Tube. Model Black
-
1510250000855 Hex. Flanged Screw M10 X 35Hex. Flanged Screw M10 X 35
-
1520207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
1530705202223 Offset WasherOffset Washer
-
1540250000789 Torx Truss M6X14Torx Truss M6X14
-
1550233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
1560233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
1570207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
