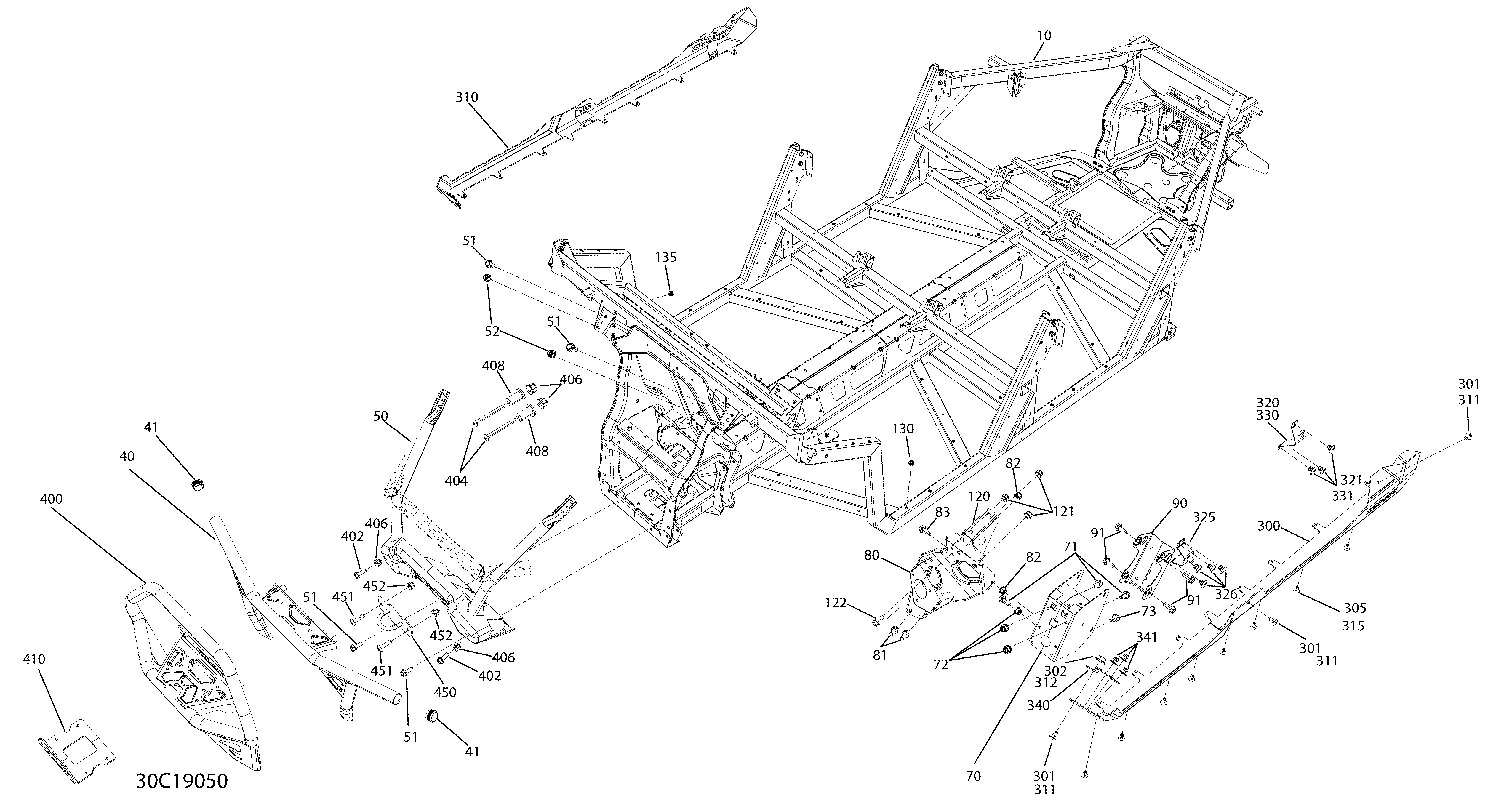

09- Frame - Lower Part - North America для BRP 005 - Defender MAX HD10 - North America - 2019
-
№АртикулНазвание
-
40705206536 XT Front Bumper. Packages CAB & XTXT Front Bumper. Packages CAB & XT
-
41705202455 Cap. Packages CAB & XTCap. Packages CAB & XT
-
50705203999 Front BumperFront Bumper
-
51207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
52233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
70705206316 PlatePlate
-
71207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
72233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
73207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
80715003570 DPS Support. Package BASEDPS Support. Package BASE
-
81207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
82233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
83207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
90715005429 Support Steering ColumnSupport Steering Column
-
91207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
120705205171 Shifting Module SupportShifting Module Support
-
121233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
122207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
130250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
135250100199 Insert Half Hex Body M6 x 1.0. Except Packages CAB & BASEInsert Half Hex Body M6 x 1.0. Except Packages CAB & BASE
-
300705207568 Hyper Silver, LH Guard Panel. Package Lone Star EditionHyper Silver, LH Guard Panel. Package Lone Star Edition
-
301250000746 Torx Truss Screw M8 X 16. Package Lone Star EditionTorx Truss Screw M8 X 16. Package Lone Star Edition
-
302233181414 Hex. Flanged Nut M8. Package Lone Star EditionHex. Flanged Nut M8. Package Lone Star Edition
-
305293150108 Pop Rivet 3/16”. Package Lone Star EditionPop Rivet 3/16”. Package Lone Star Edition
-
310705207569 Hyper Silver, RH Guard Panel. Package Lone Star EditionHyper Silver, RH Guard Panel. Package Lone Star Edition
-
311250000746 Torx Truss Screw M8 X 16. Package Lone Star EditionTorx Truss Screw M8 X 16. Package Lone Star Edition
-
312233181414 Hex. Flanged Nut M8. Package Lone Star EditionHex. Flanged Nut M8. Package Lone Star Edition
-
315293150108 Pop Rivet 3/16”. Package Lone Star EditionPop Rivet 3/16”. Package Lone Star Edition
-
320705206342 LH Rock Slider Support. Package Lone Star EditionLH Rock Slider Support. Package Lone Star Edition
-
321293150104 Pop Rivet 3/16''. Package Lone Star EditionPop Rivet 3/16''. Package Lone Star Edition
-
325705207220 Support Guard. Package Lone Star EditionSupport Guard. Package Lone Star Edition
-
326293150104 Pop Rivet 3/16''. Package Lone Star EditionPop Rivet 3/16''. Package Lone Star Edition
-
330705206343 RH Rock Slider Support. Package Lone Star EditionRH Rock Slider Support. Package Lone Star Edition
-
331293150104 Pop Rivet 3/16''. Package Lone Star EditionPop Rivet 3/16''. Package Lone Star Edition
-
340705206382 Rock Slider Front Support. Package Lone Star EditionRock Slider Front Support. Package Lone Star Edition
-
341293150104 Pop Rivet 3/16''. Package Lone Star EditionPop Rivet 3/16''. Package Lone Star Edition
-
400715004405 XMR Front Bumper . Package Lone Star EditionXMR Front Bumper . Package Lone Star Edition
