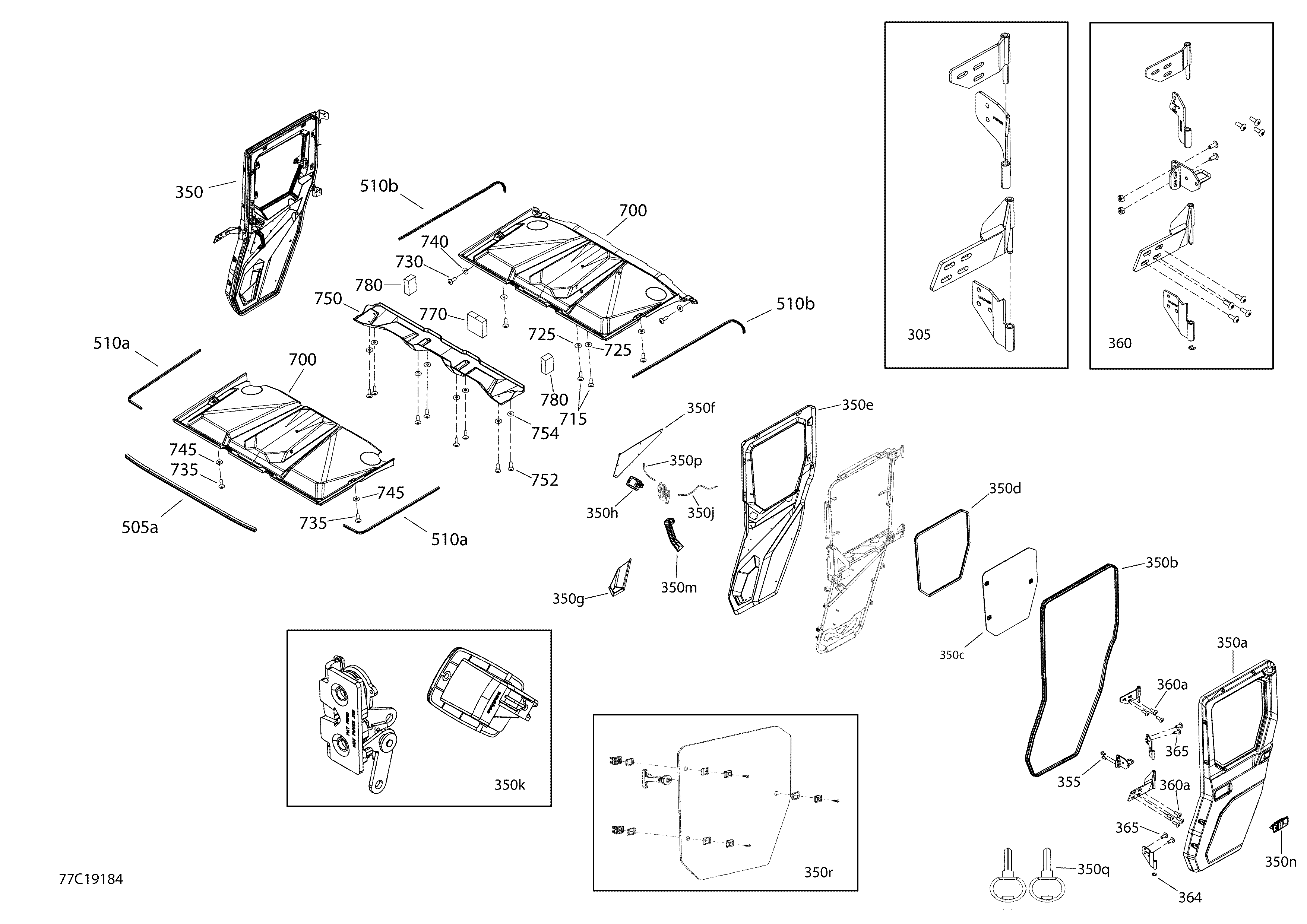

09- Enclosure Cab - HD10 - XT CAB - North America - Rear Doors & Roof Section для BRP 005 - Defender MAX HD10 - North America - 2019
-
№АртикулНазвание
-
350705800338 LH Rear Door Rigid Ass'y. Includes 350 to 350sLH Rear Door Rigid Ass'y. Includes 350 to 350s
-
350a705800295 LH Door Outer PanelLH Door Outer Panel
-
350b705800289 Seal 705800290 - 5000 MMSeal 705800290 - 5000 MM
-
350c705800233 Sub-Ass'y, Window LHSub-Ass'y, Window LH
-
350d705800297 Seal 705800298 - 2200 MMSeal 705800298 - 2200 MM
-
350e705800235 Routed Inner Door LHRouted Inner Door LH
-
350f705800237 Interior Color Panel LHInterior Color Panel LH
-
350g705800249 Rear Door Pocket LHRear Door Pocket LH
-
350h703501002 LH Interior Latch KitLH Interior Latch Kit
-
350j705800241 Cable Ass', Exterior LatchCable Ass', Exterior Latch
-
350k703501002 LH Interior Latch KitLH Interior Latch Kit
-
350m705800243 Interior Handle LHInterior Handle LH
-
350n705800015 Exterior Paddle LatchExterior Paddle Latch
-
350p705800242 Cable Ass'y, Interior LatchCable Ass'y, Interior Latch
-
350q705800184 Key SetKey Set
-
350r703500983 Window Hardware KitWindow Hardware Kit
-
355250000953 Torx Truss M/S M8 X 20Torx Truss M/S M8 X 20
-
360705800356 LH Hinges And Strikers Kit. Includes 360 to 360aLH Hinges And Strikers Kit. Includes 360 to 360a
-
360a250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
305703500917 LH Hinge KitLH Hinge Kit
-
364293370125 Retaining RingRetaining Ring
-
365250000953 Torx Truss M/S M8 X 20Torx Truss M/S M8 X 20
-
350705800339 RH Rear Door Rigid Ass'y. Includes 450 to 450nRH Rear Door Rigid Ass'y. Includes 450 to 450n
-
350a705800296 RH Door Outer PanelRH Door Outer Panel
-
350b705800289 Seal 705800290 - 5000 MMSeal 705800290 - 5000 MM
-
350c705800234 Sub-Ass', Window RHSub-Ass', Window RH
-
350d705800297 Seal 705800298 - 2200 MMSeal 705800298 - 2200 MM
-
350e705800236 Routed Inner Door RhRouted Inner Door Rh
-
350f705800238 Interior Color Panel DRInterior Color Panel DR
-
350g705800250 Rear Door Pocket RHRear Door Pocket RH
-
350h703501003 RH Interior Latch KitRH Interior Latch Kit
-
350j705800241 Cable Ass', Exterior LatchCable Ass', Exterior Latch
-
350k703501003 RH Interior Latch KitRH Interior Latch Kit
-
350m705800244 Interior Handle RHInterior Handle RH
-
350n705800015 Exterior Paddle LatchExterior Paddle Latch
-
350p705800242 Cable Ass'y, Interior LatchCable Ass'y, Interior Latch
-
350q705800184 Key SetKey Set
-
350r703500983 Window Hardware KitWindow Hardware Kit
-
355250000953 Torx Truss M/S M8 X 20Torx Truss M/S M8 X 20
-
360705800357 Hinges and Strikers Kit RH. Includes 460 to 460eHinges and Strikers Kit RH. Includes 460 to 460e
-
360a250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
305703500918 RH Hinge KitRH Hinge Kit
-
364293370125 Retaining RingRetaining Ring
-
365250000953 Torx Truss M/S M8 X 20Torx Truss M/S M8 X 20
-
505a293250361 GasketGasket
-
510a293250393 ExtrusionExtrusion
-
520a293250393 ExtrusionExtrusion
-
700715003582 Max Roof Liner Ass'yMax Roof Liner Ass'y
-
715250000759 Torx-Truss Pt K40 X 16Torx-Truss Pt K40 X 16
-
725250200025 Washer M5Washer M5
-
730250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
735250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
740234062670 Flat Washer, StainlessFlat Washer, Stainless
-
745234062670 Flat Washer, StainlessFlat Washer, Stainless
-
750705800132 Roof Liner SupportRoof Liner Support
-
752250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
754234062670 Flat Washer, StainlessFlat Washer, Stainless
-
770705800221 Roof Liner SpacerRoof Liner Spacer
-
780705800255 Roof Liner SpacerRoof Liner Spacer
